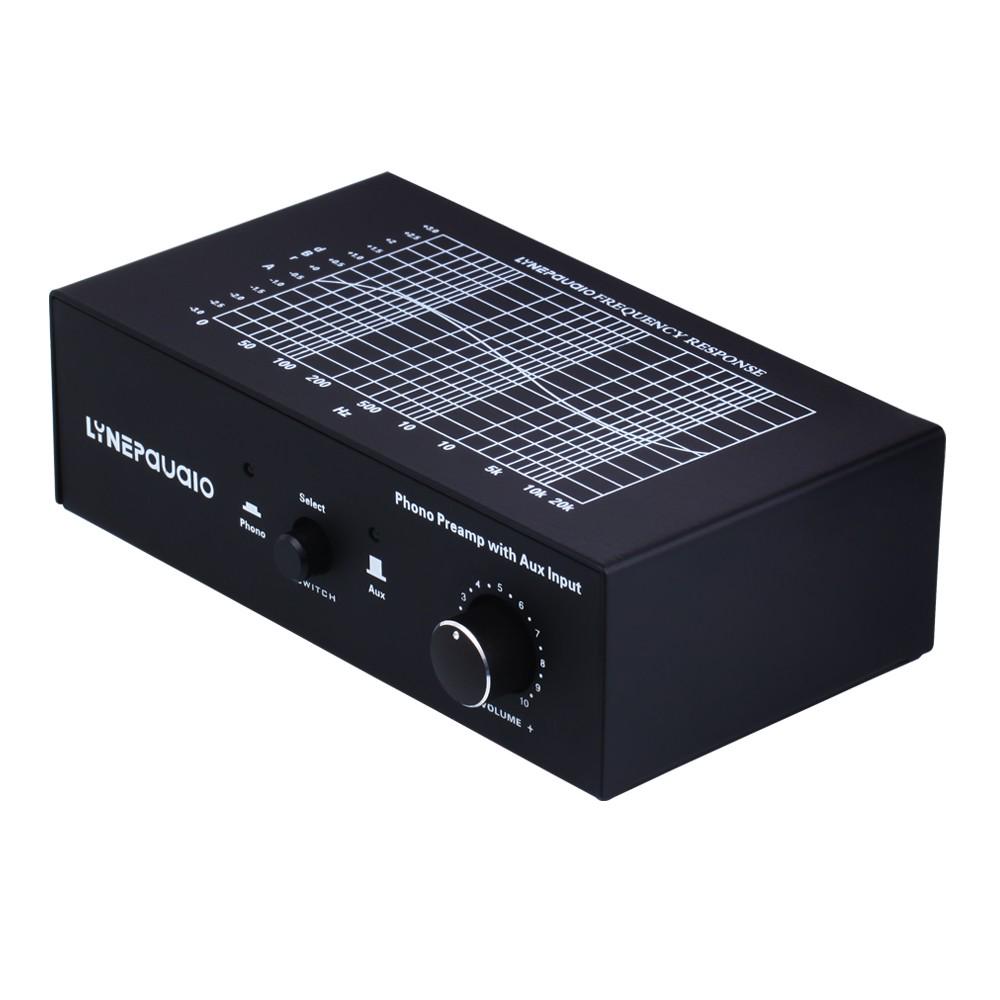

Pre-amplifier adds phonograph functionality to any amplifier or receiver
Pre-phonograph signal amplifier with aux input and volume control, and AUX is with
The Phono preamp adds a phonograph function to any amplifier or receiver with standby AUX / CD / DVD audio line level input.
It can also be used to direct the disc into a mixer or a computer sound card.
With its accurate RIAA balance and 80 dB S / N ratio, the product can also be used to input the turntable directly into the sound system of the mixer or a computer. To switch
Aux input replace stereo or computer use, eliminating the need for connect and
Disconnect the source signal as well as the connection parts of the product.
Easily improve the sound quality of the preamp or exceed the sound quality of the phonograph preamp built in a high-quality stereo component.
Product configuration switch function selects AUX input instead of stereo or AUX input port occupied on the computer.
There is no need to connect or disconnect a shared input signal source from the product.
The output level control is very useful to the sound card and ensures the elimination
From the largest signal difference between the switched signal sources.
High quality RIAA phonograph preamp, for use with dynamic magnetic type jukebox.
Accurate and stable integrated circuit design.
Gold-plated main input and output connection RCA port, reliable performance.
Stylish, sturdy metal case increases electrical noise resistance.
The output level control allows the volume to be adjusted to receive signals from other sources.
Specification
Distortion ratio: 0.06% (max).
The frequency response is: +/- 0.5dB, 20Hz-20 kHz.
Phonograph input impedance: Phono: 47 K ohm-200pFnominal.
Line input impedance: AUXL: 10 K ohm.
Output impedance: 200 ohm.
Channel separation: 50 dB.
Voice: 40dB (Phono) random signal source.
Phono sensitivity: 3.3 MV.
Output: 300 MV.
SNR: 85 dB.
Power supply: DC 12 V 1A.
Net weight: 329g.
Weight after packaging: 580g.
Product size: 135mm length x 75mm width x 45mm height.
Packaging: 200 mm length x 180 mm width x 55 mm height.
Package
1 X prephonograph signal amplifier with aux input and volume control.
1 X 110V-240V DC12V power supply (line length is100CMN),
1 X stereo RCA to RCA wire gold-plated interface (wire length is 50CMN),
1 X 3.5mm stereo RCA wire plated interface (wire length is 20 cm).
