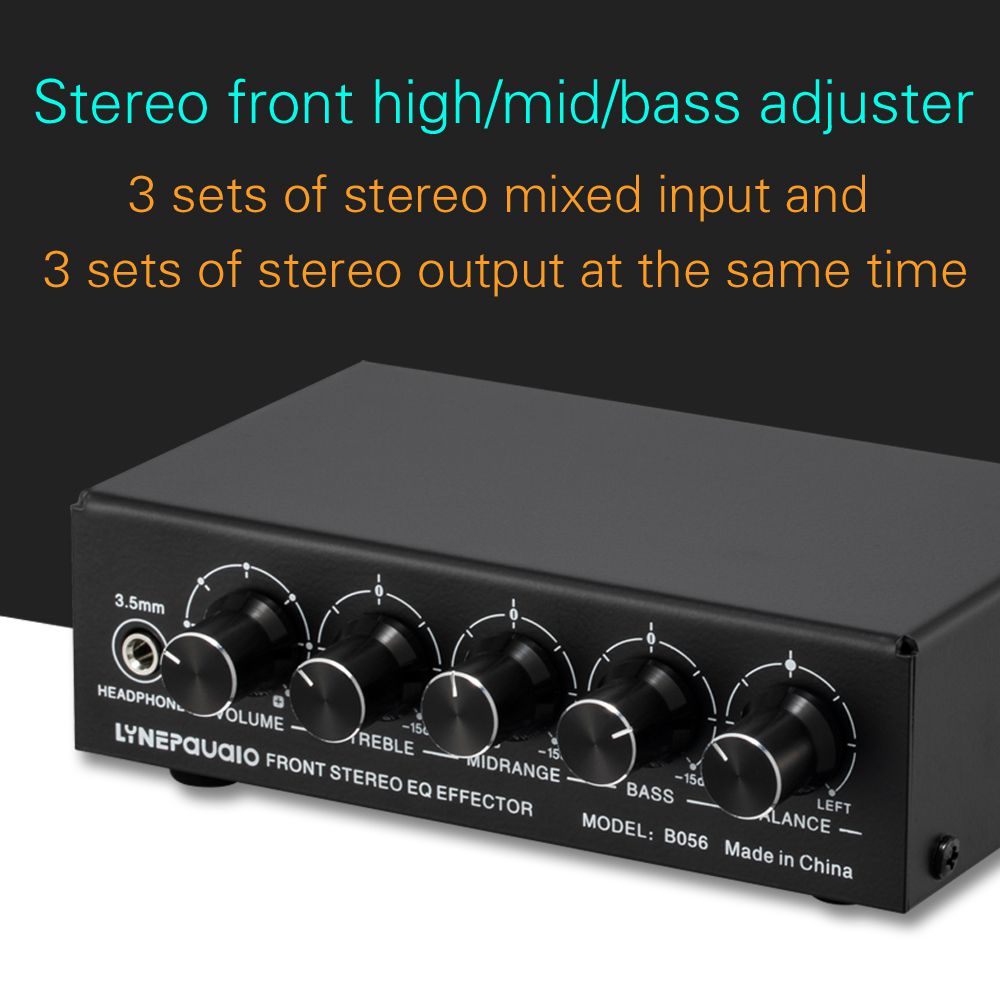

product presentation

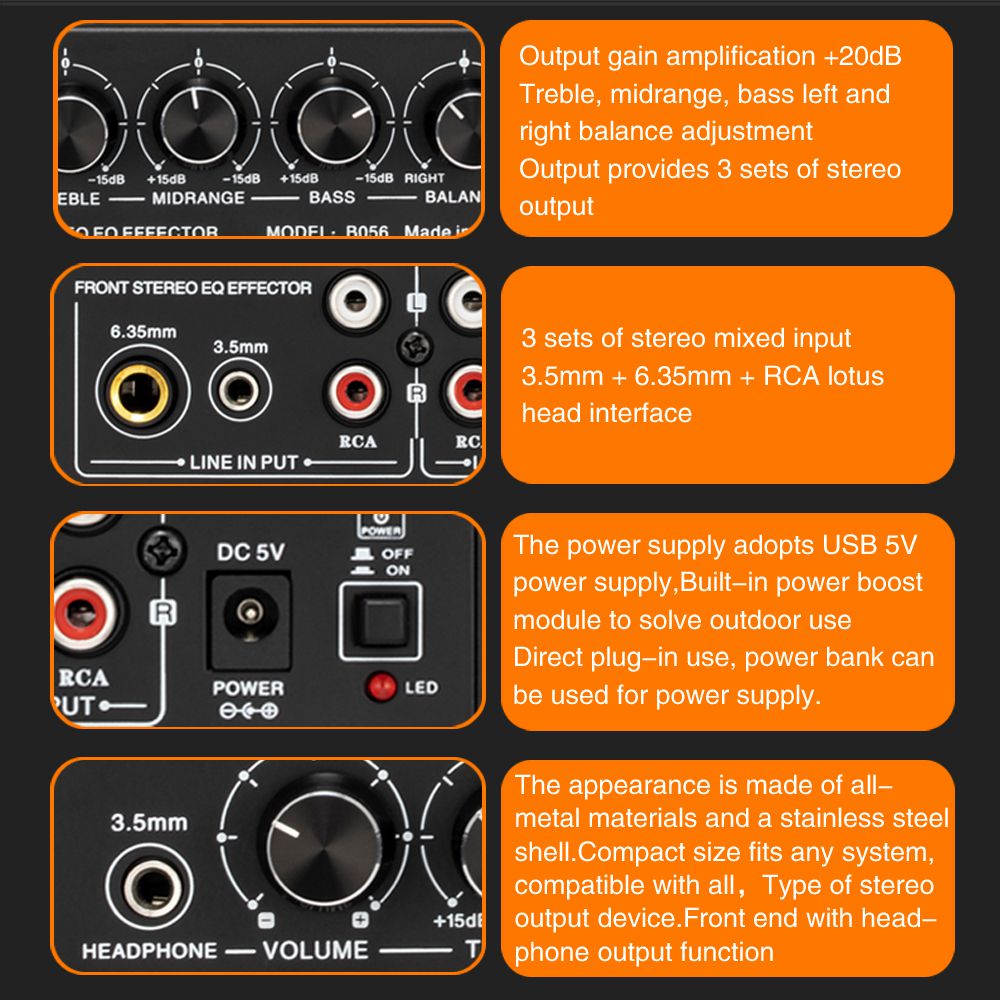

1. sound adjustment: support high/medium/bass EQ adjustment, high/medium/bass can enhance +15dB and attenuation -15dB adjustment, support left and right channel balance adjustment, suitable for some need to adjust the tone of equipment, using compact and thin desktop mini design, compact size, compatible with any equipment

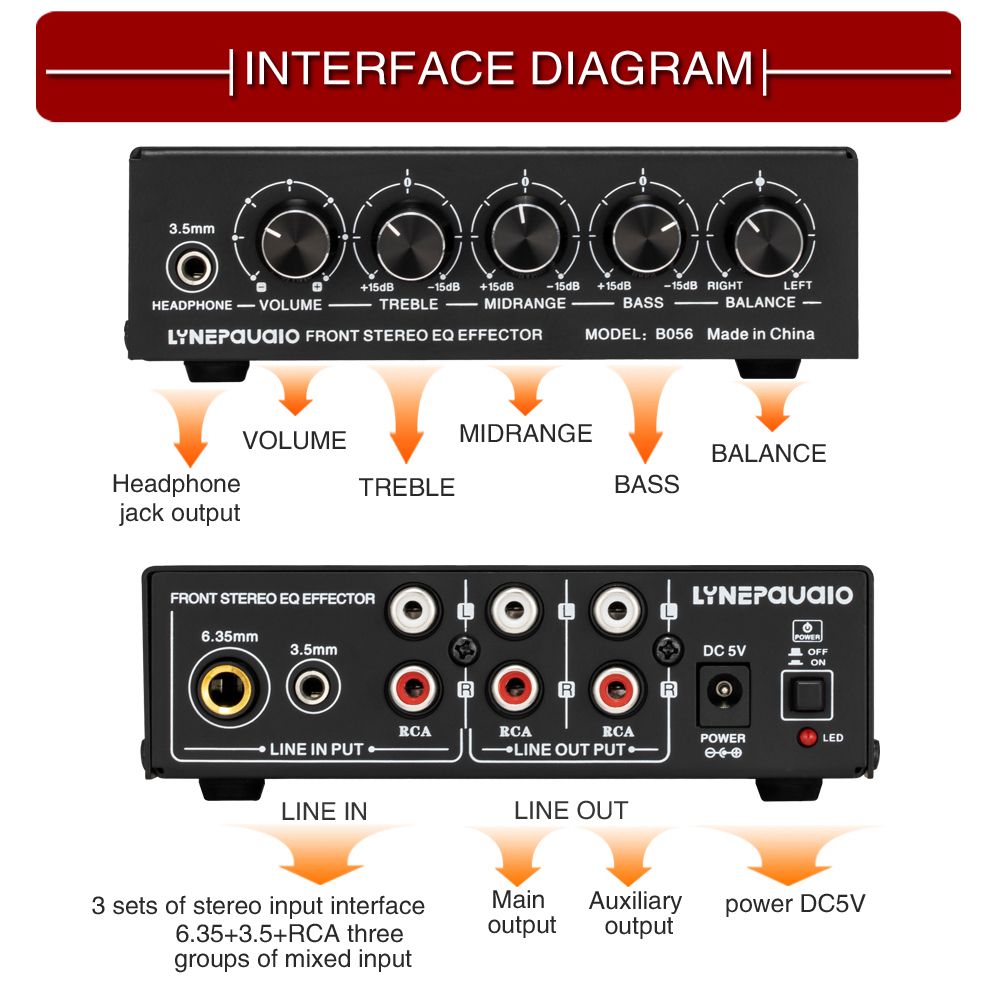

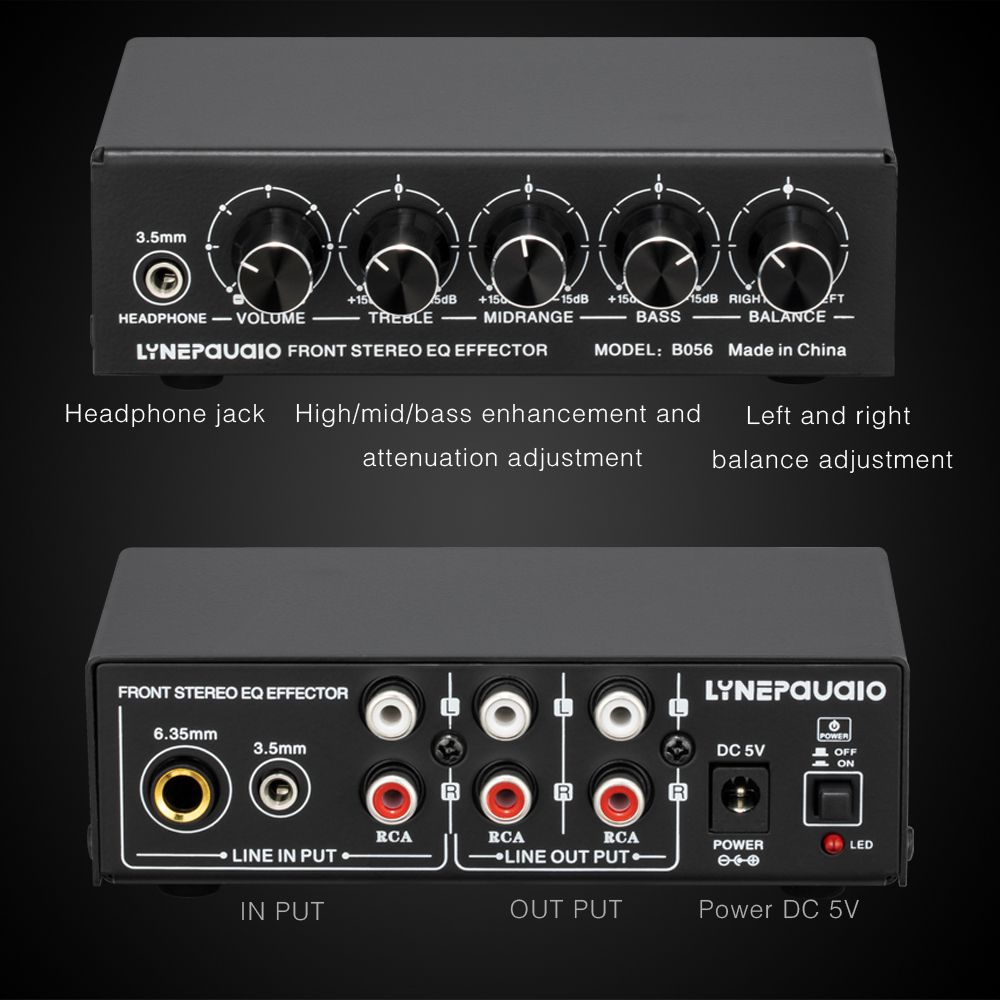

2. Three sets of stereo mixed input :3.5mm+6.5mm+RCA

3. provides three sets of stereo output simultaneously:RCA+RCA+3.5mm

4. Independent Toner Audio Control: With independent audio source channel high/middle/bass control attenuations -15dB and +15dB gain, the sound adjustment design allows you to adjust the audio independently to listen to the experience and control the output volume independently

5. simple installation: input and output plug and play easy installation, you can enjoy different audio experience

6. USB 5V power supply, suitable for different applications

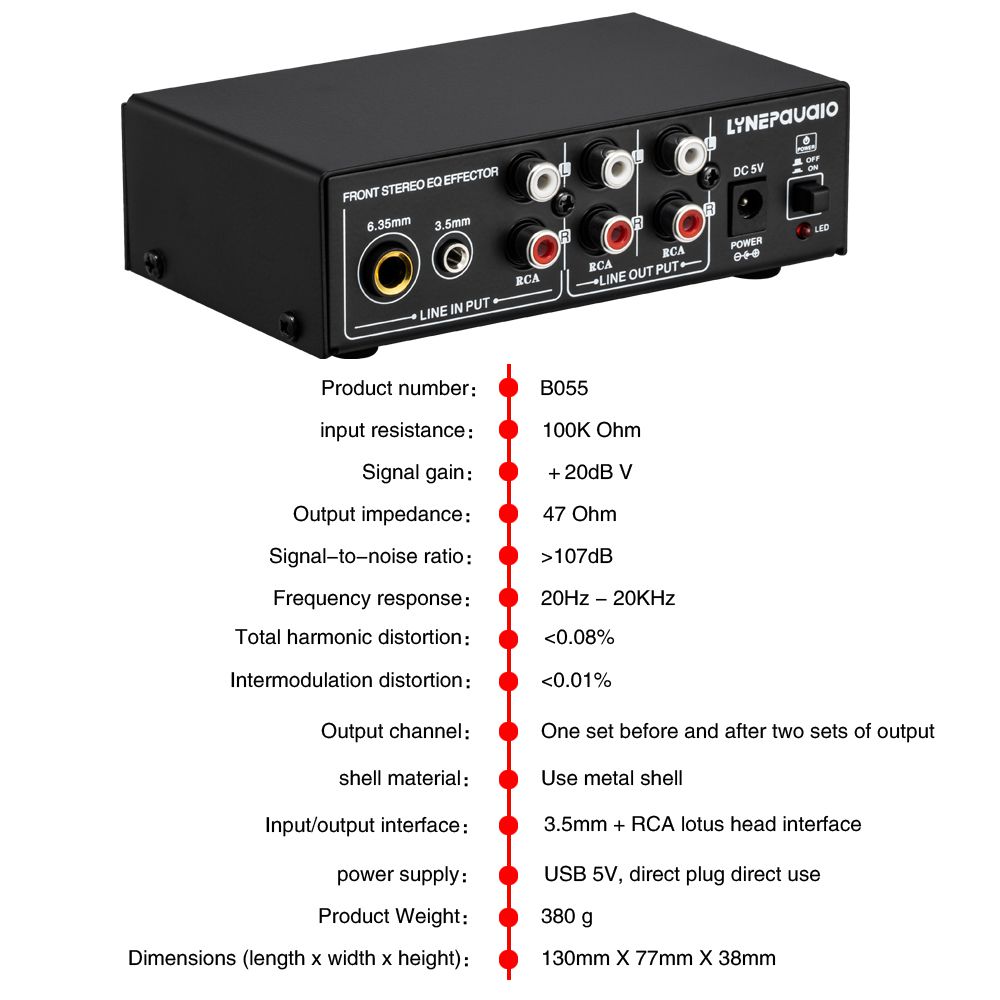

Product Parameter

Input channel: 3-way stereo input 3.5mm+6.5mm+RCA interface

Output channel :3.5mm/RCA interface

Input impedance :100K Ohm

Output gain: high, medium and low -15dB and +15dB

Frequency response: 20Hz-20KHz

Signal to noise ratio: more than 107dB

Total Harmonic Distortion: less than 0.08%

Intermodulation distortion: less than 0.01%

Power supply:USB 5V

Net weight: 0.38kg

Gross weight after packing: 0.53kg

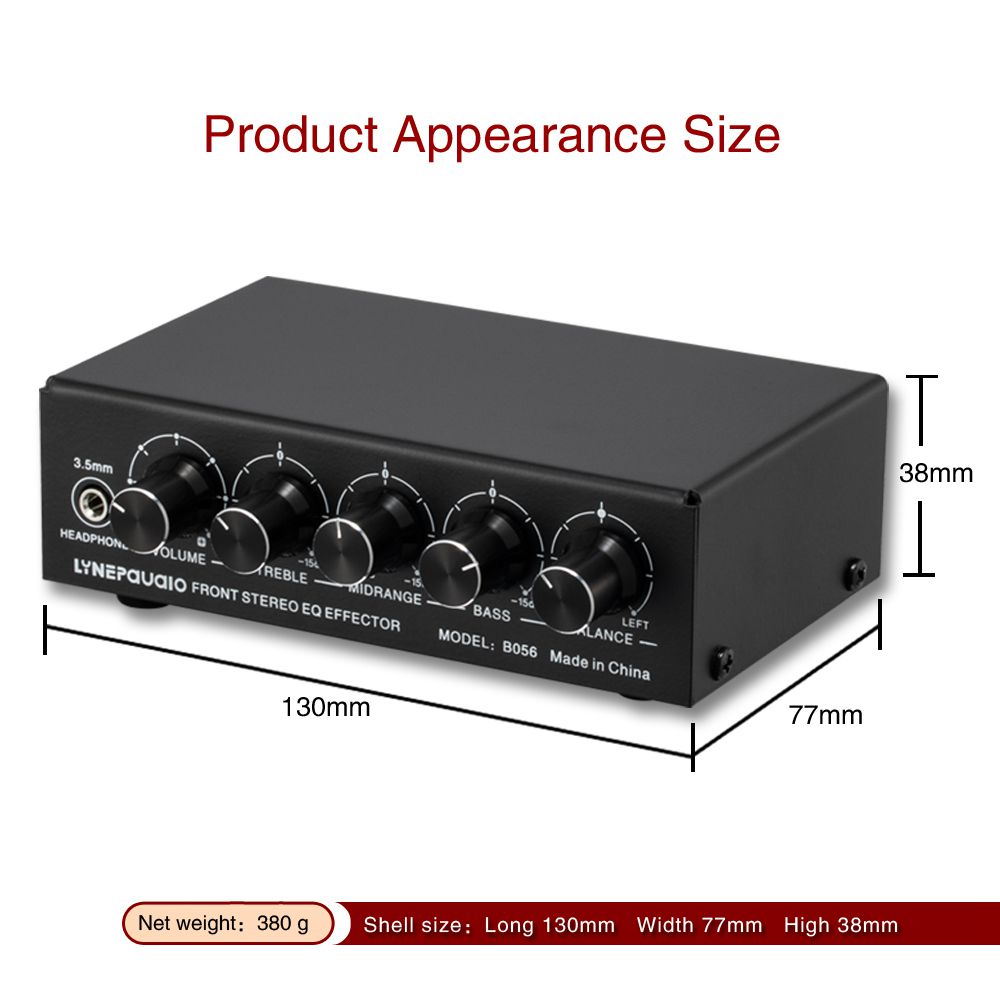

Product size: length 130 mm X width 77 mm X height 38 mm

Packing size: length 200mm X width 185mm X height 55mm

Kit list

1 X Front Stereo Phoner High/Middle/Bass Adjuster

1 X USB power cord, length 120CM
