product presentation

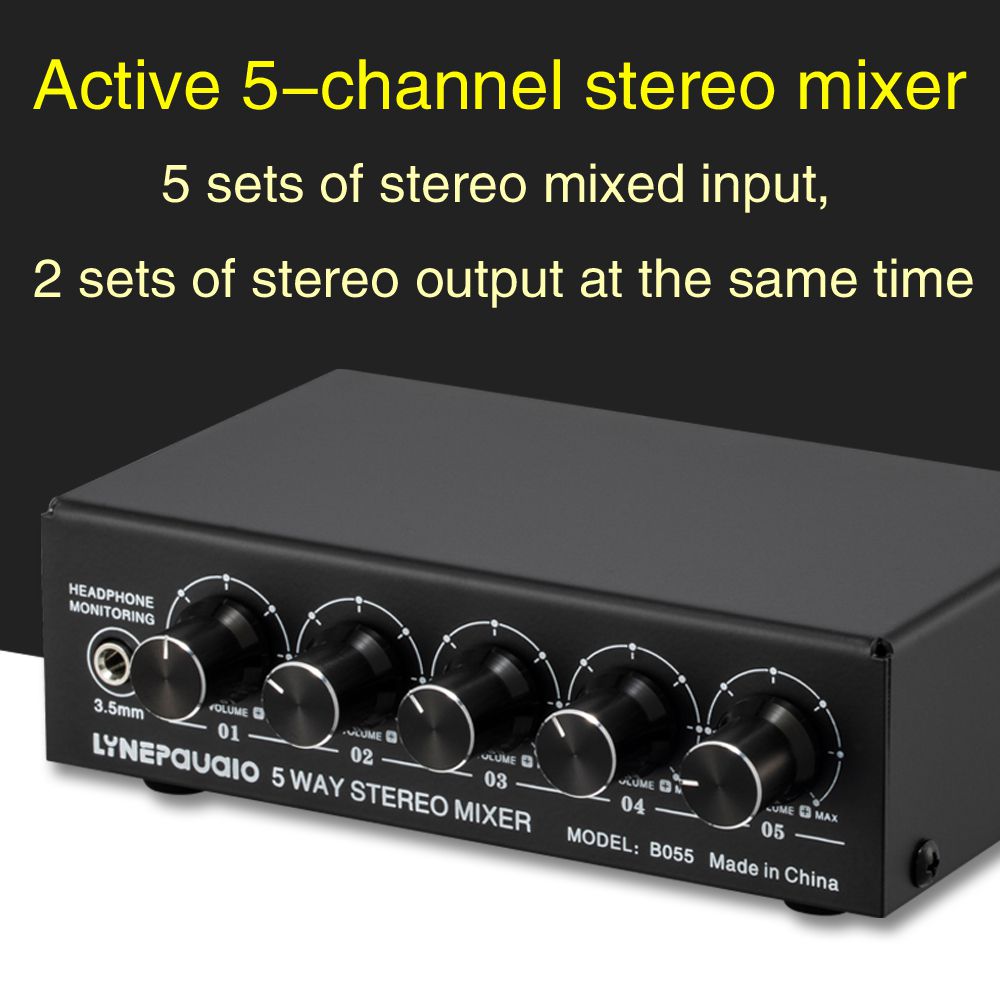

1. Mini Active Stereo Mixer is a 5-way active stereo mixer for extended control of tuning, mixing instruments, CD players, tape players, computers, mobile phones, tablets, etc. It is compact and thin desktop mini design, compact in size, compatible with any device

2. Power supply adopts USB 5V power supply suitable for outdoor mobile power supply

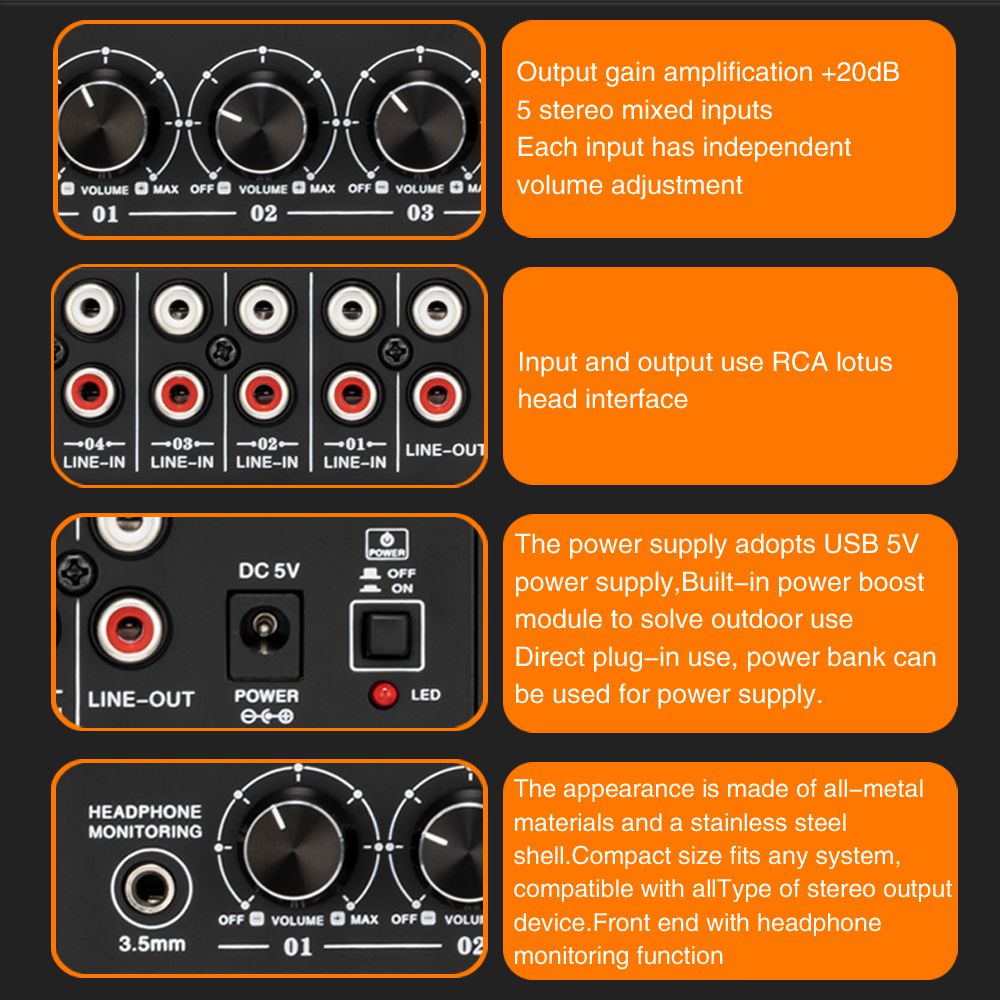

3. Independent Audio Control: With independent audio source channel volume control knob design, you can adjust the volume of each input separately, to adjust the listening experience after mixing, and control the volume of each input independently

4. Five-way stereo input mixed output level signal gain +20dB

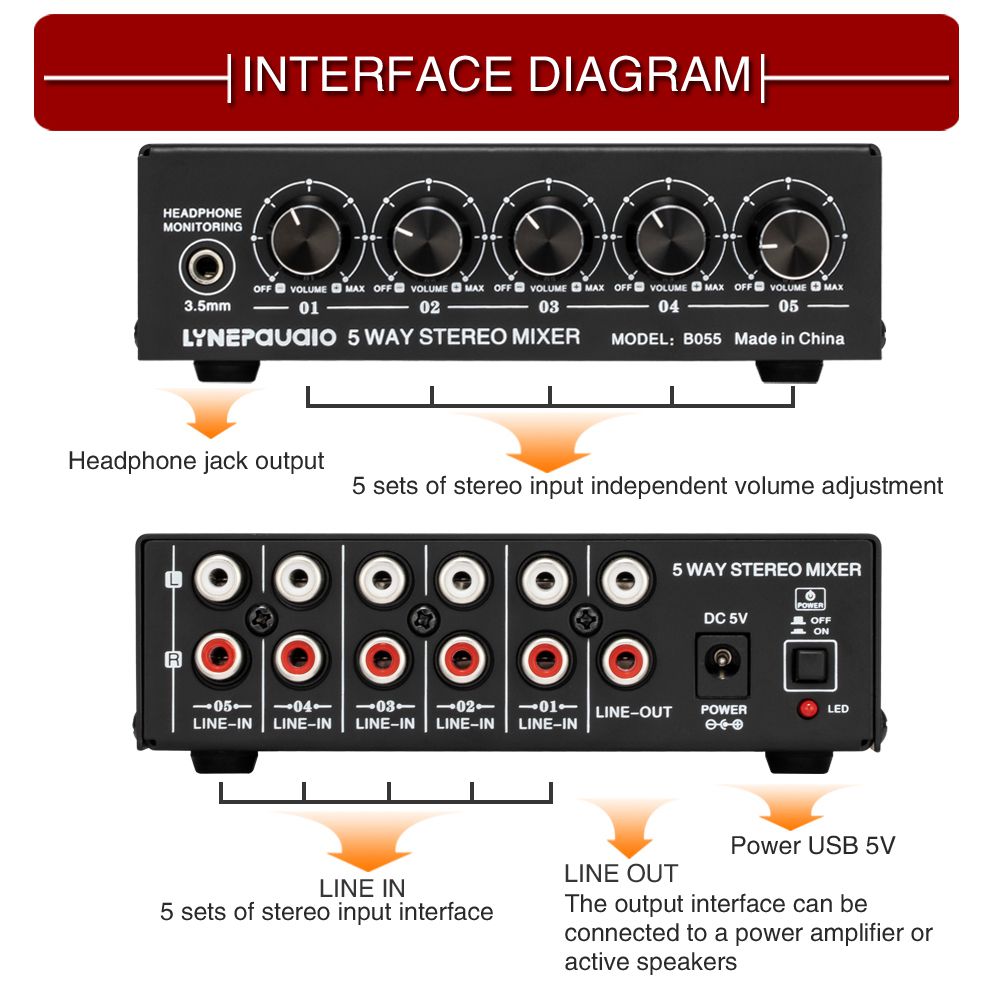

5. simple installation: input and output plug and play easy installation, you can enjoy different audio experience, output with earphone monitoring interface

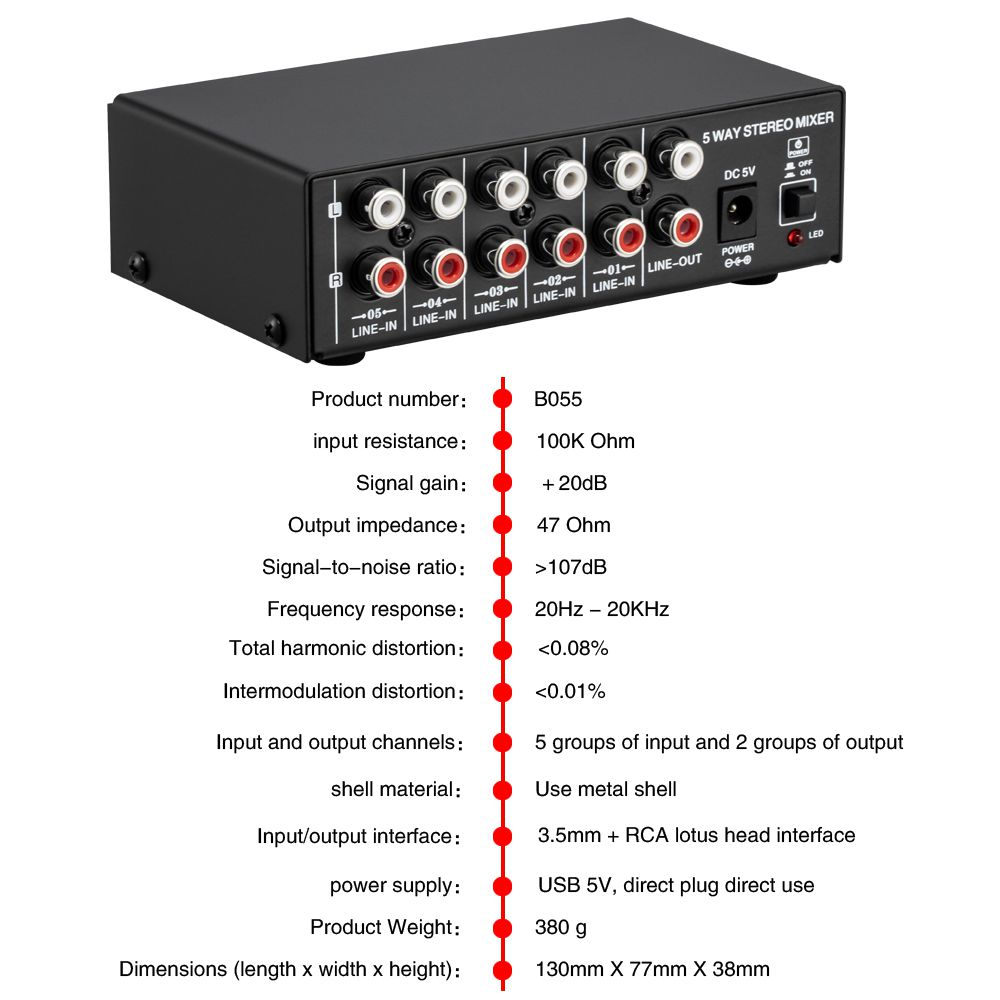

Product Parameter

Input channel: 5-way stereo input RCA interface

Output channel:3.5mm/RCA interface

Input impedance:100K Ohm

Output gain:+20dB

Frequency response: 20Hz-20KHz

Signal to noise ratio: more than 107dB

Total Harmonic Distortion: less than 0.08%

Intermodulation distortion: less than 0.01%

Power supply:USB 5V

Net weight: 0.38kg

Gross weight after packing: 0.53kg

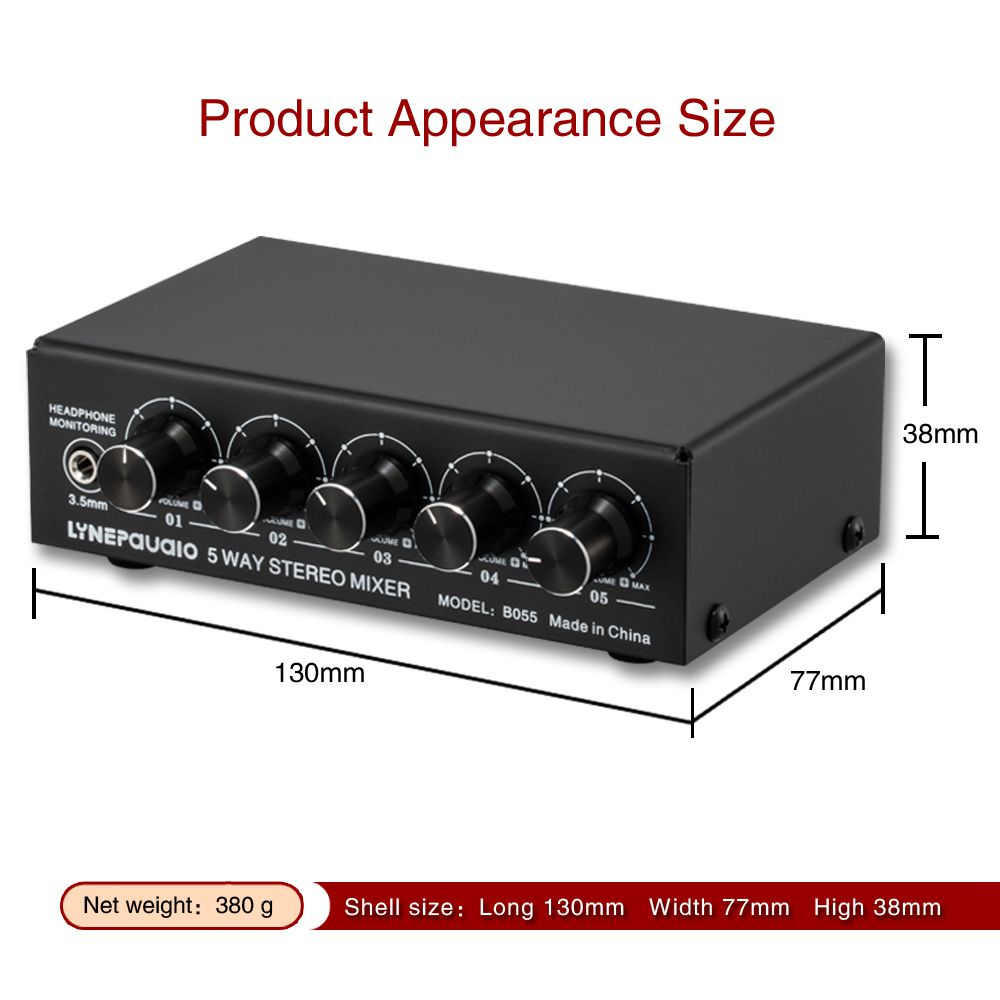

Product size: length 130 mm X width 77 mm X height 38 mm

Packing size: length 200mm X width 185mm X height 55mm

Kit list

1 X Mini Stereo Active 5-way Stereo Mixer

1 X USB power cord, length 120CM
