Qty | 1 | 2 | 5 | 10 | 20 |
---|---|---|---|---|---|
Price | $43.61 | $43.29 | $42.71 | $42.20 | $41.77 |
product presentation
1. Maximum support power is 200 watts:1 and 2 power amplifiers with 1 pair of speaker selector switches, ideal for home theater sound systems, maximum power of 200 watts per channel, suitable for 4–16-ohm impedance speakers, with a compact thin desktop design, compatible with any home theater setting.

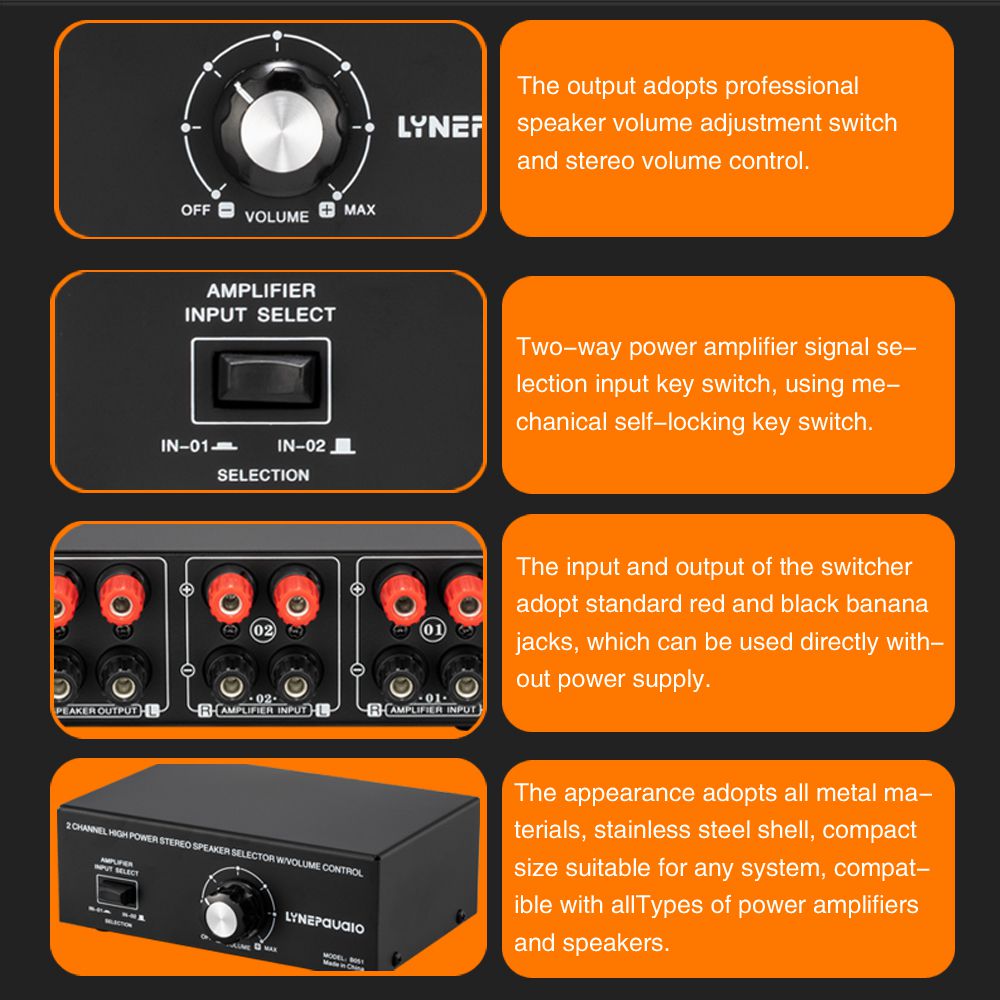

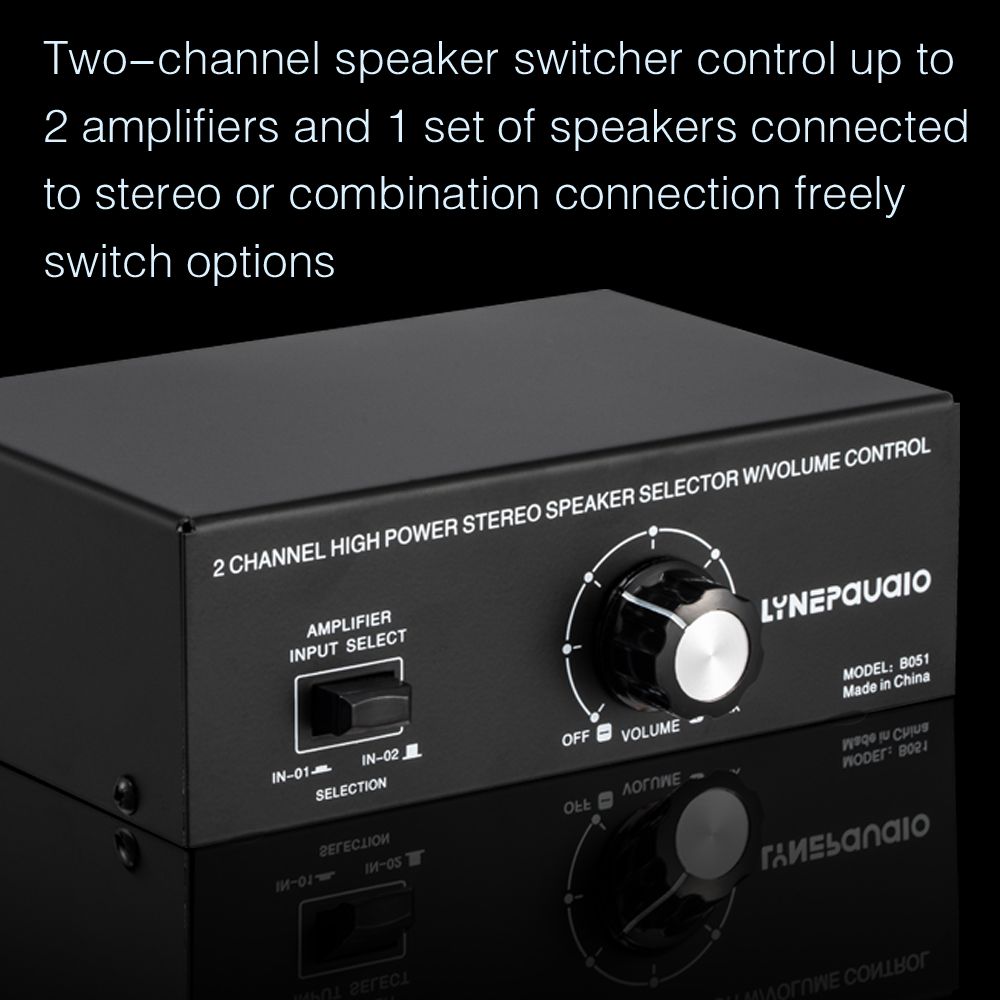

2. AMPC Amplifier Control: The two-channel speaker switcher controls the stereo connection between two amplifiers and a set of speakers, or the combination connection switch selection, input/output through the screw-type connector terminals, which accept 14AWG speaker wire.
3. Independent audio control:With independent audio source channel volume control.The button design allows you to individually select each amplifier to customize your home listening experience, and the volume switch controls the volume adjustment of the output speakers.

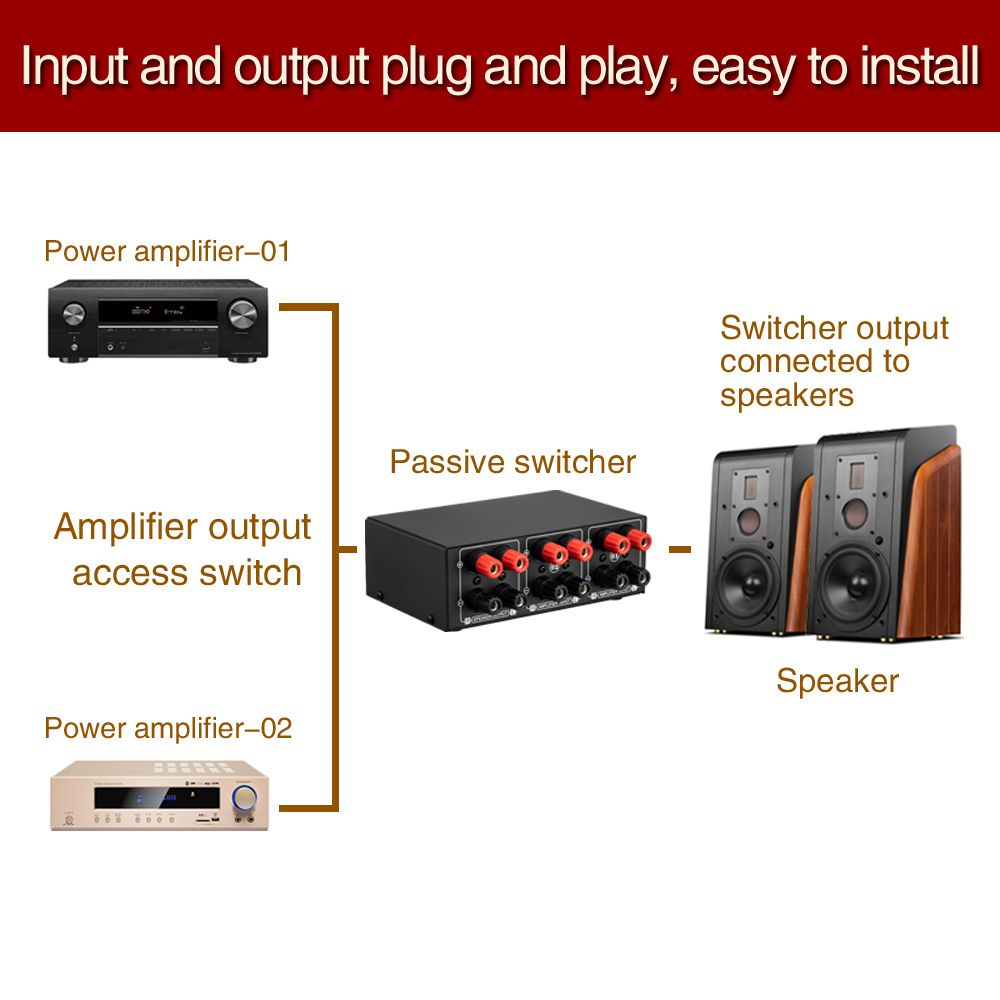

4. Simple installation:The enjoyment of high-quality audio performance requires connecting the left and right channel outputs of the amplifier to the left/right and 1/2 amplifier inputs with 1 on 2 speakers on a mini dual channel controller.

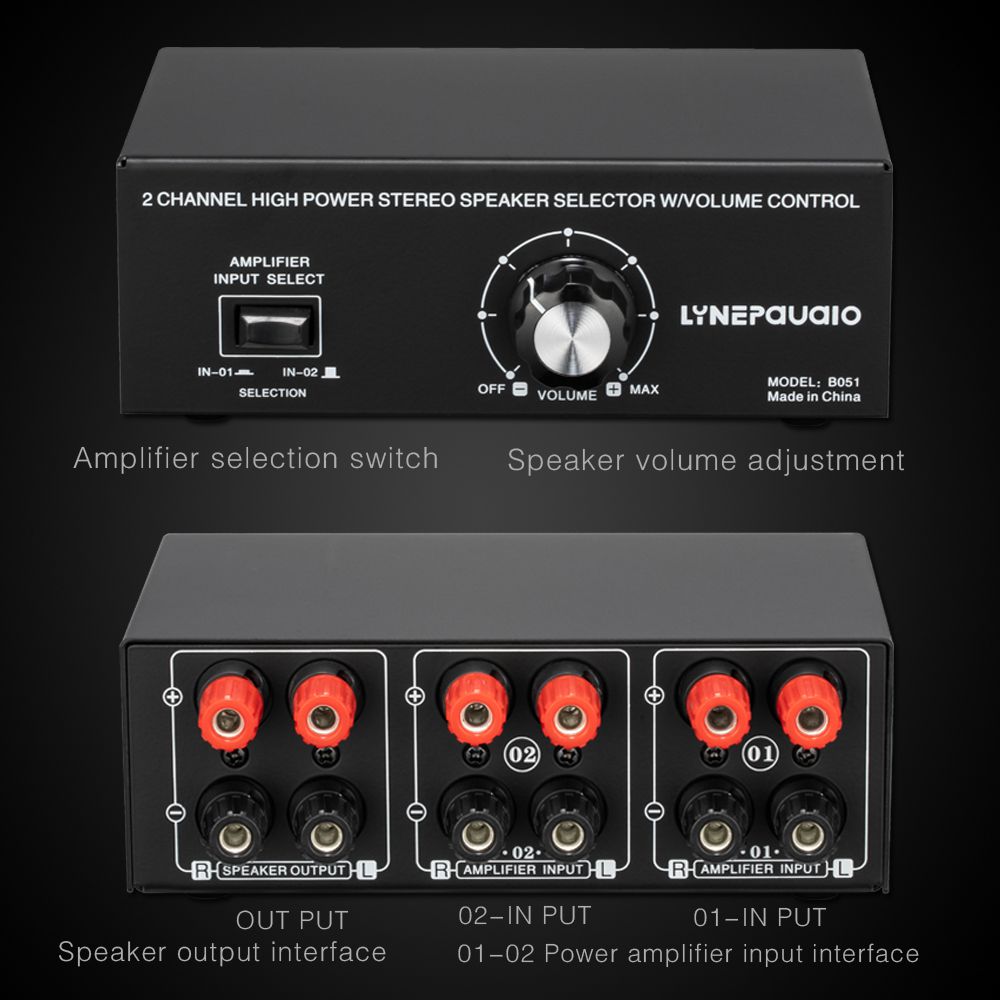

5. overload protection:Equipped with a front panel control switch consisting of volume control knob and amplifier switch.Provide high quality audio and overload safety protection circuits and long-term reliability.

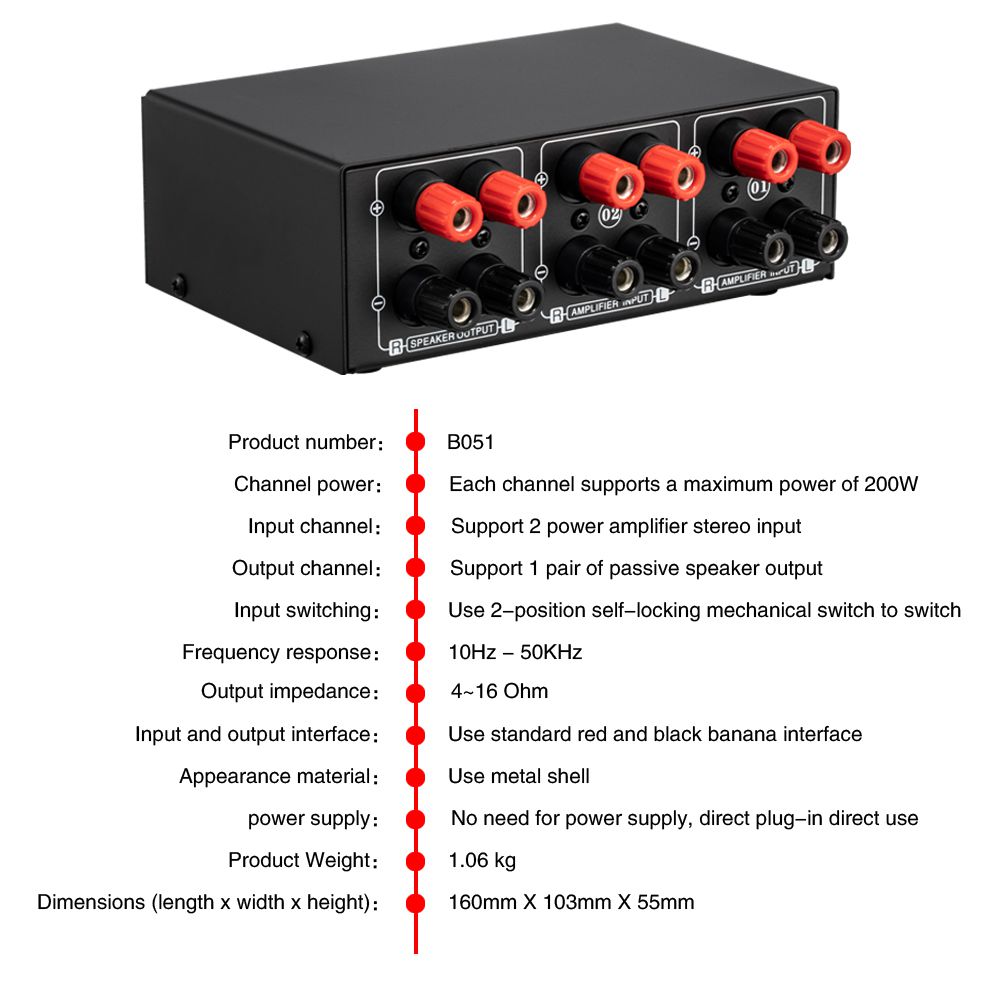

Product Parameter

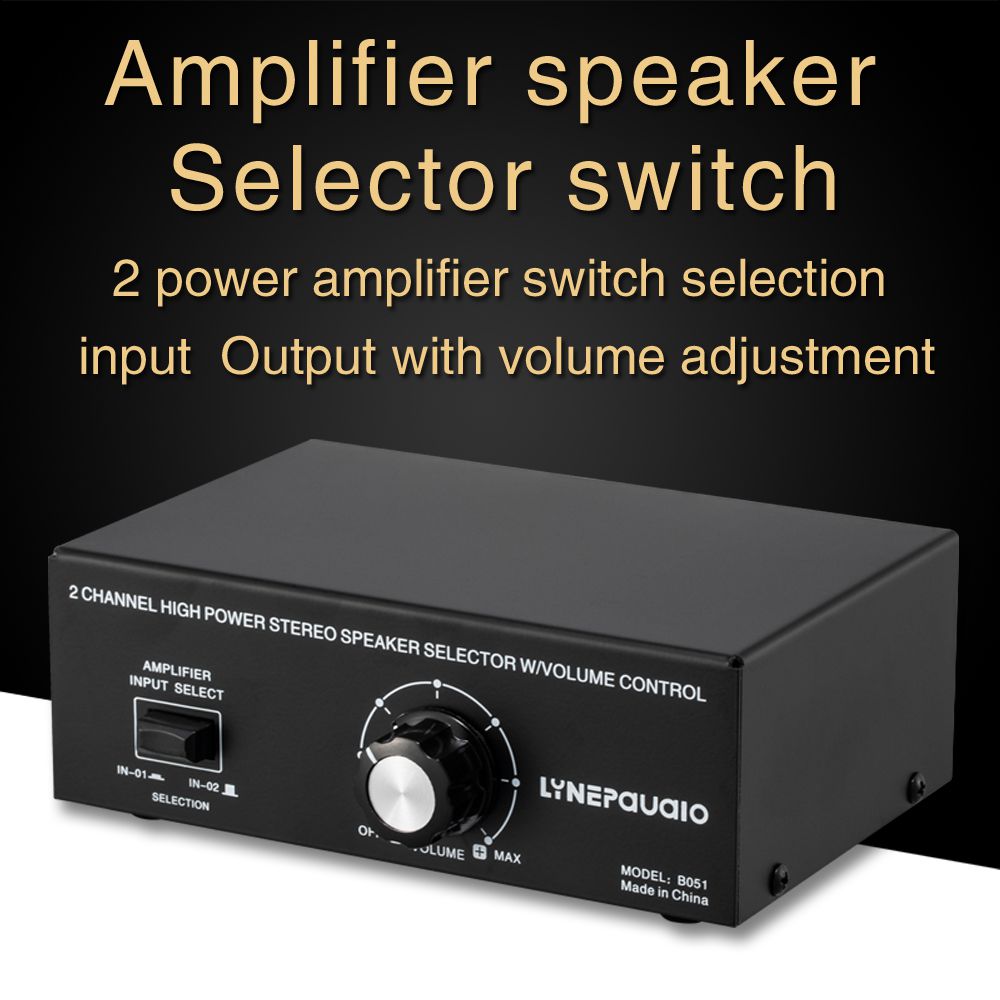

2 input 1 output amplifier speaker selector switcher

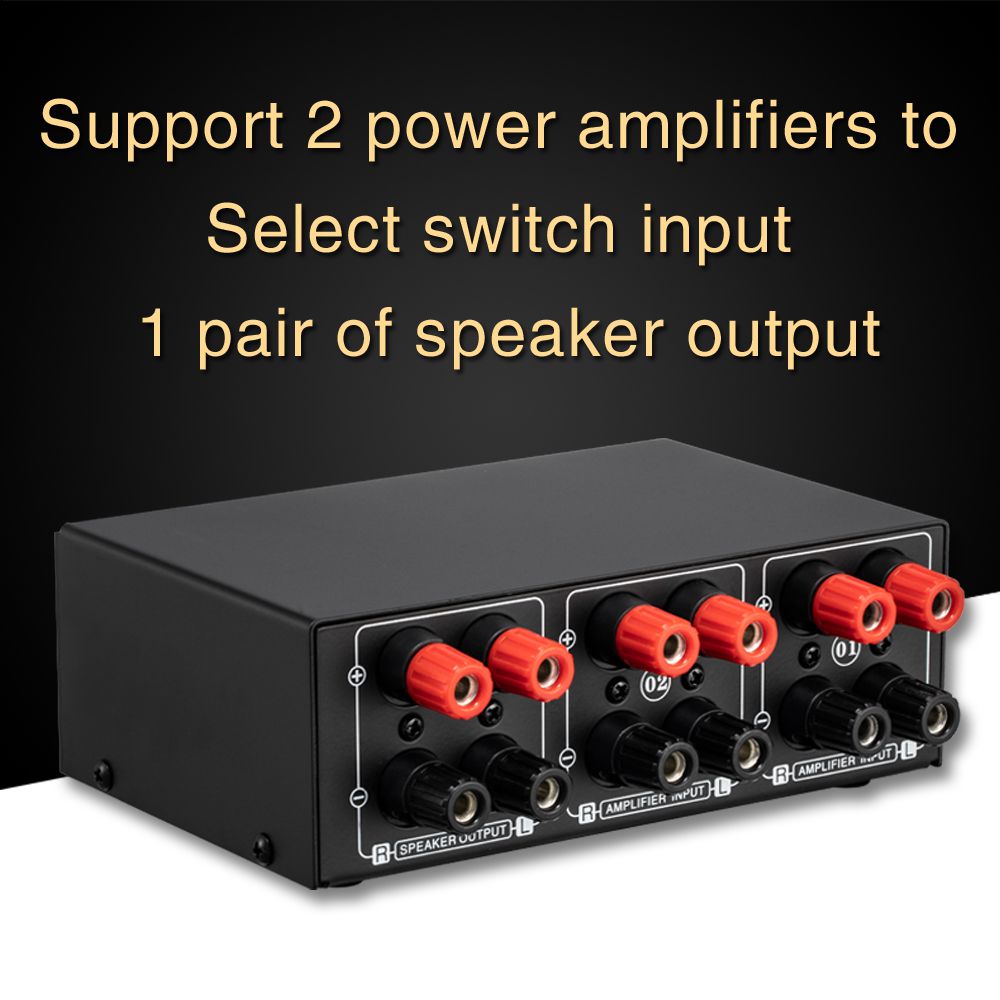

Convenient audio control accommodates 2 amplifiers with 1 pair of speakers.
Home theater stereo amplifier system support, independent audio source channel volume control

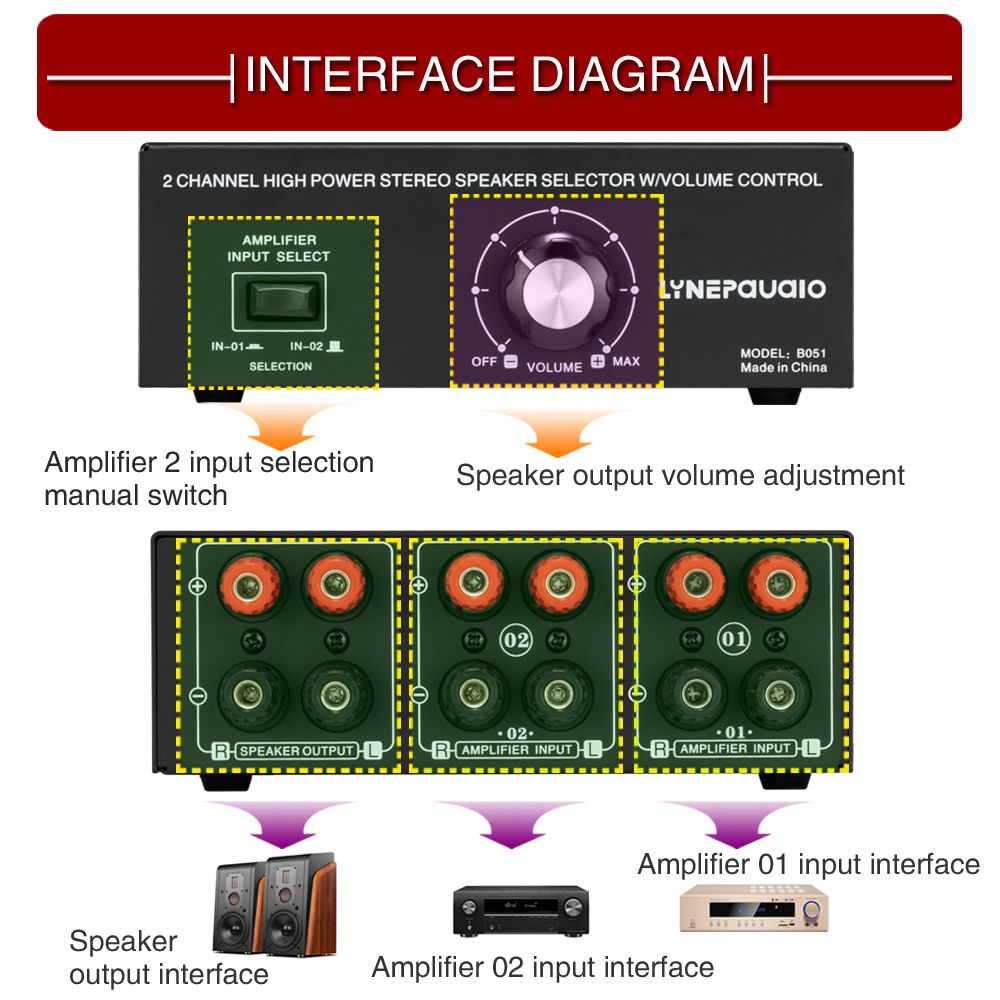

Input/output: screw type connector terminal, compact desktop/desktop mini design
Front panel button control center, the product needs no power supplyBuilt-in electronic overload protection circuit
power processing: Maximum 200 watts per audio/speaker channel
Speaker selector type: 2 soundtracks
Speaker cable support: Max. 14 wire gauge(14 AWG)
Supportimpedance: 4-16 ohms
frequency response: 20Hz-20kHz
Net Weight: 1.06 kg
Packed weight: 1.21 kg
Product size: Length160mm X Width103mm X Height 55mm
Package size: Length 260mm X Width 185mm X Height 65mm
Kit list
1 X 2 input 1 output amplifier speaker switcher output with volume adjustment function
