Sorts | Type | Parameters |
System | Operating system | Embedded Linux |
Online visitor | Supports 4 visitors at the same time | |
CPU/Image sensor | 1/2.9 inch 1080p progressive scan CMOS sensor | |
Minimum illumination | 0.5 Lux（Color mode）, 0.1 Lux（B&W mode） | |
Lens/Viewing angle | 3.6mm@F2.0/101° Diagonal | |
Night vision | IR-CUT with auto-switching，6 pcs IR LED lights; Irradiation distance: 5~10 m | |
Compression standard | H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG | |
Data rate | Main stream: 1296p(2304×1296)@15fps/1080p(1920×1080)@30fps Substream：360p(640×360)@15fps | |
Bit rate/maximum frame rate | 128～4096kbps/30fps | |
Image adjustment | Brightness and contrast are adjustable | |

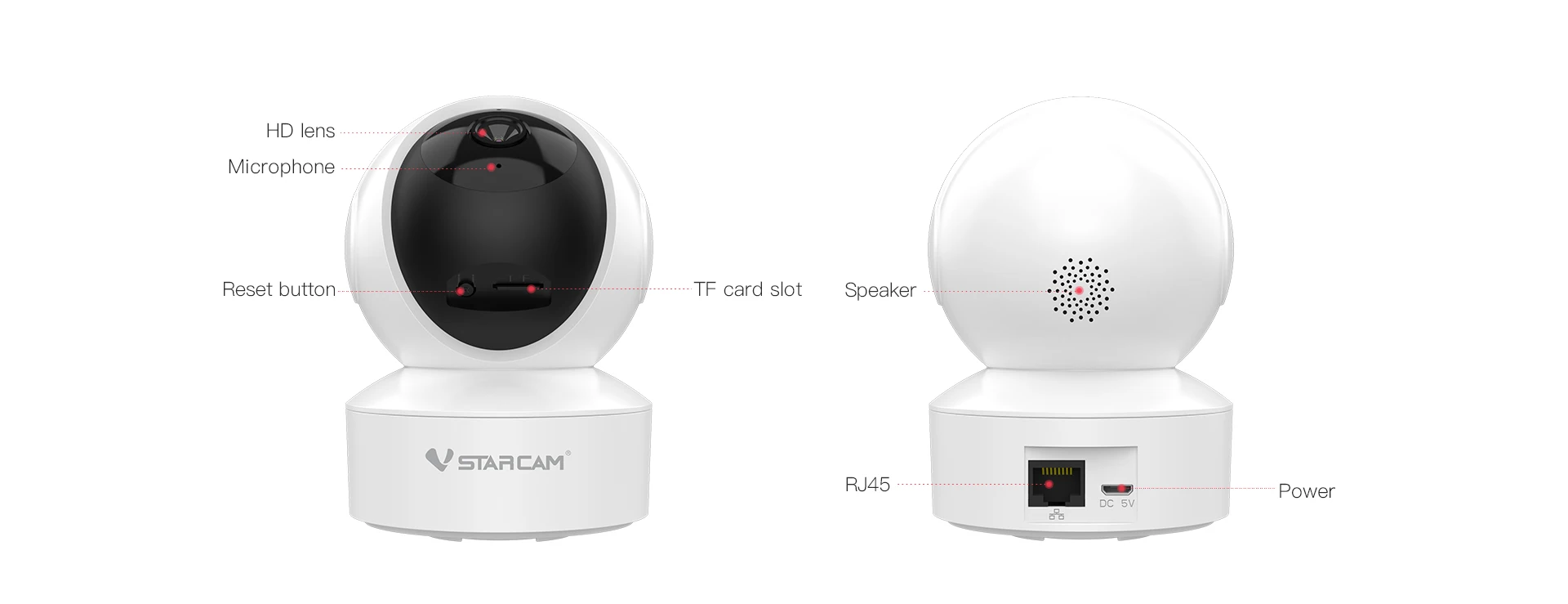

Audio | Input | Built-in -38dB microphone |
Output | Built-in 8Ω1W speaker | |
Sampling frequency/bit width | 8KHz/16bit | |
Compression standard/Bit Rate | G.711/64kbps | |
Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 interface |
Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P、ONVIF etc. | |
Wireless network | IEEE802.11b/g/n; Supports AP mode | |
Wireless frequency | 2.4GHz | |
Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |

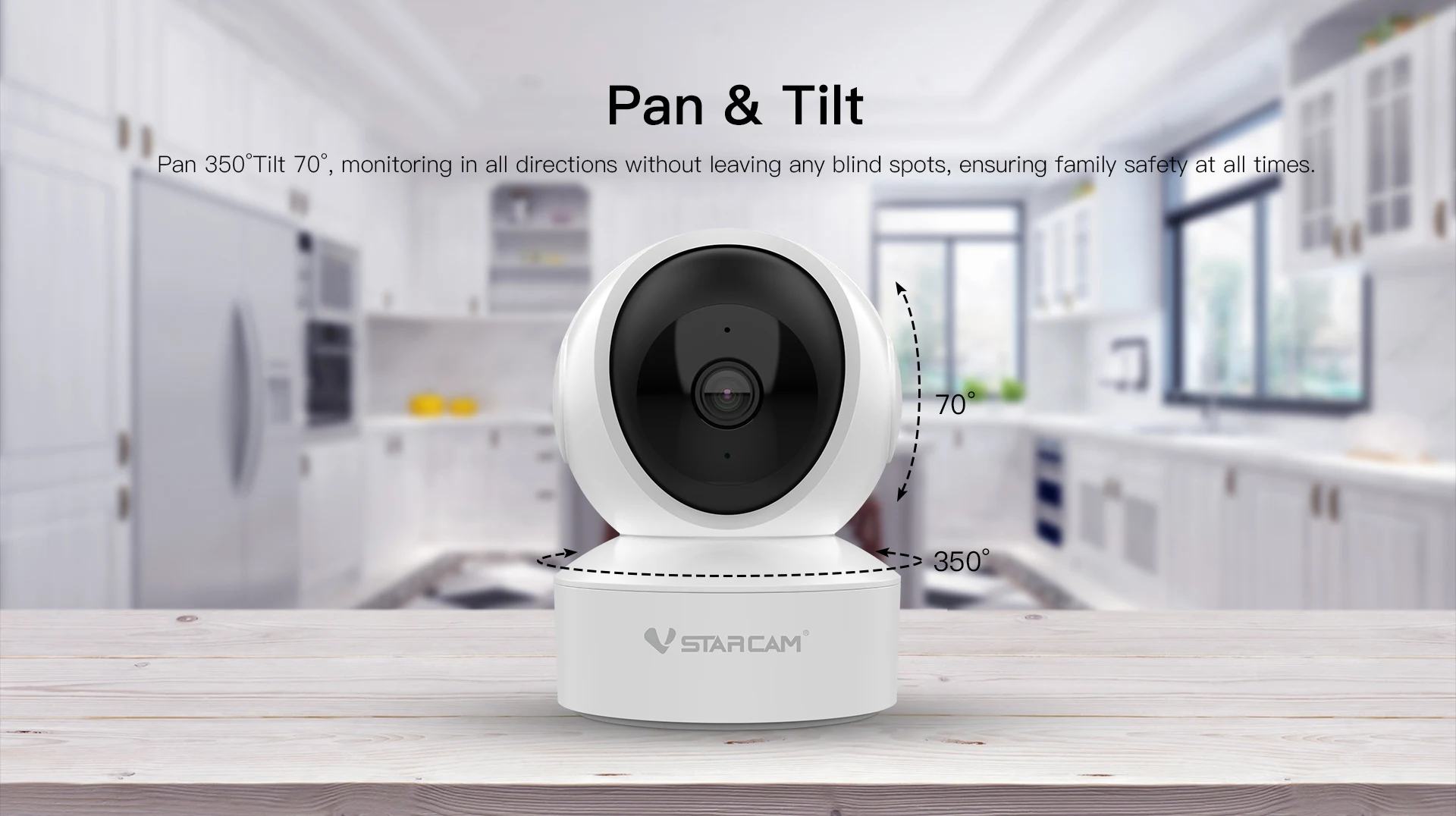

Pan & Tilt | Pan & Tilt | Pan 350° /Tilt 70° |
Preset position | Supports 16 (Mobile phone App supports 5) preset positions | |
Storage | Storage functions | Supports T-Flash card(max supports 256GB); Cloud Storage；NVR；NAS |
Alarm | Alarm detection | Supports Motion detection; Humanoid detection; Humanoid framing; Smoke sound detection; Absence detection; Delimitation detection |
PhysicalIndicators | Rated voltage | DC 5V±5% |
Power consumption | Rated power: 2.2W (with IR LED lights ON)/ Max power: 5.5W(with Pan & Tilt ON) | |
Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
Weight | Net: 190g （Note: in kind prevail） | |
Package size | 158x146x106mm |
