Specification

• Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB
• THD: less than 0.01% ＠1Khz, -30 dBu input
• SNR:80 dB ＠1Khz, -30 dBu input
• Input1 phantom Power: 5V/3V power suppliers
• Input2 phantom Power: 48V power suppliers
• Level meter: -18dB to dB in 3dB increments
• Power: 9V alkaline or lithium battery
• Battery duration: 5 hours typical lithium battery(no phantom)
• 3 hours typical lithium battery(with phantom)
• Dimension:136*80.5*62.5mm
• Weight:13.5 oz(0.385kg)

Package

• 1*SR-PAX2 main unit
• 1*Signal transimssion line
• 1*User manual
• 1*Warranty card

Overview

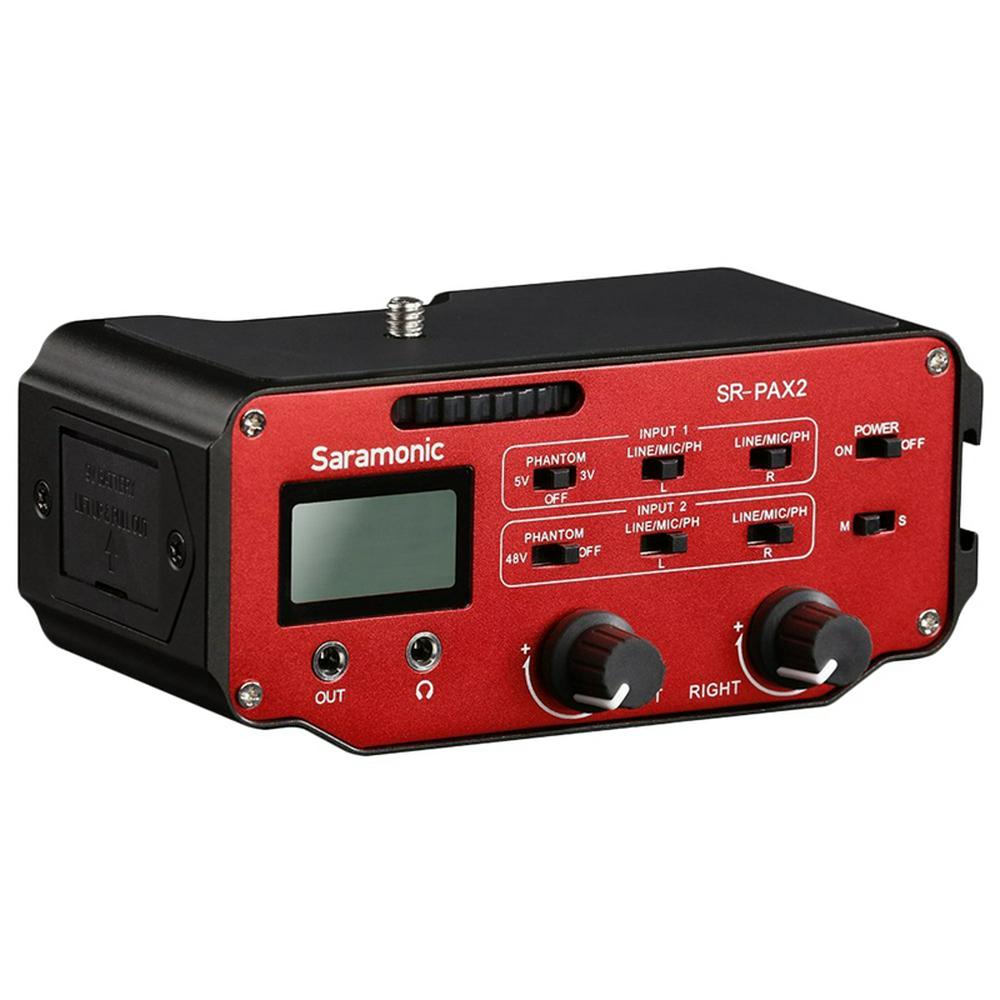

The SARAMONIC SR-PAX2 is a two-channel audio mixer with pre-amplifier and phantom power designed for mirrorless digital cameras, Blackmagic Design pocket cinema cameras or DSLR with a microphone jack. It is a compact and lightweight mixer ideal for recording professional-quality audio from four sources and mixing them into your camera. It attaches to the base of a camera, and a threaded socket on its base allows for mounting on a tripod or case. With 4 sets of inputs, the SR-PAX2 accepts signals from various of mic or line level sources such as balanced XLR microphones, 3.5mm microphones, wireless microphones and external audio mixers. The input levels of each channel can be controlled with the dual gain control knobs. A phone jack allows you to monitor the audio in real time. Making your recording work much easier.

Configuration

The SR-PAX2 can work with four microphones for cameras or camcorders. 2 XLR inputs plus two 3.5mm inputs allow the SR-PAX2 to work with fwo pairs of wireless lavalier microphones like the BOYA BY-WM6 or Saramonic SR-WM4C. The combination can be used in particular situations like TV talk show, family party, micro film making, academic and business interview & outdoor activities.
