ORICO USB4 NVMe SSD Enclosure 40Gbps PCIe3.0x4 Aluminum M.2 SSD Case Compatible with Thunderbolt 3 4 USB3.2 USB 3.1 3.0 Type-C
Sku
LHQT0015
$20.36
| Qty | 1 | 3 | 8 | 16 | 32 |
|---|---|---|---|---|---|
| Price | $22.53 | $22.10 | $21.40 | $20.79 | $20.36 |
Color
Please Select Color
Option
Please Select Option
Qty
Sales Ends In
- Buyer Protection
- Full Refound if you don't receive your order
- Full or Partial Refund,If the item is not as described
Important Note

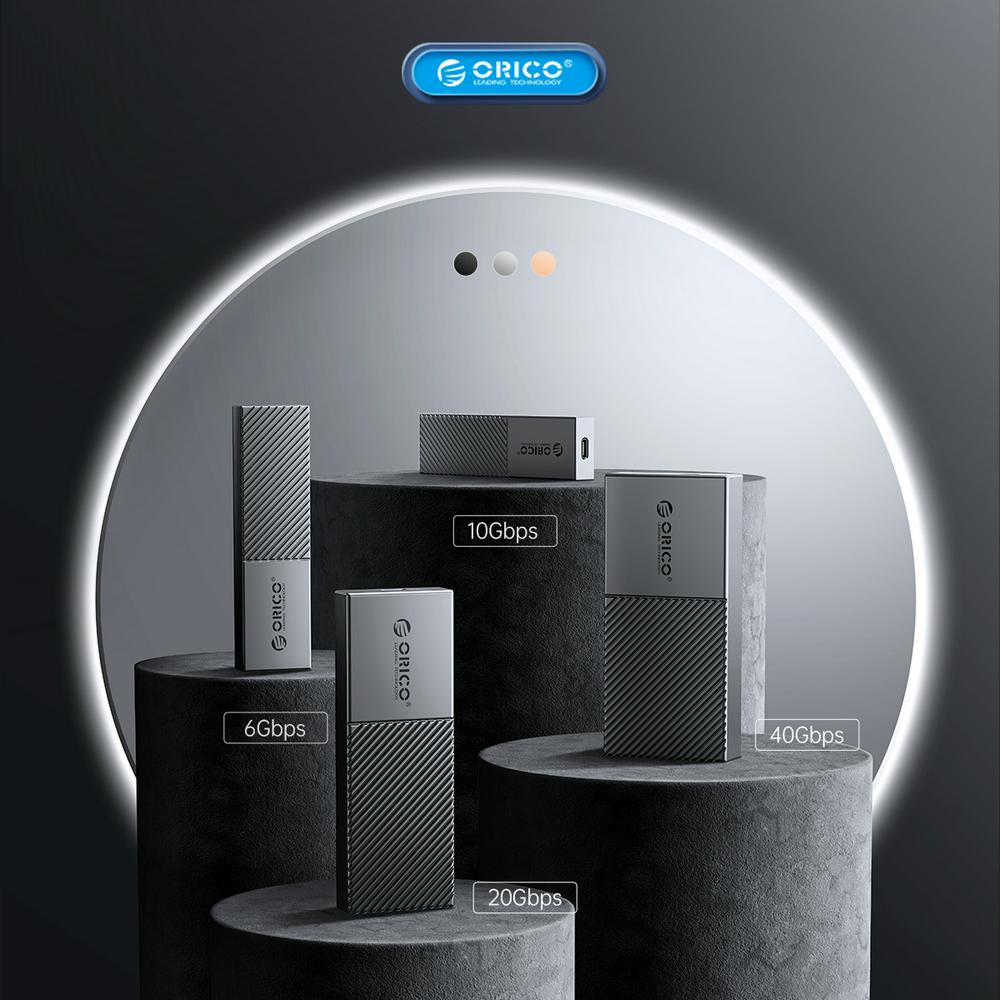

There are Five models optional, please confirm your M.2 SSD protocol before ordering.

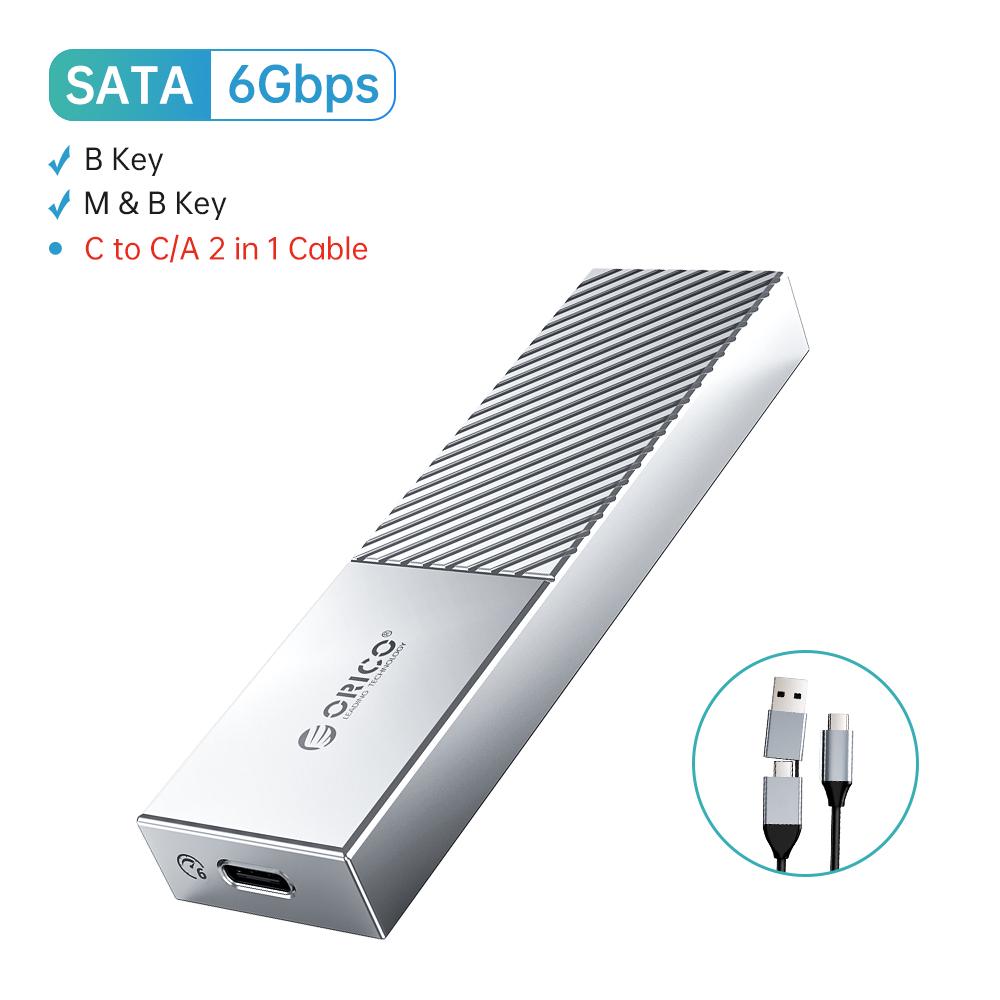

(1)SATA 6Gbps Model
Only support NGFF SATA protocol B key / M&B Key SSD, with 30cm type-c to USB 3.0 cable.

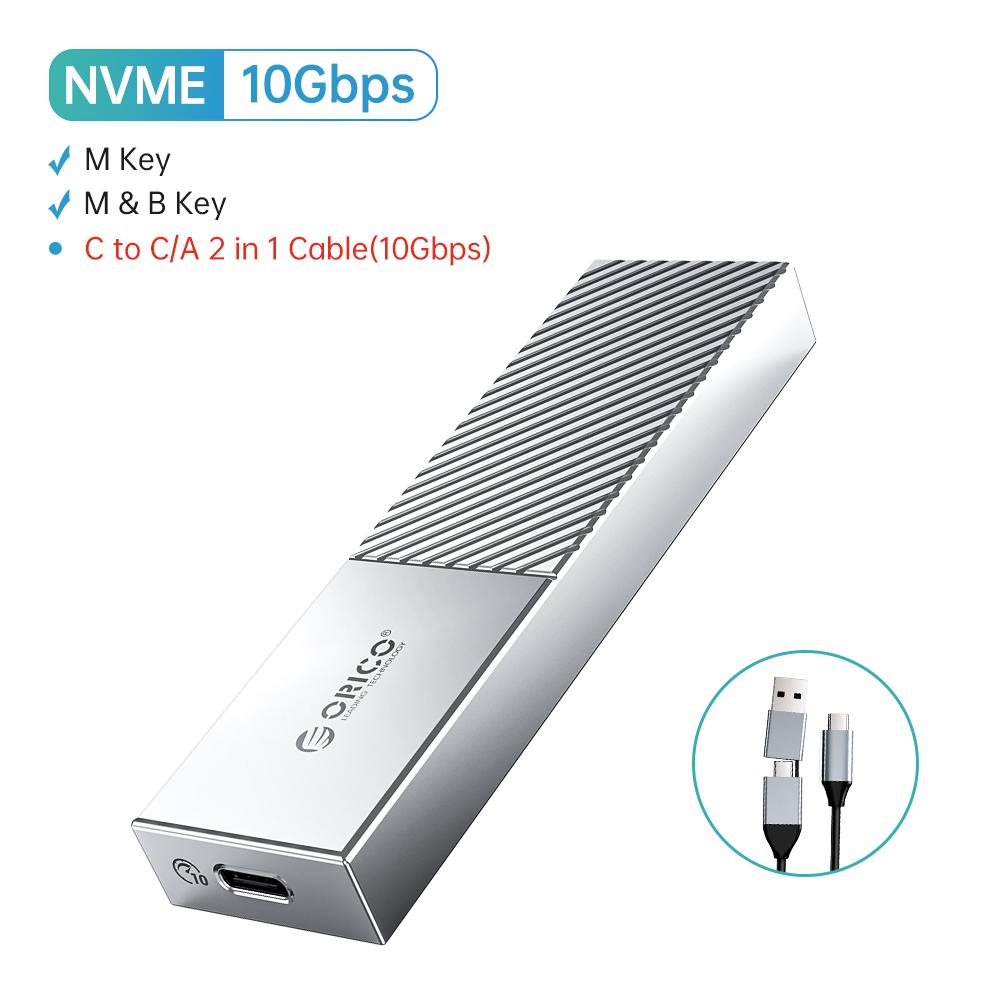

(2)NVMe 10Gbps Model
Only support NVME PCI-E protocol M key / M&B Key SSD, with 30cm C to C/A 2-in-1 date Cable.
(3)SATA&NVMe Dual Protocol Model
Support M Key(NVMe Protocol) / M&B Key (both NVME and SATA Protocol) SSD, not compatible with B Key SSD, with 30cm C to C/A 2-in-1 date Cable.

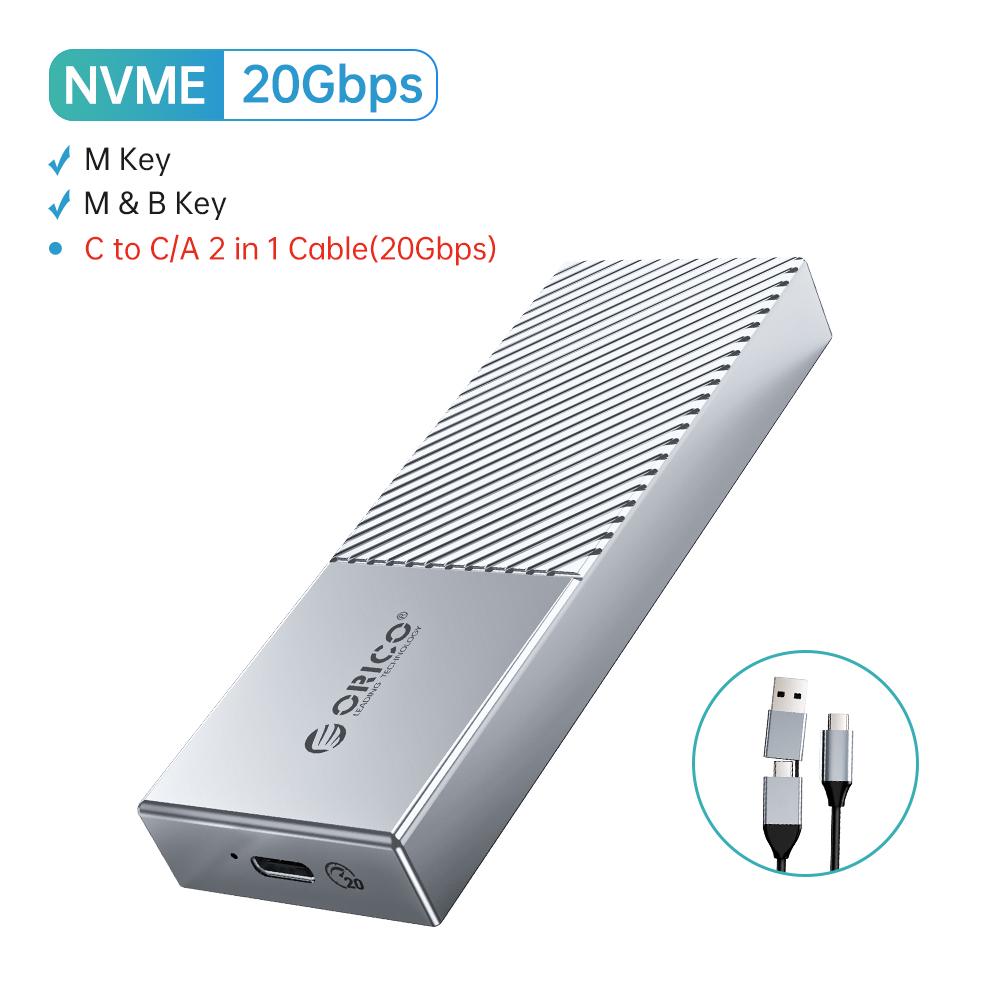

(4)NVMe 20Gbps Model
Only support NVME PCI-E protocol M key / M&B Key SSD, with 30cm C to C/A 2-in-1 date Cable.
To achieve 2000MB/S for 20Gbps solid state drive enclosure, the device needs to support USB3.2 GEN2*2 transmission protocol.MAC reach 1000mb/s only, advice to choose 10Gbps.
(5)USB4.0 40Gbps Model
Only support NVME PCI-E protocol M key / M&B Key SSD, with 30cm C to C/A 2-in-1 date Cable.
Recommended SSD: WD SN750 /Samsung 970 EVO / Samsung 980 Pro / SEAGATE 510 series (if your CPU is Apple M1, please use WD SN750 for fast speed)
Not recommended SSD: Samsung 970 EVO plus / Samsung PM981 / WD SN850 / ADATA / CRUCIAL
PS: All USB4.0 40Gbps models are metal screws, other 6Gbps, 10Gbps, 20Gbps and dual protocol models are rubber screws.
Product Specification:
【40Gbps Omnispeed】40Gbps USB Type C Interface M.2 NVMe enclosure: Up to 40Gbps Exterme-speed M.2 NVME, the theoretical read and write speed can reach 3000MB/s. Great for turning your internal SSD into a portable external ssd and storing data. It is also compatible with Thunderbolt3/4, USB3.2/3.1/3.0 interfaces (Please be sure to use USB4.0 interface or Thunderbolt3 interface to achieve 40Gbps. Backward compatibility will limit the speed.)

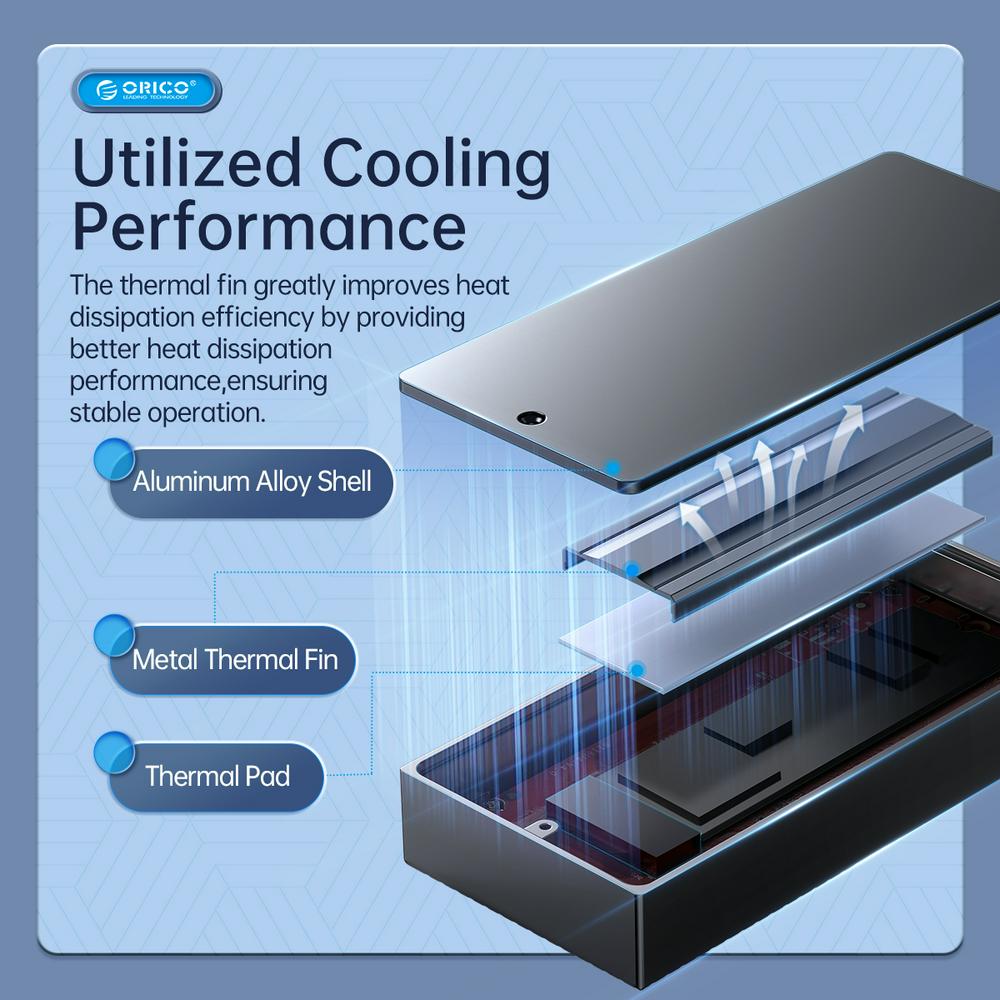

【Cooling Vest & Aluminum】The M.2 adapter is professionally designed with the addition of an aluminum cooling vest, which wraps the SSD in all directions and conducts heat accurately. The M.2 case is made of all-aluminum alloy material, and CNC technology is used to cut stripes to increase the heat dissipation area. After 72 hours of continuous testing, the case temperature only reaches close to human body temperature, making the product more stable and safer to use.
【Wide Compatibility】ORICO 40Gbps M.2 enclosure compatible with both M.2 PCIe NVMe M Key，NVMe B+M Key in sizes 2280. NOT Compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, M.2 PCIe devices. Support System Multi OS, Windows, Mac OS, Linux, Android. Plug and play, no drive and power supply required.
【Upgraded 2 in 1 Cable】The USB cable included with the M.2 USB adapter has 2 output ports, USB C to A (10Gbps) and USB C to C (40Gbps), which can be freely connected to computers, mobile phones, game consoles and other equipment. The wire is 30cm long, which is more flexible and stable to use and has a longer life.
【Safe and Stable】40Gbps M.2 enclosure as a mid-to-high-end M.2 solid state drive enclosure, uses high-quality accessories throughout. For example, it is equipped with high-performance chips, precise PCBA boards, and full cnc aluminum alloy body. It also supports UASP acceleration protocol, TRIM, and SAMRT functions to make reading faster and safer. Very suitable for business people.
Package Included:
1. M.2 SSD Enclosure*1
2. Package Box
3. 2-in-1 USB-A/Type-C Cable*1
4. Cooling Vest*1
5. Thermal Pad*1
6. Screw*2
7. Screwdriver*1
8. Instruction Book
Warm Reminder
- M.2 SSD is NOT included.
- NVMe-model case is not compatible with NGFF SATA M.2 SSD, vice versa.
- It is normal that the aluminum case heats up when using, and it doesn't affect normal use.
| Brand | Orico |
