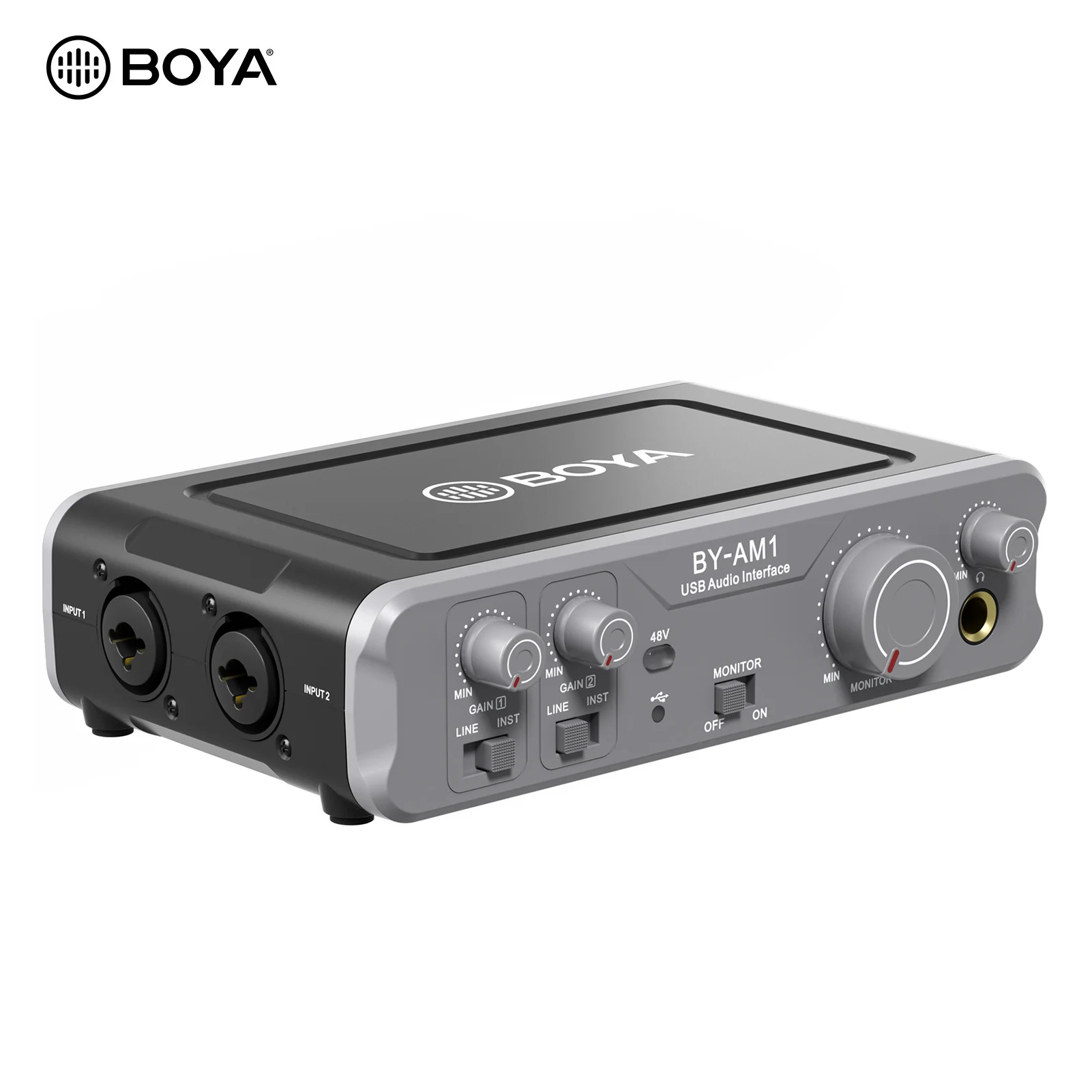

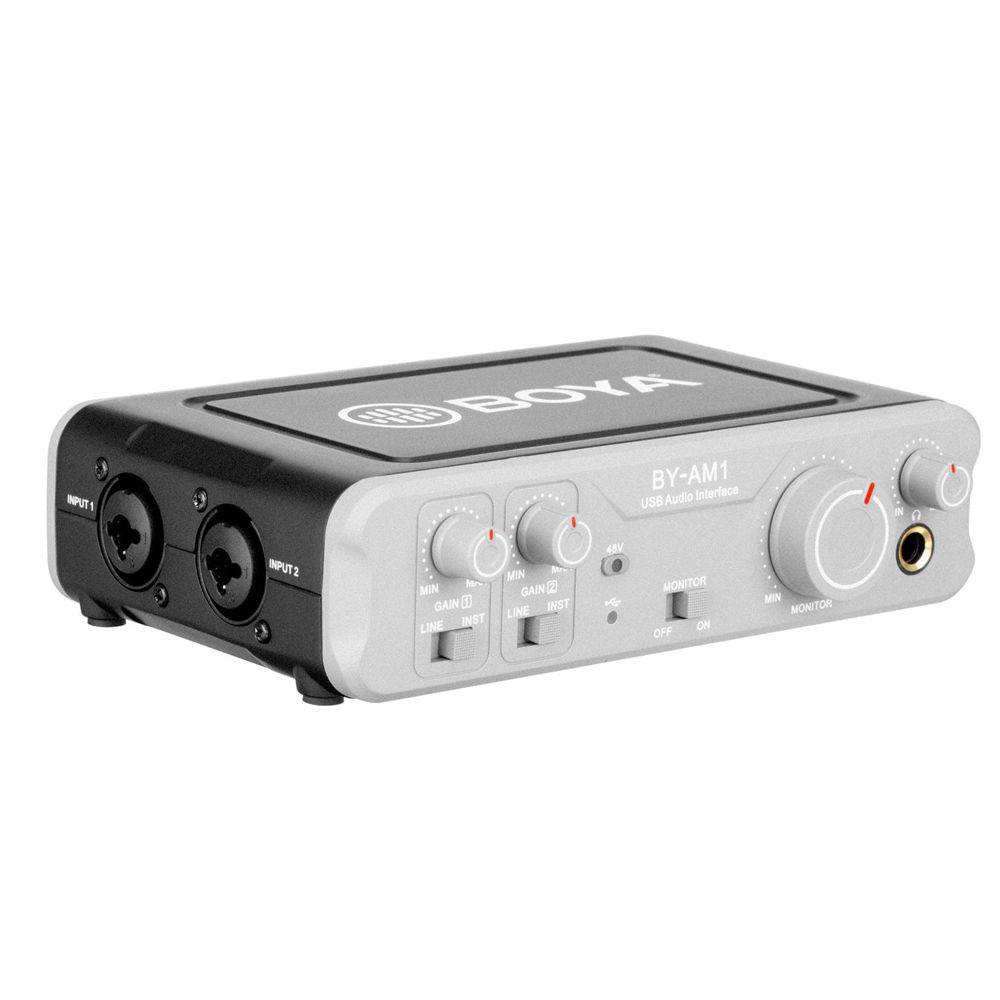

BOYA BY-AM1 Dual-Channel Audio Mixer USB Audio 6.35mm/XLR Combo Inputs 6.35mm Headphone 48V Phantom Power for Audio Recording

The BY-AM1, a 2-channel audio mixer, provides you with a compact audio mixing solution for 6.35mm line-in devices or any XLR microphone, which allows you to easily mount and control input devices, and to transmit the output signal to your computer.

Features:

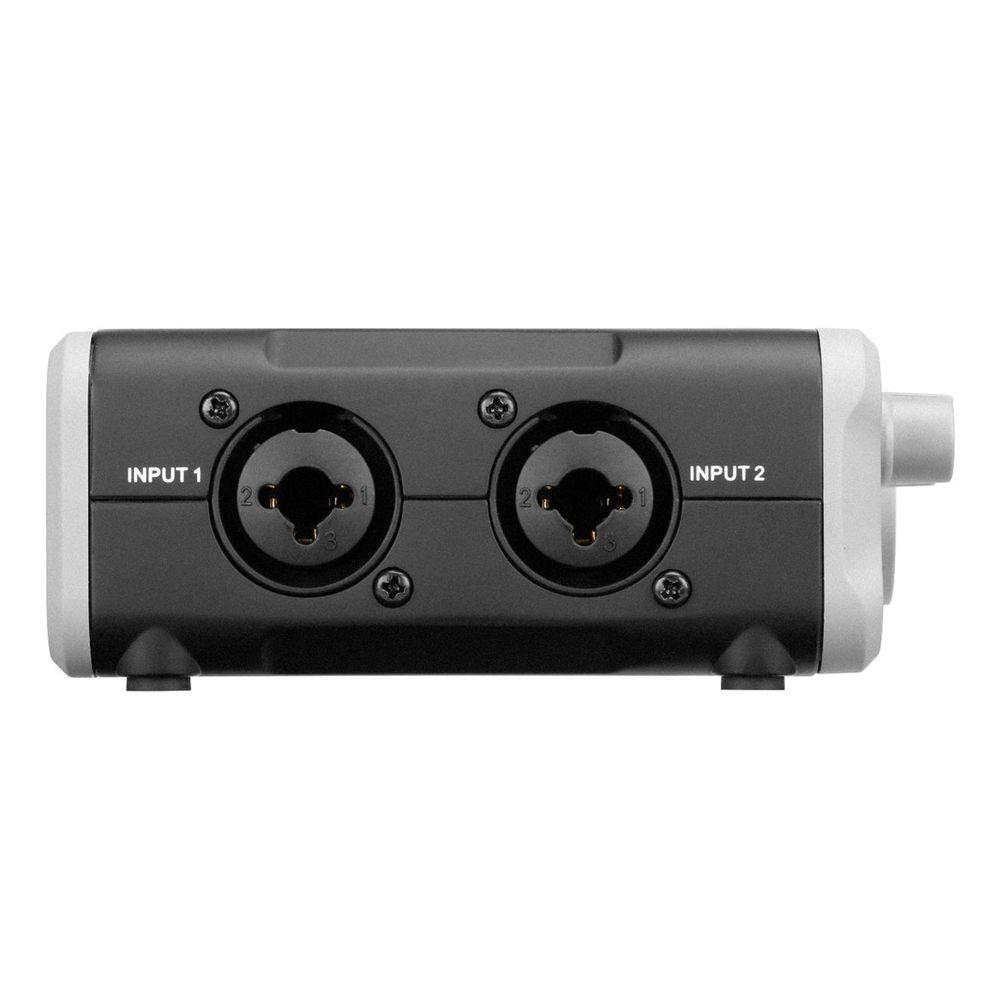

With dual 6.35mm/XLR combo inputs, the audio mixer can accept signal directly from XLR microphones or electric instrument, like electric guitar and bass.
Support 44.1k-192kHz sampling rates audio without any sound compromise, when connecting to XLR microphone and musical instruments input devices.

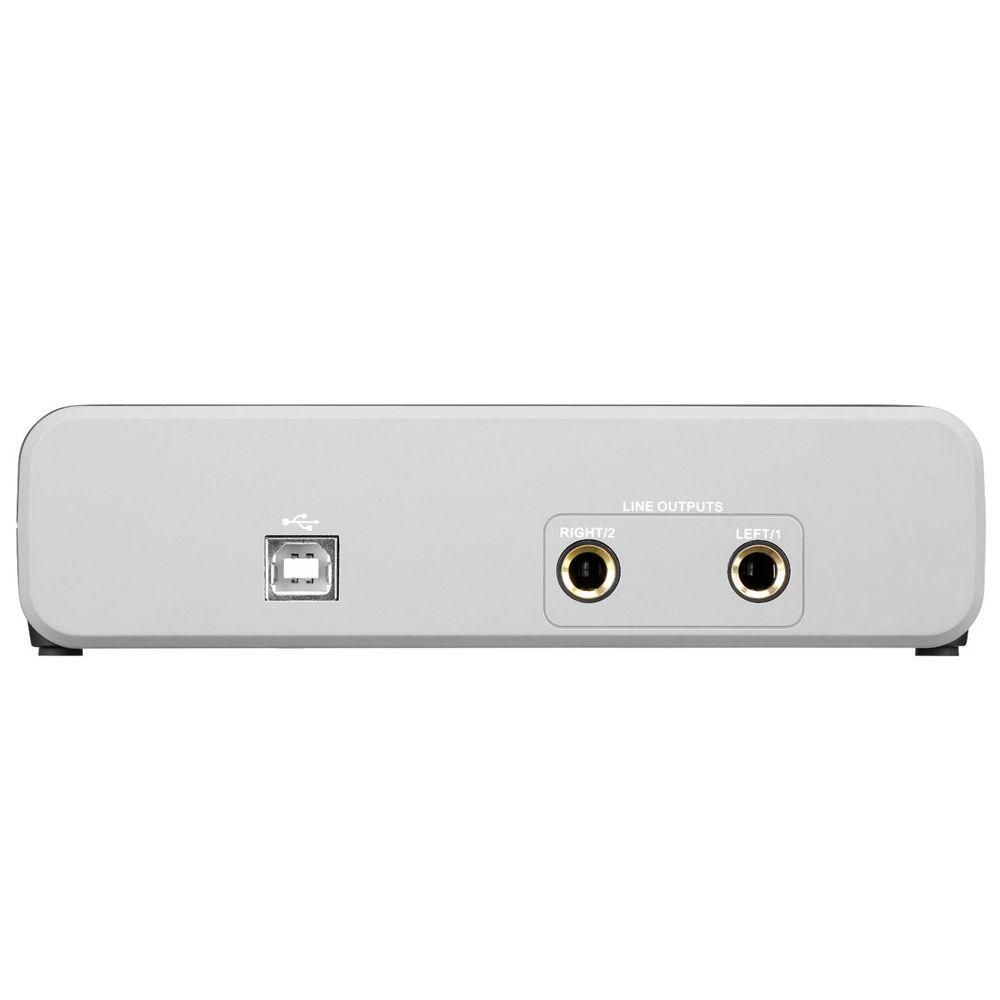

The 6.35mm headphone jack and 6.35mm line outputs enables you to hear live input signal with no distracting echo or latency through the headphone or speaker.

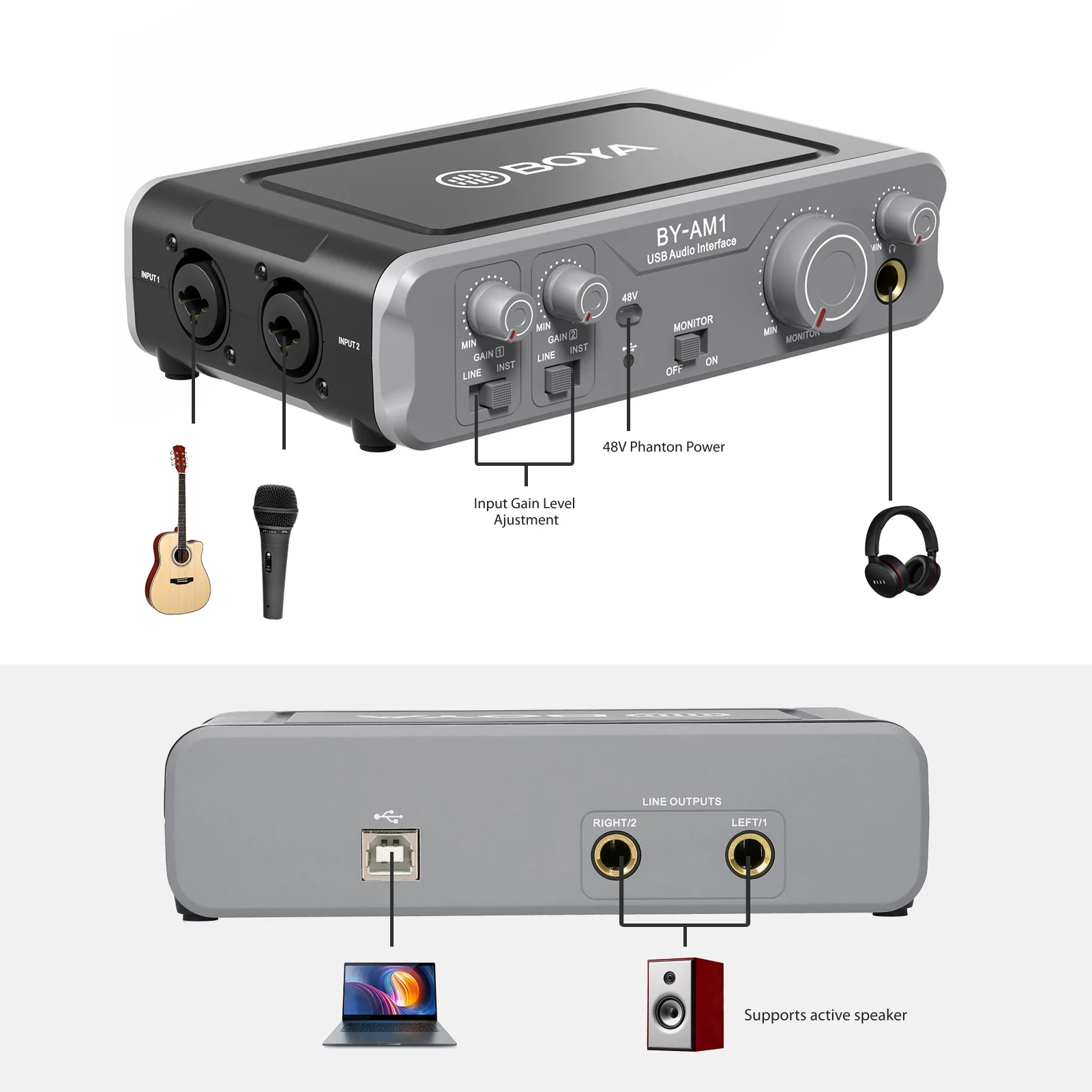

Supports input gain, speaker volume and headphone volume control; can provide 48V phantom power for XLR passive microphone.
USB 2.0 connection, Compatible with computers and laptops; built-in 1/4 inch mounting screw at the bottom, can be attached to tripod and other accessories.

Specifications:
Brand: BOYA
Model: BY-AM1
Frequency Response: 20Hz-20kHz
Maximum Input Level: microphone input--9dBu, line input--15dBu, instrument inputs--8dBu(at minimum gain)
Gain Range: 50dB(line inputs)
Impedance: 47kΩ(line inputs)
THD: <0.01%
S/N: 6dBu(headphone output), 10dBu(line/monitor outputs)
Sampling Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
USB Connection: USB2.0(USB-B connector)
Power Requirement: Powered by computer
Item Size: 16 * 9.5 * 4cm/ 6.3 * 3.7 * 1.6in
Item Weight: 383g/ 13.5oz
Package Size: 19.5 * 18 * 6cm/ 7.7 * 7.1 * 2.4in
Package Weight: 570g/ 1.3lbs

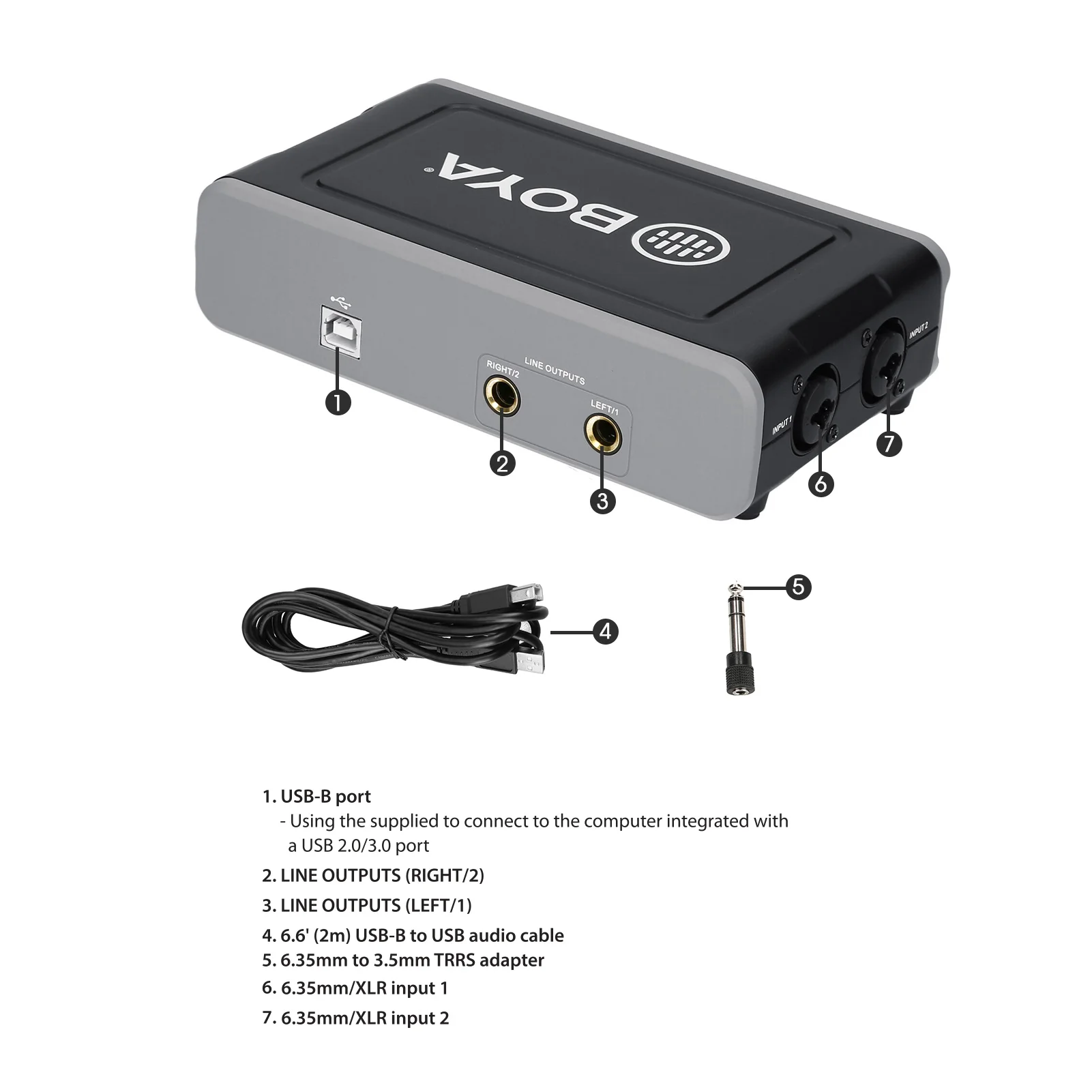

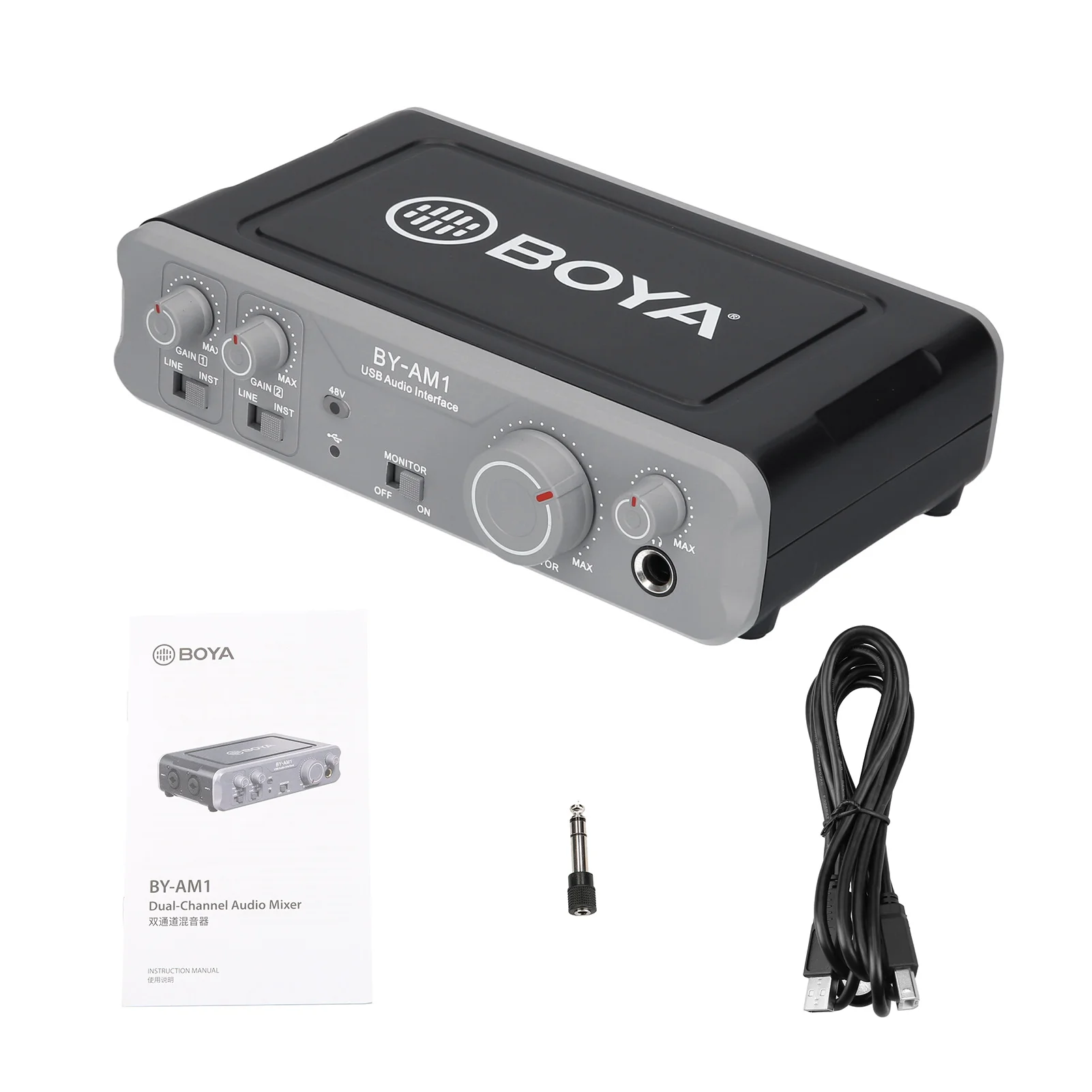

Packing List:
1 * Audio Mixer
1 * USB Cable
1 * 6.35mm to 3.5mm TRRS adapter
1 * Users Manual(English & Chinese)
