AYS-S14 SDI Splitter 1* 4 Switch Adapter SDI Video 1 to 4 Converter
Sku
LZOO0076
$32.69
| Qty | 1 | 2 | 5 | 10 | 20 |
|---|---|---|---|---|---|
| Price | $35.43 | $34.94 | $34.06 | $33.30 | $32.69 |
Sales Ends In
- Buyer Protection
- Full Refound if you don't receive your order
- Full or Partial Refund,If the item is not as described
Specification
- Brand: Aoeyoo
- Model: AYS-S14
- Resolution: 1080P
- Remote wakeup: not supported
- Power Management: Support
- SMPTE standard: 25M Level A&B, 424M, 292M, 259 M-C
- SDI transfer rate: 270Mb/s (SD), 1.485Gb/s (HD), 2.97Gb/s (3G)
- Input / output resolution: standard definition: 480i@60, 576i@50 HD: 720p@50/60, 1080i@50/60 3G: 1080p@24/25/29.97/30/50/59.94/60
- Audio sampling rate: 48KHZ
- Input port: 1 x BNC (SD / HD / 3G-SDI)
- Output port: 2/4x BNC (SD / HD / 3G-SDI)
- Input voltage: DC5V-12V
- Maximum power consumption: 1.5W
- Human body mode ESD protection: ±8kV (air gap discharge), ±4kV (contact discharge)
- Working temperature: -10~+55°C
- Storage temperature: -20~+60°C
- Working humidity: 10~90% RH (no condensation)
- Storage humidity: 5~95% RH (no condensation)
- Shell size: 125*66.5*22 (mm)
- Weight: 230 grams
Package

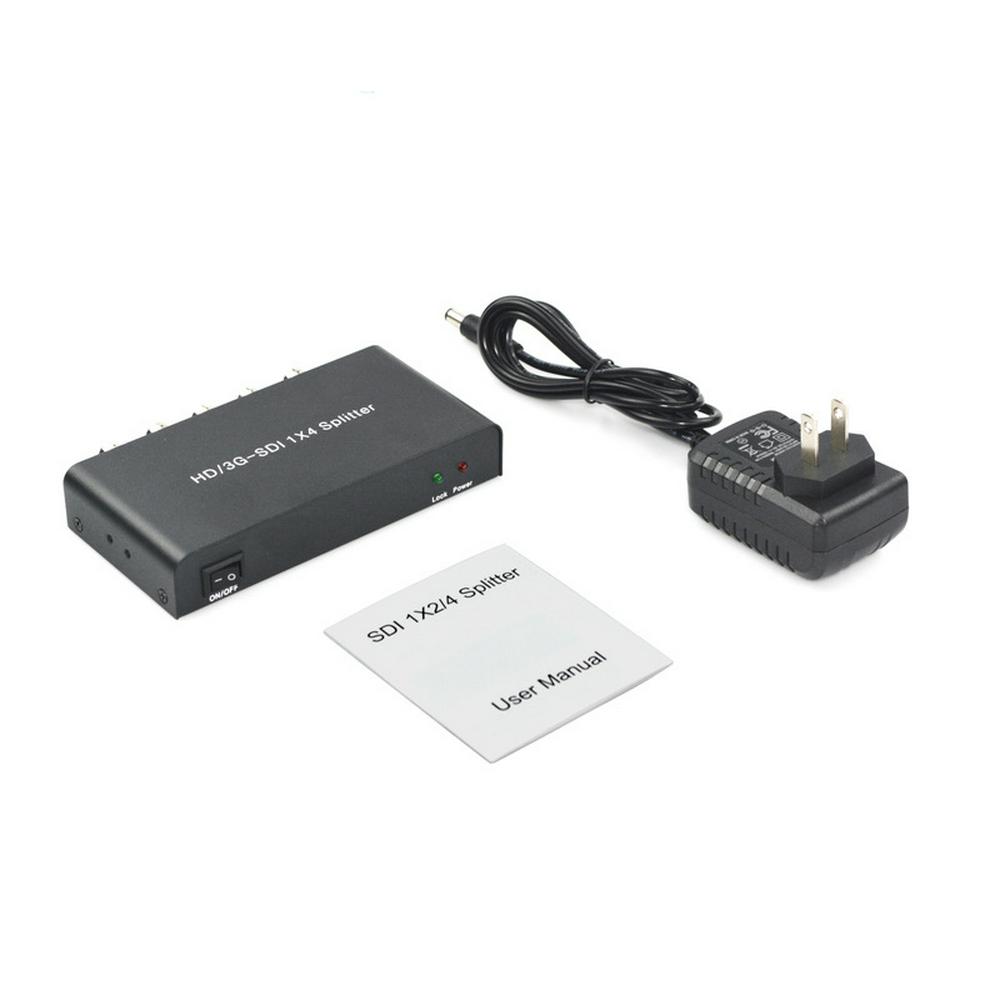

- 1 * Adapter
