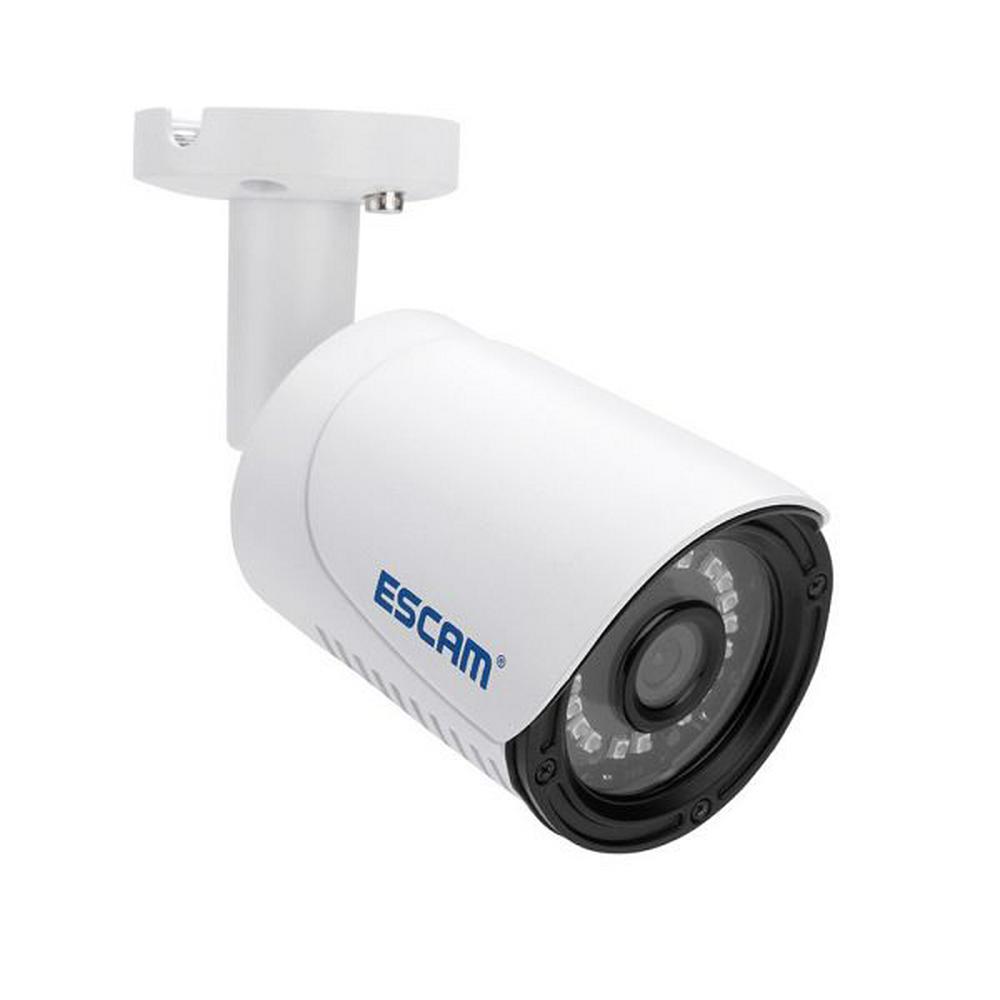

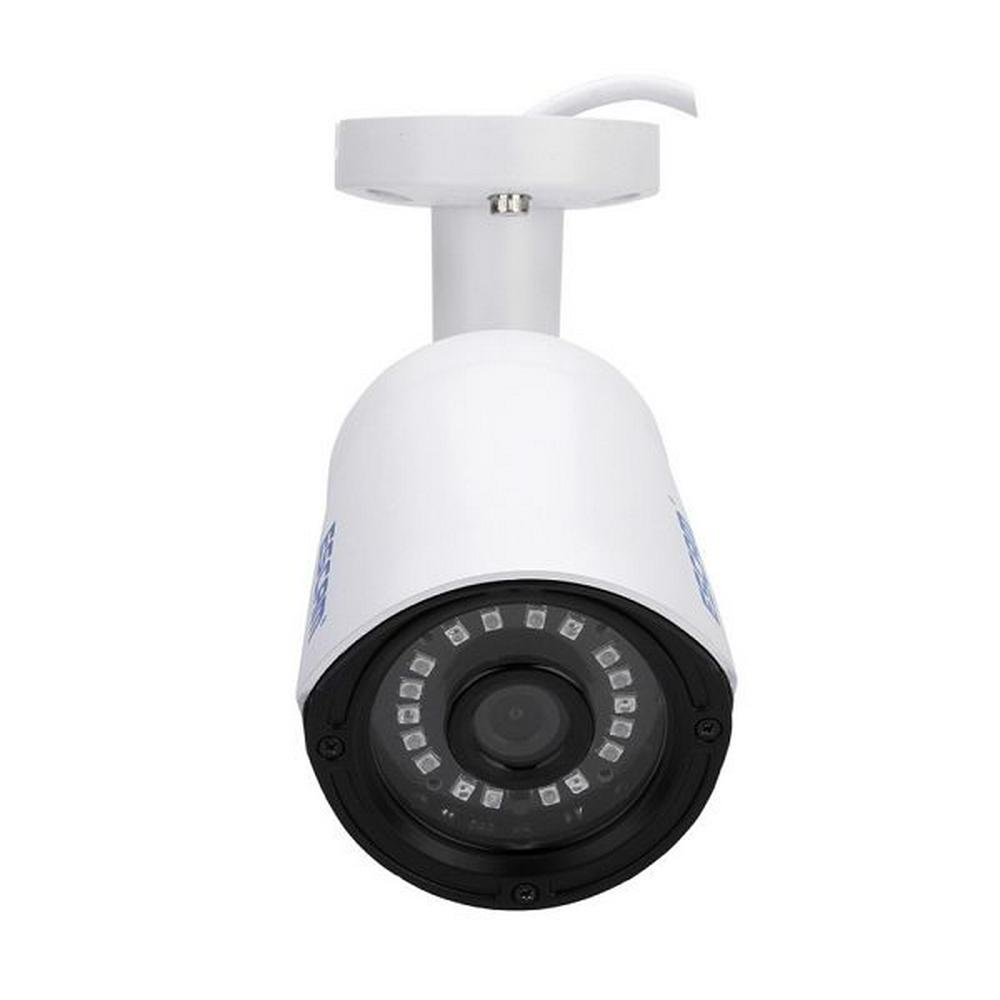

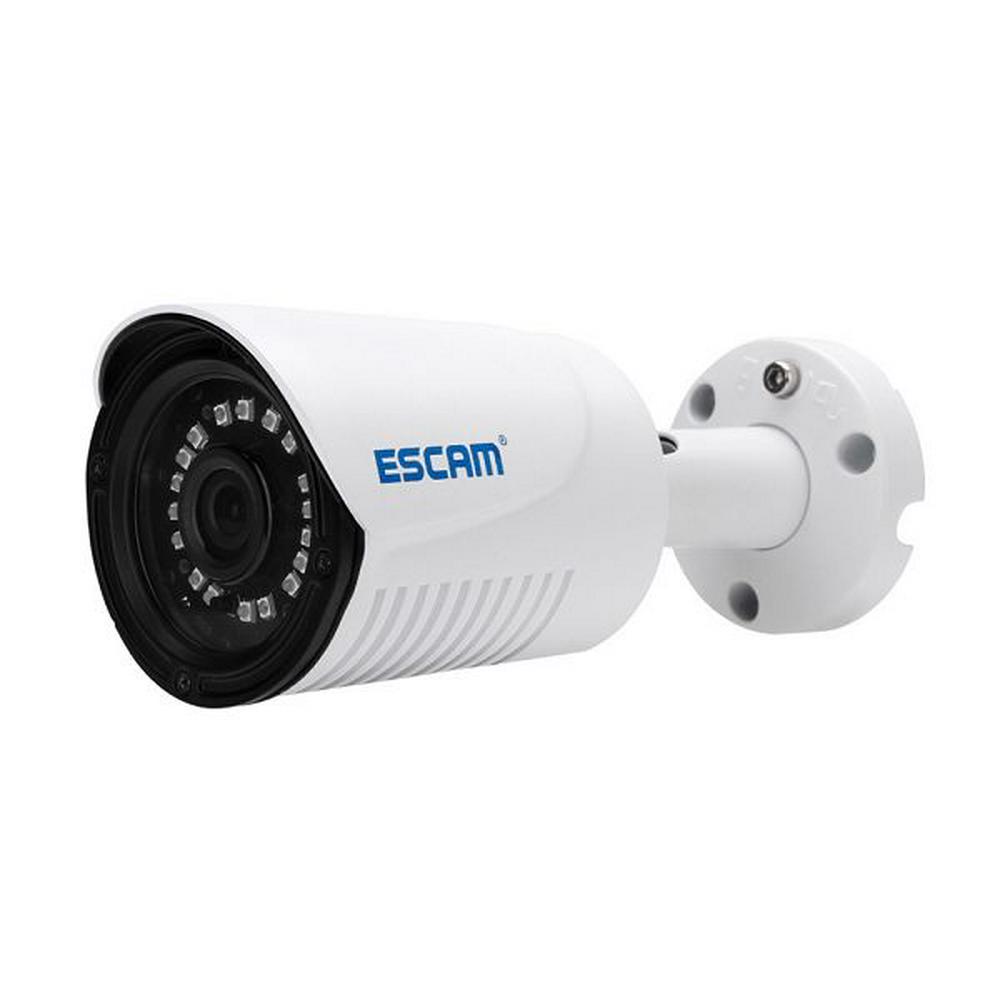

Escam PoE Camera QE07 Mini Bullet Camera Support Onvif 2.0 Dual Stream Waterproof 720P IP Camera
Sku
T-WLCam-1201
$49.55
| Qty | 1 | 3 | 10 | 20 | 40 |
|---|---|---|---|---|---|
| Price | $49.55 | $46.46 | $44.97 | $44.07 | $43.60 |
Sales Ends In
- Buyer Protection
- Full Refound if you don't receive your order
- Full or Partial Refund,If the item is not as described
Product Description
Features:
- 1/4” 1Megapixel progressive scan CMOS
- H.264 dual-stream encoding
- Max 25fps@720P(1280×720)
- Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS
- 3.6mm fixed lens
- Max. IR LEDs Length 15m
- IP66, IEEE802.3af POE included
| Model | ESCAM Plane QE07 |
| Camera | |
| Image Sensor | 1/4” 1Megapixel progressive scan CMOS |
| Effective Pixels | 1280(H)x720(V) |
| Scanning System Progressive | |
| Electronic Shutter Speed | 1/50s(1/60s)-1/100, 000s |
| Min. Illumination | Color: 0. 2Lux, B/W: 0.08Lux |
| S/N Ratio | ≥39dB |
| Camera Features | |
| Max. IR LEDs Length | Dual IR-CUT Filter auto switch, 18 pcs |
| Microcrystalline Array Led | IR Range 15m |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC/ HLC/ DWDR |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Privacy Masking | Up to 4 areas |
| Lens | |
| Focal Length | 3.6mm |
| Max Aperture | F1.4 |
| Angle of View | 62.2° |
| Mount Type | MTV mount |
| Video | |
| Compression | H.264 |
| Resolution |
720P(1280*720),D1(704*576), CIF(352*288) Main Stream 720P(1 ~ 25fps) |
| Frame Rate | Sub Stream D1/CIF(1 ~ 25fps) |
| Bit Rate | CBR/VBR, output bit rate range:48-3072kbps |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , NTP , PPPOE , SMTP , UPNP |
| ONVIF | ONVIF2.0 |
| Max. User Access | 4 users |
| Smart Phone | iPhone, iPad, Android |
| General | |
| Power Supply | DC12V, PoE (IEEE802.3af) |
| Temeperature | -10°C~50°C |
| Power Consumption | <6W |
| Ingress Protection | IP66 |
| Dimensions | 185mm x77mm x77mm |
| Weight | 360g |
| Package size | 190mm x90mm x95mm |
| Gross Weight | 480g(Note: in kind prevail) |
| Approvals | CE FCC RoHS |
Package included
- 1 x Network Camera (Line length:59cm)
- 1 x Screw Pack
- 1 x Waterproof Cap
- 1 x Power Adapter (AC 100~240V/EU/AU/US/UK Plug/120cm-cable)
- 1 x English User Manual
Note:POE camera must be work with POE switch or POE injector if you don't want to power adapter.
