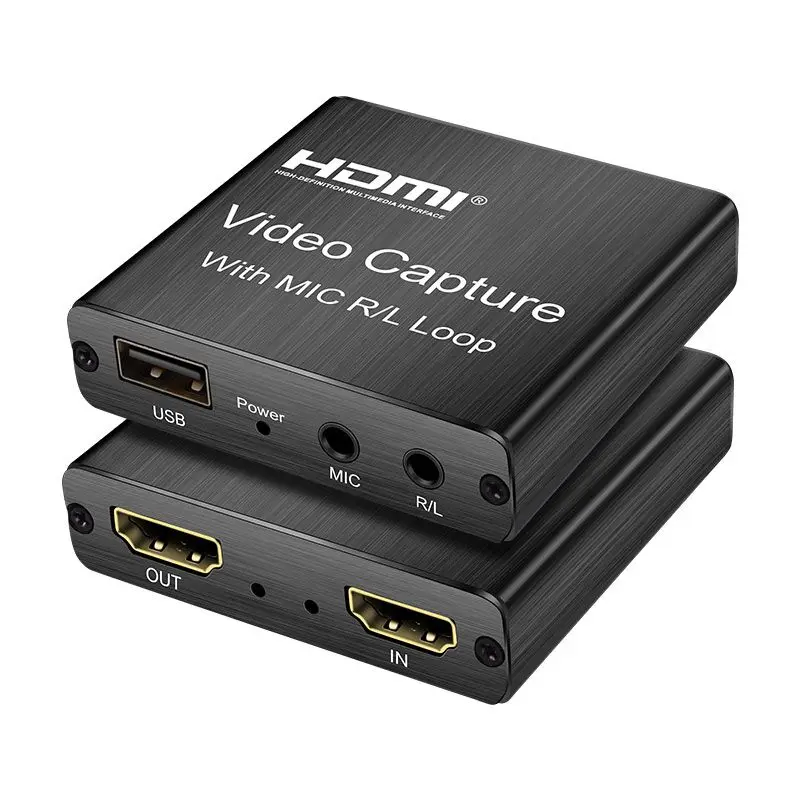

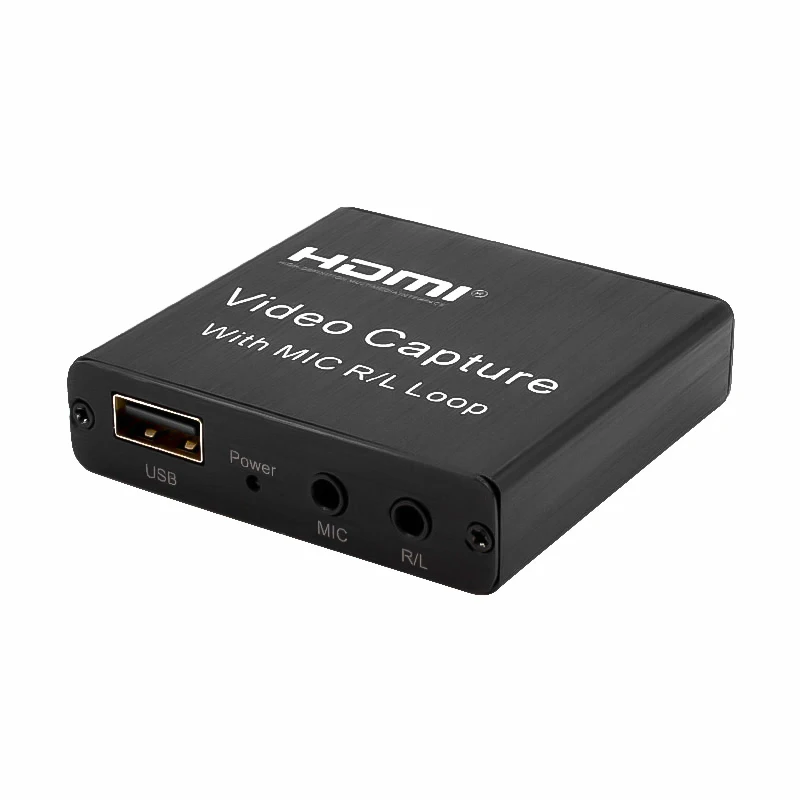

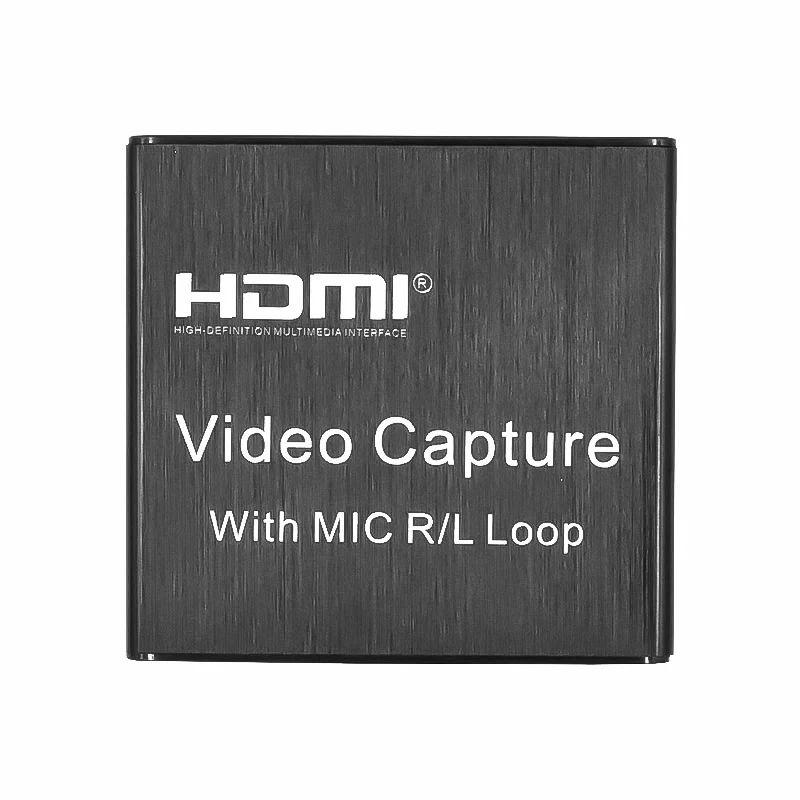

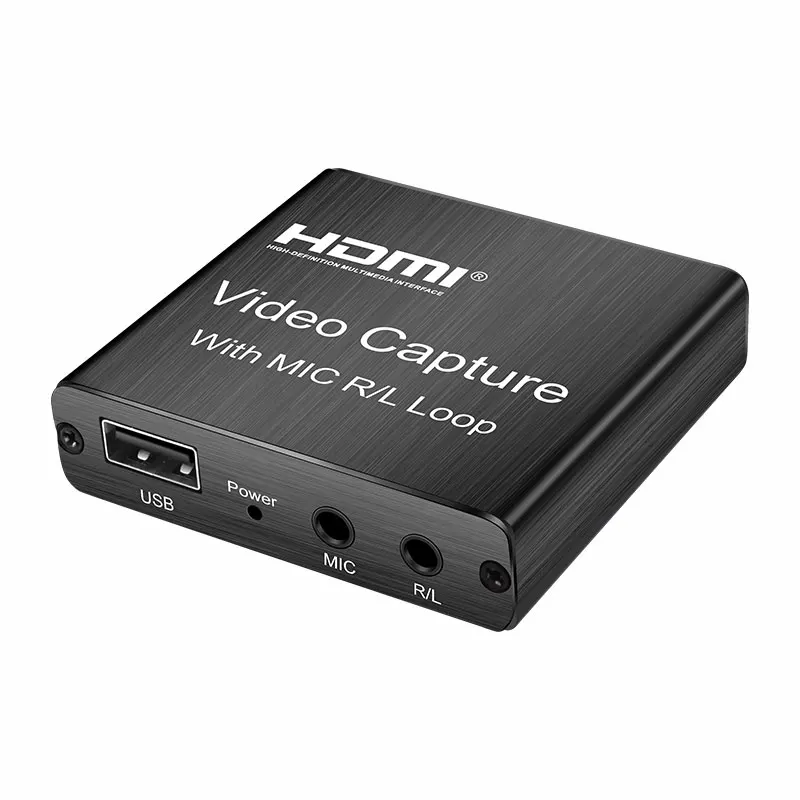

Description:

This USB2.0 capture card can collect HDMI audio and video. HDMI audio and video signals can be

transmitted to the computer and smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:

l Support input resolution up to 4K

l Support output resolution up to 1080P

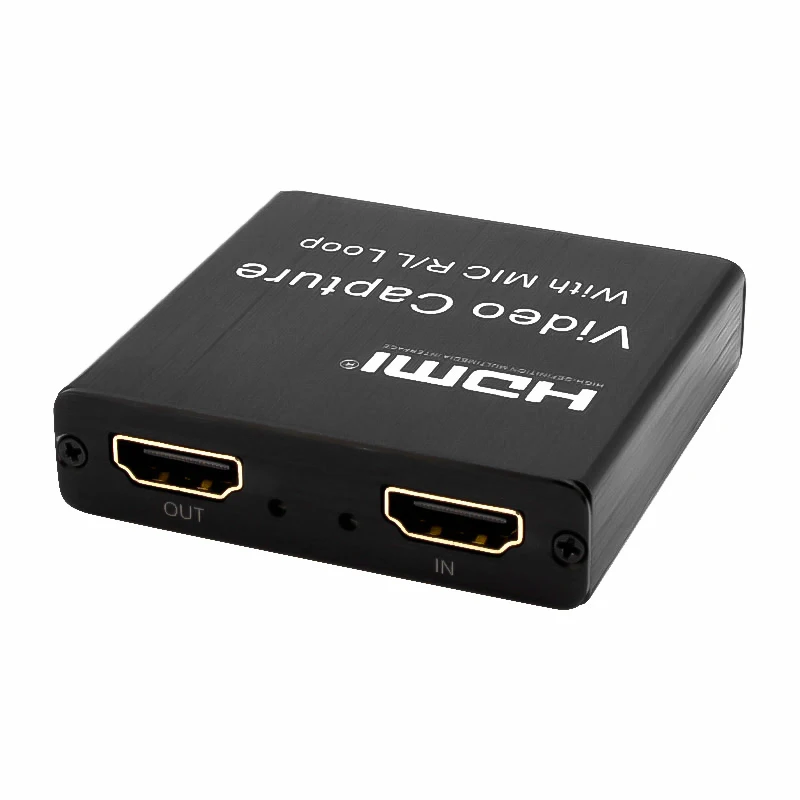

l One HDMI input, One HDMI loop out, Watching and Recording

l One Microphone input

l One 3.5mm stereo output

l Support 8/10/12 bit color depth

l Support AWG26 HDMI standard cable, the maximum input transmission distance is 15 meters

(1080P and below resolution)

l Support most acquisition software, such as for VLC, OBS, Amcap, etc.

l Support for Windows, for Android and for MacOS

l Complies with USB video UVC specifications

l Complies with USB audio UAC specifications

l No external power supply, compact size, easy to Carry

Specification:

HDMI resolution.....................Maximum input support 4K

Video input format ...................... 8/10/12-bit color depth

Video output mode..............................................MJPEG

Video output resolution........ Maximum output resolution

1080P @ 30Hz

Support audio format ............................................ LPCM

Input cable length. ≤15m, AWG26 HDMI standard cable

Maximum working current...........................0.4A / 5V DC

Operating temperature range...................(-10 to + 55 ℃)

Product size(LxWxH).................................68x27x9(mm)

Product weight...........................................................50g

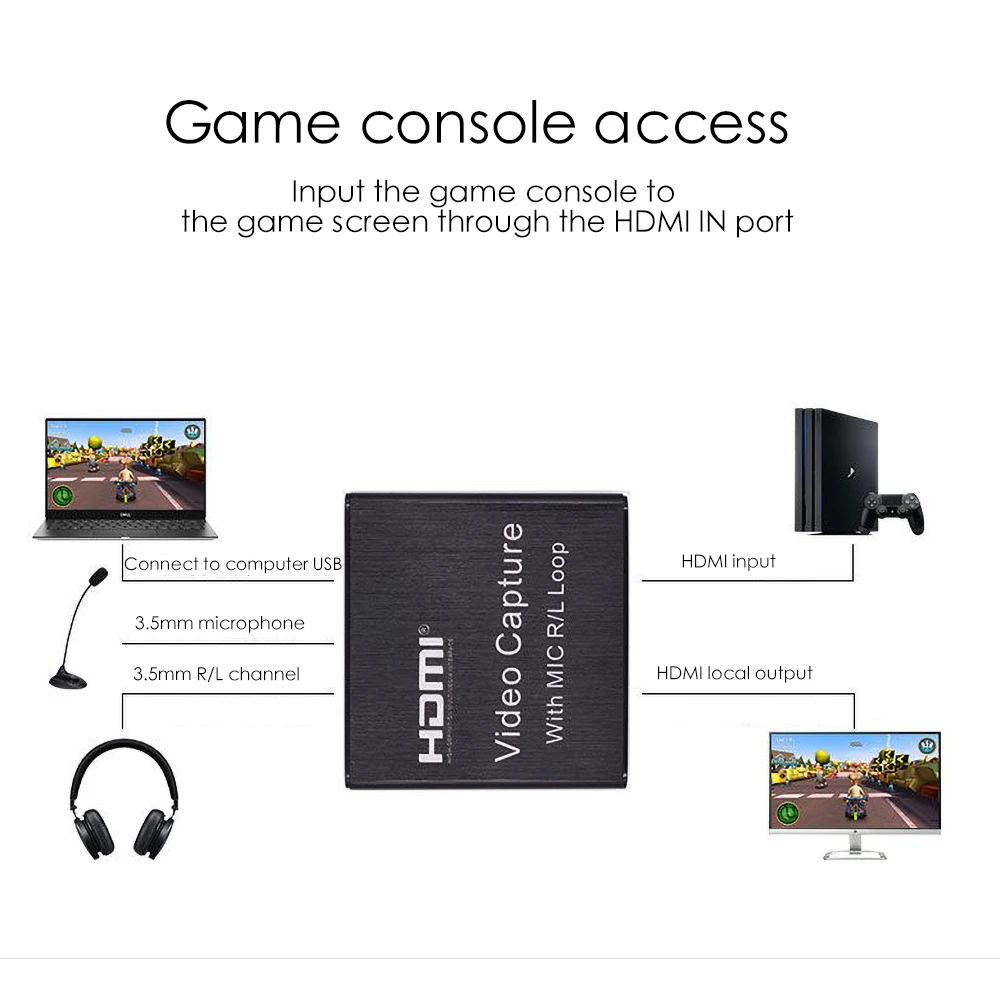

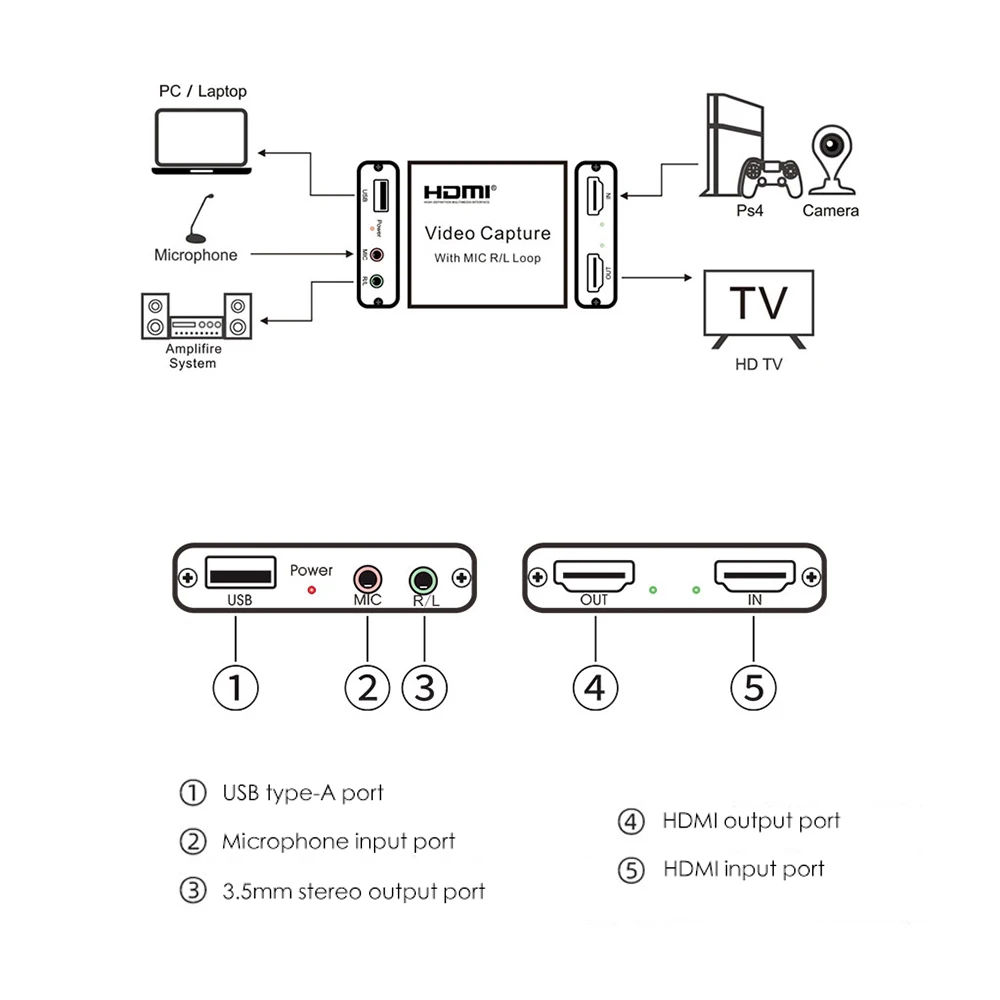

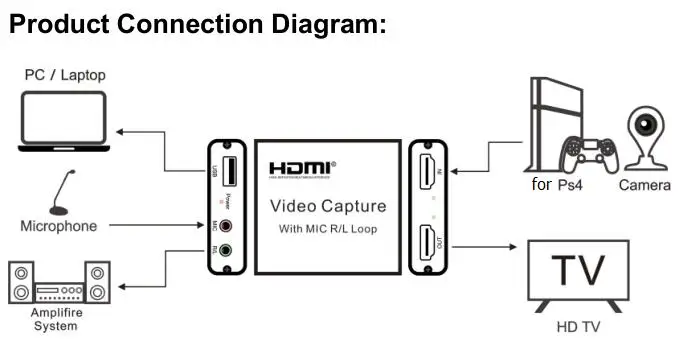

Connection Operation:

1. Connect the USB port of the video capture card to the USB port of the computer.

2. Use the HDMI cable to connect the “HDMI IN”interface of the capture card to the HDMI output port of the video source device to be captured, and use another HDMI cable to connect the “HDMI OUT” interface of the video capture card to the display device,

3. Insert the microphone into the MIC interface of the capture card

4. Connect the headset or sound system to the R/L interface of the capture card, and the preliminary installation and connection work is completed.

Note:

Computer hardware configuration requirements

CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above

Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT35M or above

Storage: 4G RAM

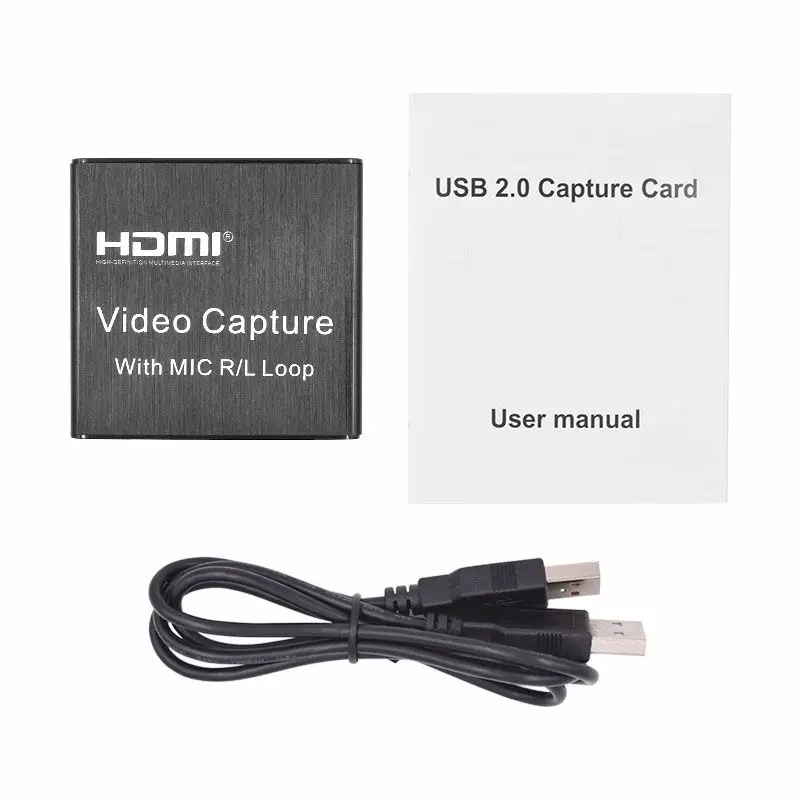

Package included:

1x HDMI to USB 2.0 Video Capture Card

1x User Manual
