Features

One HDMI input, One HDMI loop out, Watching and Recording

Adopting USB 3.0 channel Recoding of high-speed Full HD Screen

Design of Low-power, No additional power supplied.

No need to install the driver, plug and play

Specification

Resolution:

720×480 (60p),720×576(50p)，

1280×720 (50p),1280×720  (60p)，

1920×1080 (50p),1920×1080(60i)，1920×1080 (24p),1920×1080(25p)，1920×1080 (30p),1920×1080(50p)，1920×1080 (60p)

System Requirement

PC..............Intel Core i5-3400+NVIDIA GT630

Laptop............Intel Core i7-U 2.0GHz+NVIDIA GT735

Mac................... i5 quad-core or above，VGA card supporting DirectX 10,Sound Card,4GB RAM

USB 3.0 port…………………..… intel chipset with native USB3.0 host controller (Renesas fresco...)

Software compatibility

OBS Studio(Windows，OS X)；

Windows Media Encoder(Windows)；

Adobe Flash Media Live-Encoder(Windows，OS X);

Real Producer Plus(Windows);

VLC(Windows，OS X Linux);

Quick Time Broadcaster(OS X);

Quick Time player(OS X);

Wirecast (Windows,OS X);

vMix(Windows);

Potplayer(windows)and etc;

Support system…..……..Windows 7, 8, 10，Mac OS X 10.9 or more，Linux

Record quality…………….....Max 1080p 60fps

Size(LxWxH)……………..…….80x52x16(mm)

USB3.0 Cable Length……….…..….…55(mm)

Weight.......................................................40G

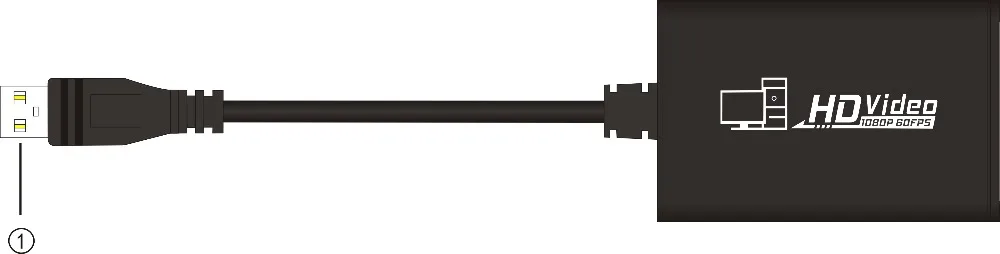

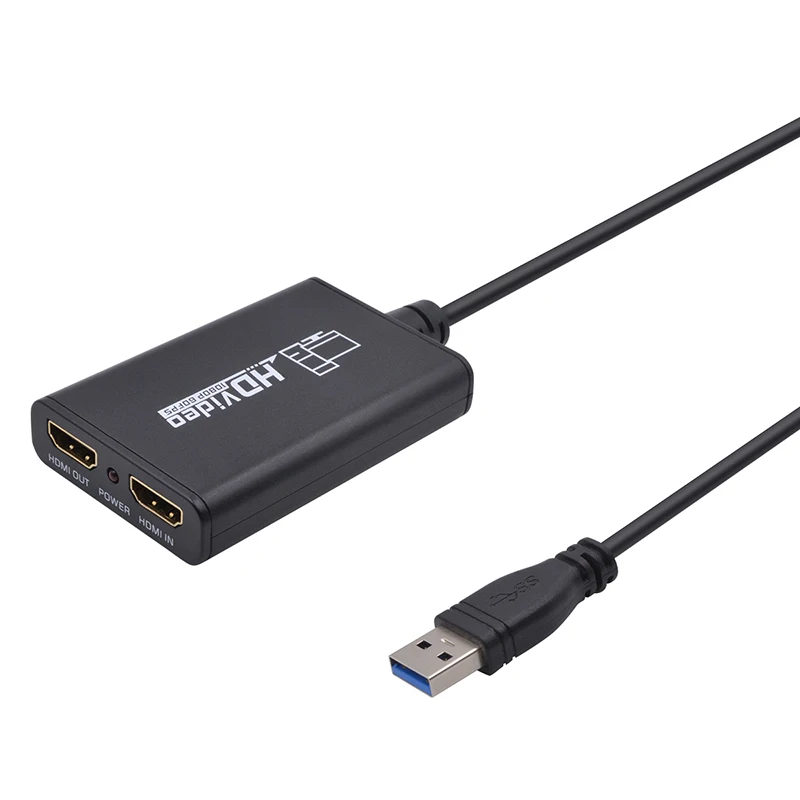

Interface Description

① USB3.0 TYPE-A Port----- Connect To USB3.0 Port On The Computer

②HDMI Output Port-------------- Use the HDMI Cable Connect To The Monitor

③Power Indicator----- Lights Up After Connecting To The USB Port On The Computer

④HDMI Input Port---------------Use The HDMI Cable Connect To The HD Video Source

Package

Capture……………………….…..…1pcs

User’s Manual………………………1pcs

Note!

Don’t use HUB Or USB extender cables.

You must connect to the USB3.0 port of your computer

The compression mode of recording is MJPEG, and the picture will have some unclearly.

Low computer configuration will be cause to   irregular flicker or black screen

It is normal for the recorded picture and the original picture not to be synchronized
