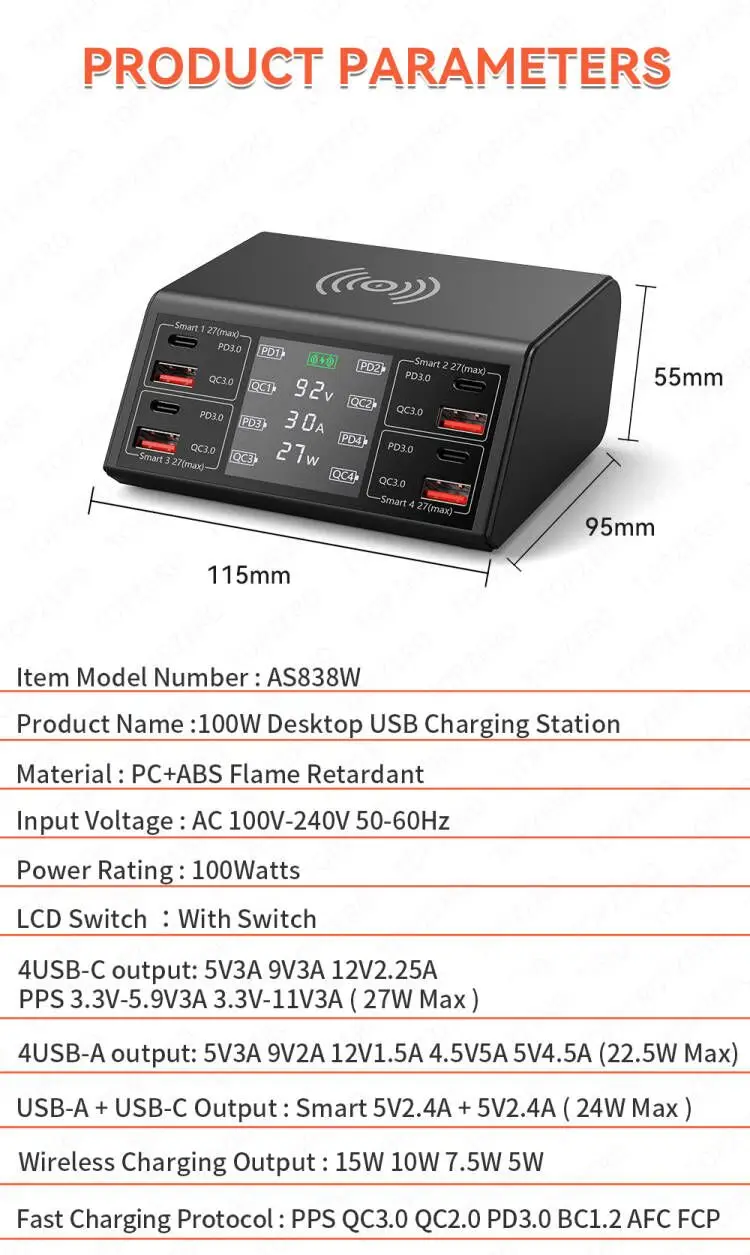

Specification:

Product Name : 4QC - 4PD 100W USB Charging Station

Product Mode : AS838W

Rated power : 100 Watts

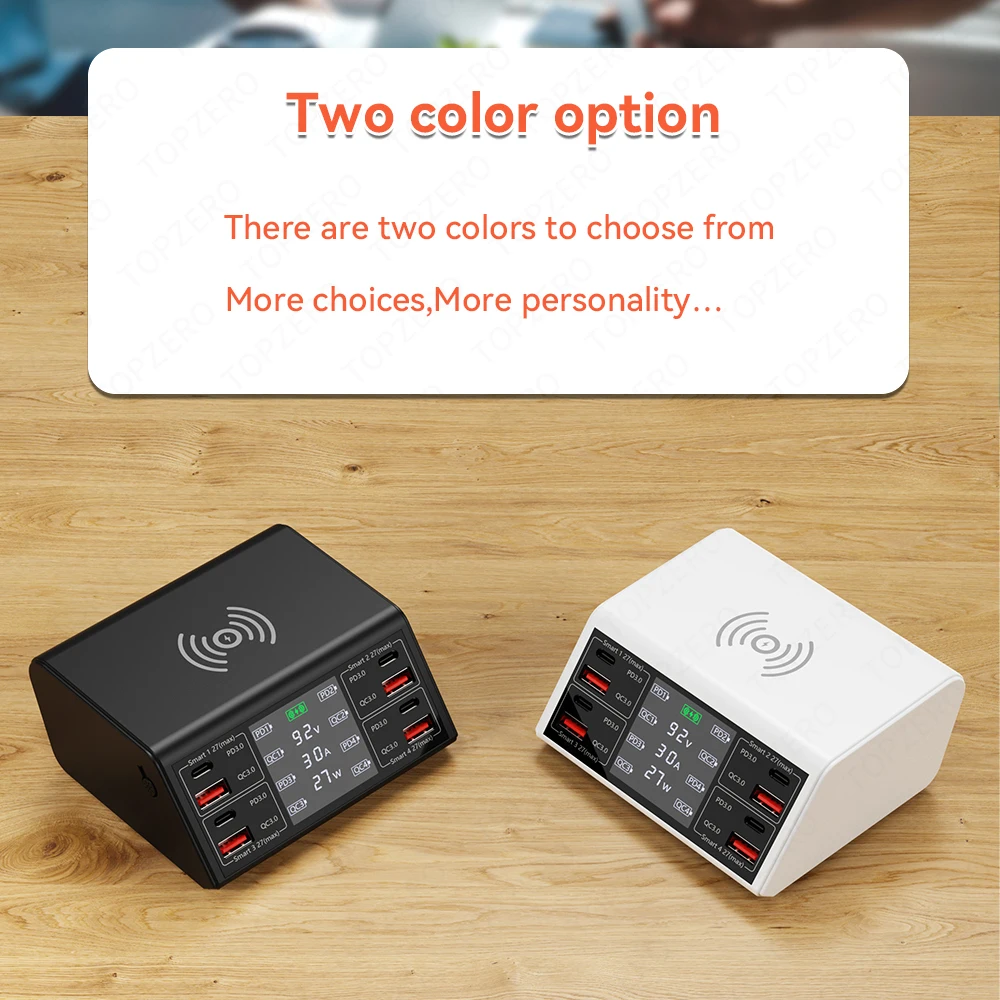

Product Color : Black & White

Material : PC + ABS fire retardant

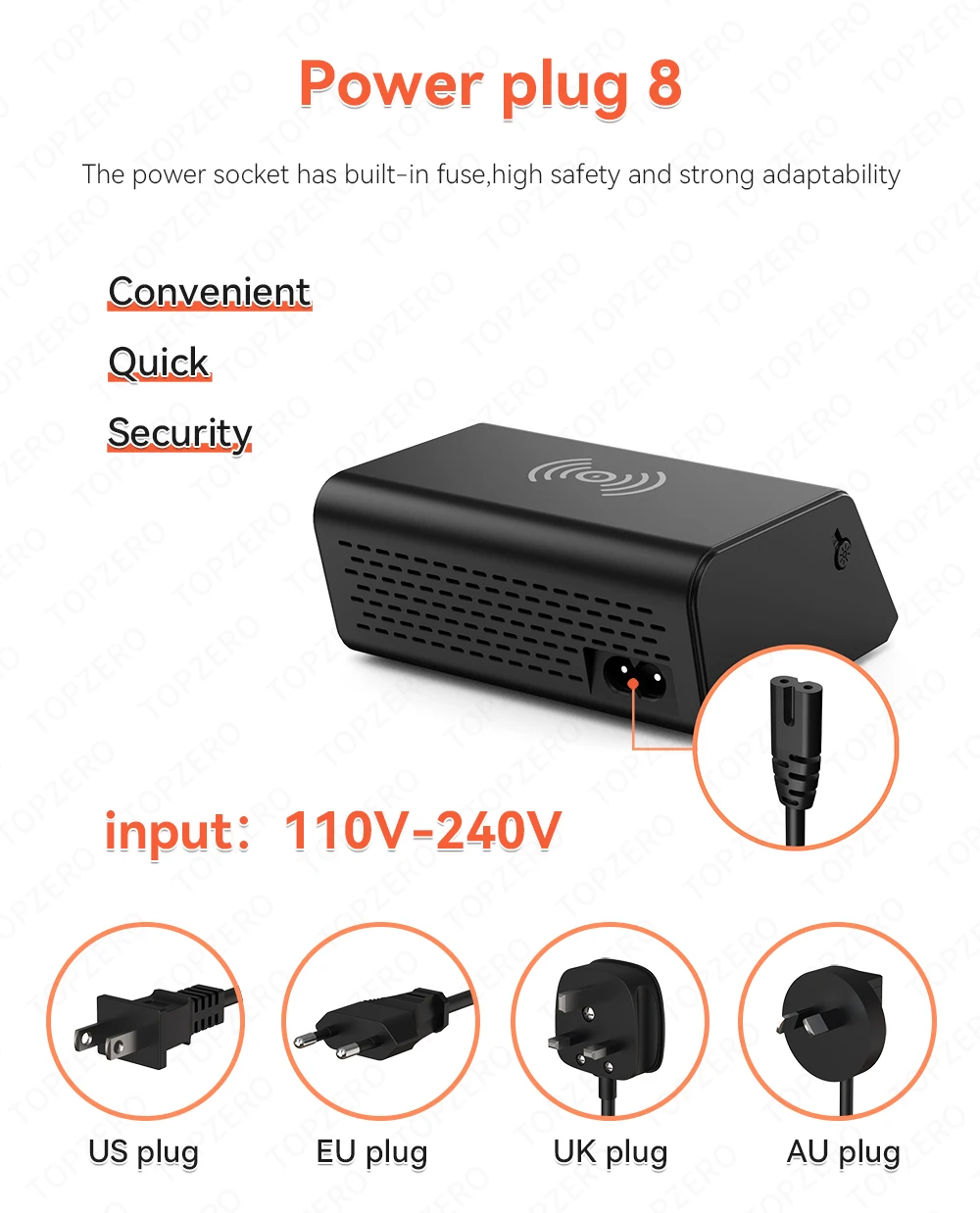

Input voltage : AC 100V-240V 50-60Hz

Cooling Method : Safe Cooling Aluminum Sheet

Automatic identification : adaptive voltage and current

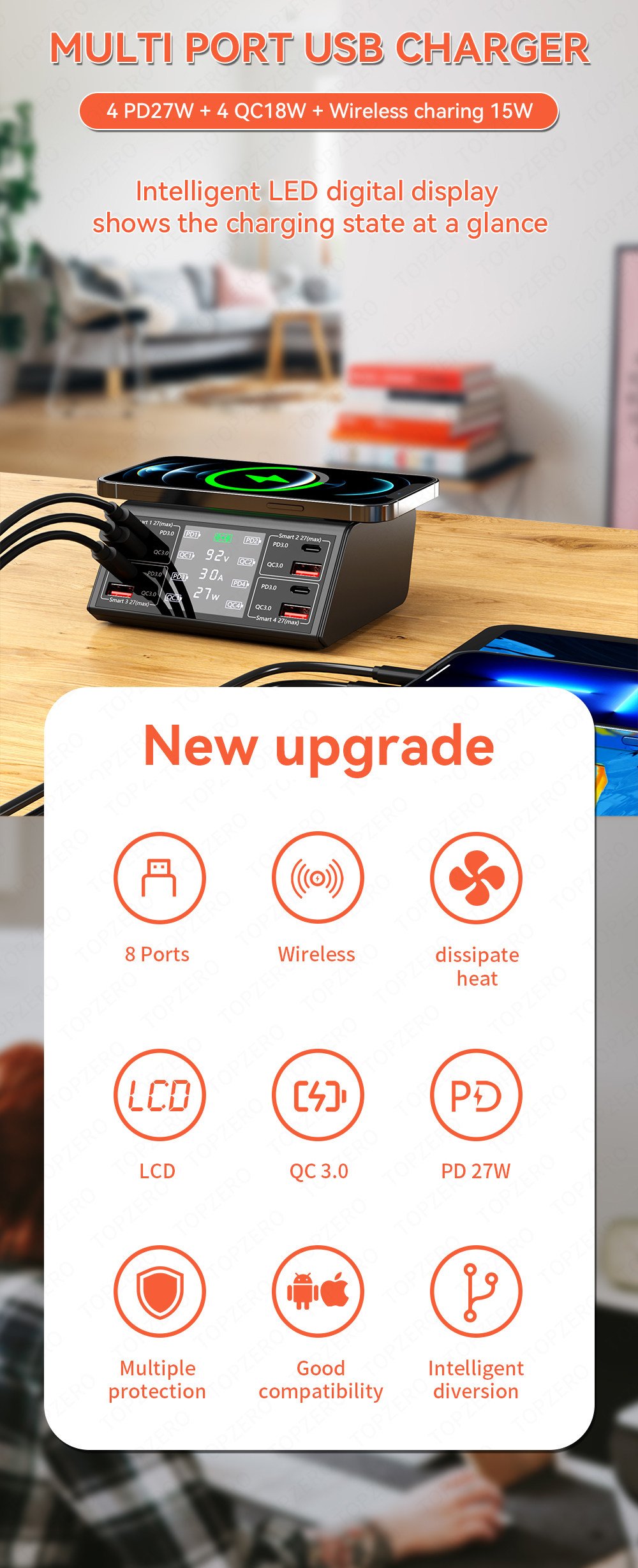

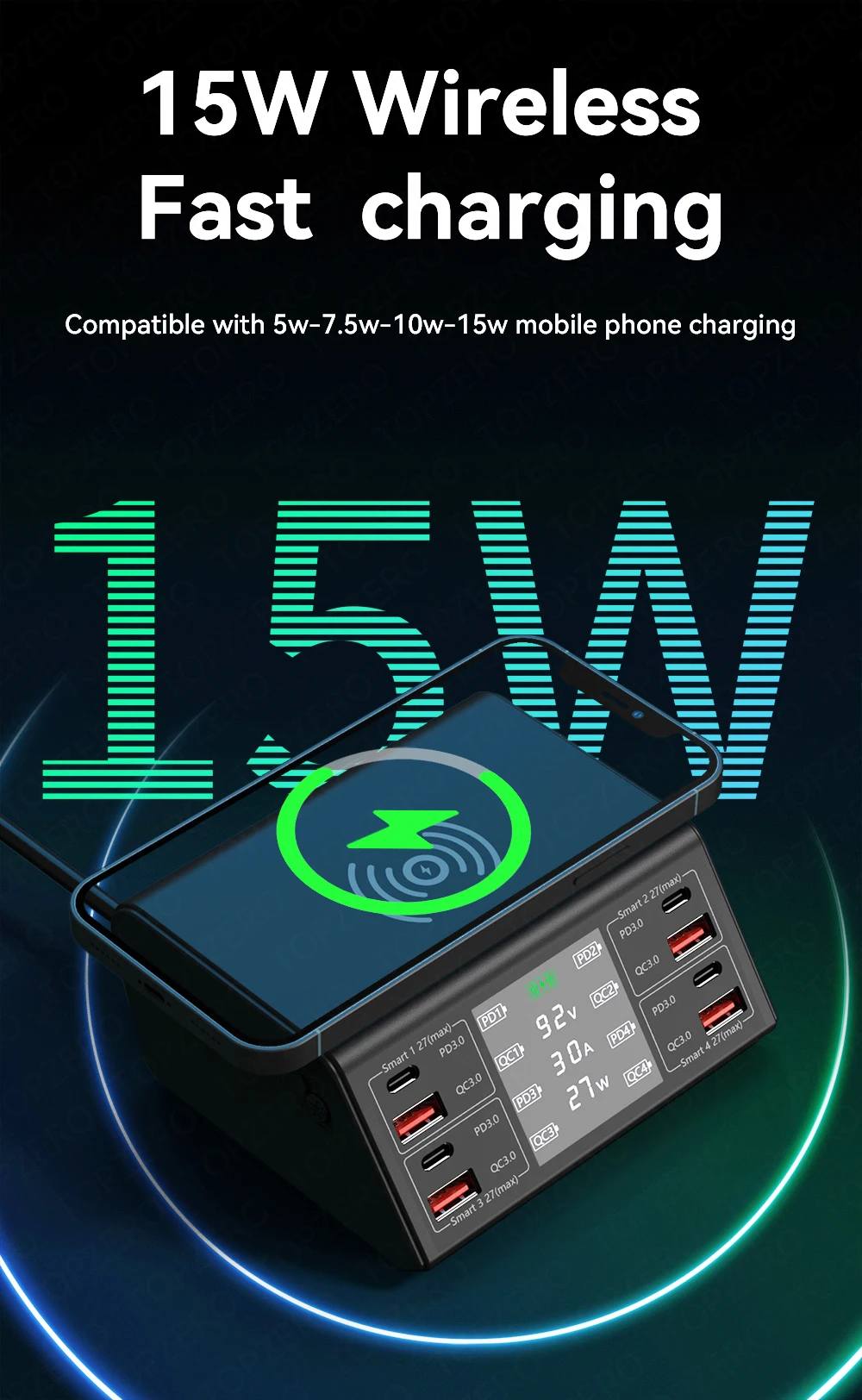

Wireless charging : 15W 10W 7.5W 5W

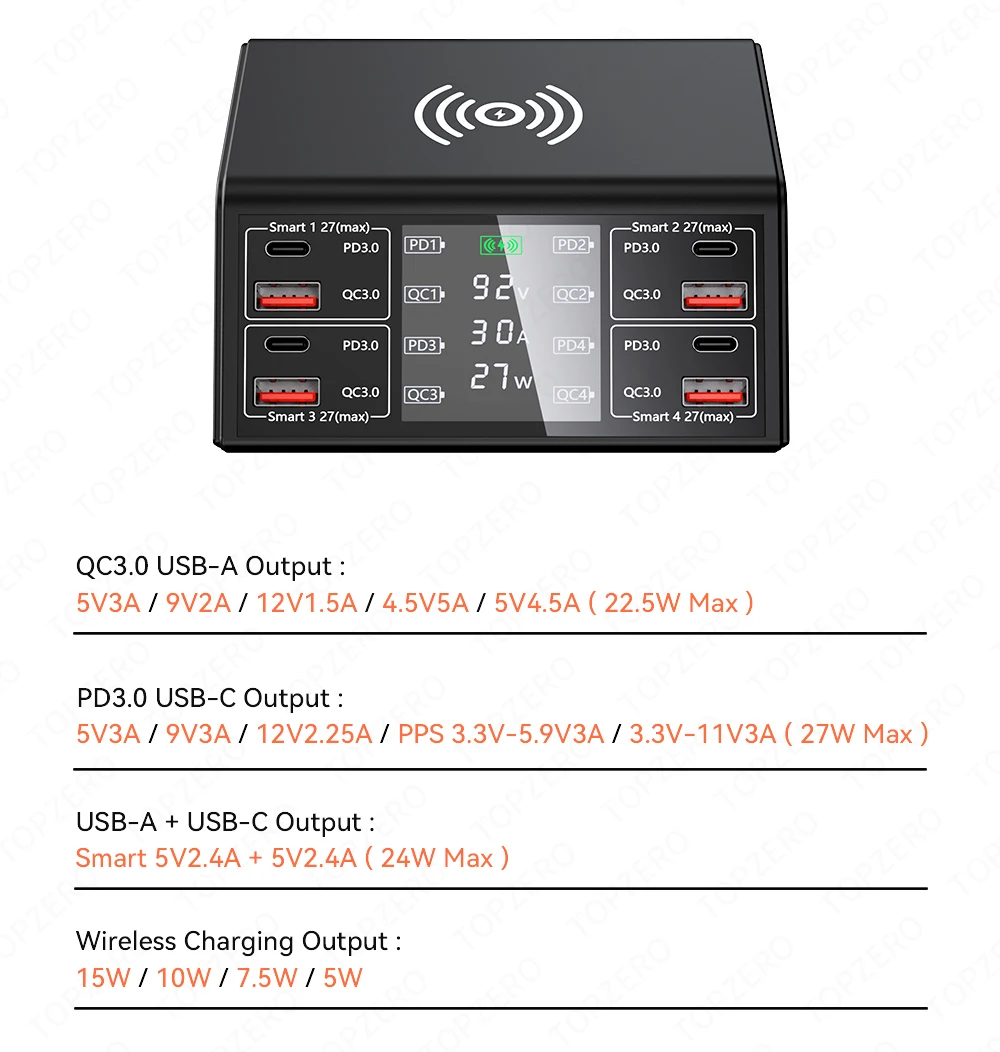

4 - QC3.0 USB-A Output : 5V3A 9V2A 12V1.5A 4.5V5A 5V4.5A ( 22.5W Max )

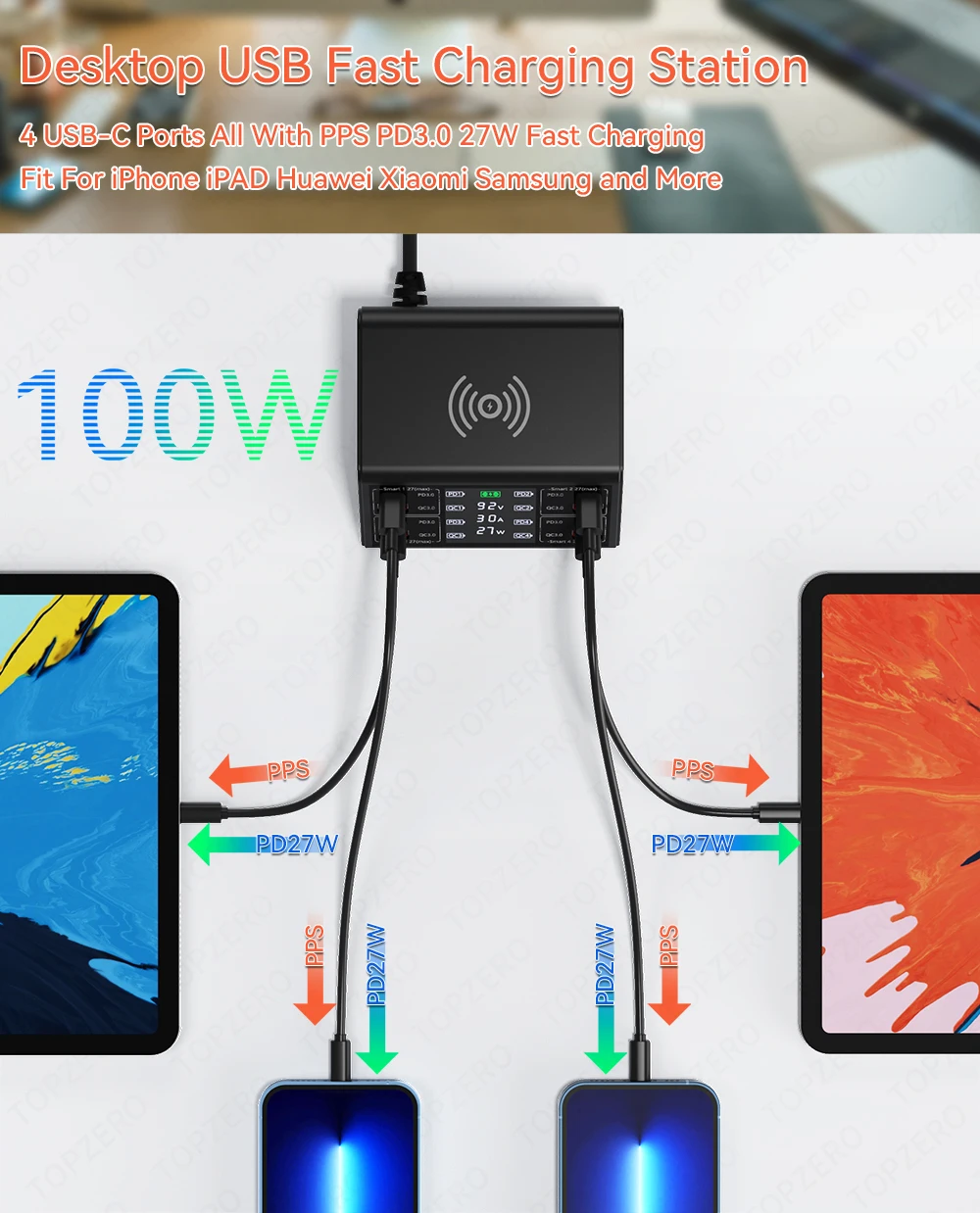

4 - PD3.0 USB-C Output : 5V3A 9V3A 12V2.25A PPS 3.3V-5.9V3A 3.3V-11V3A ( 27W Max )

USB-A + USB-C Output : Smart 5V2.4A + 5V2.4A ( 24W Max )

Fast Charge Protocol : PD3.0 QC3.0 AFC FCP SFCP PPS BC1.2

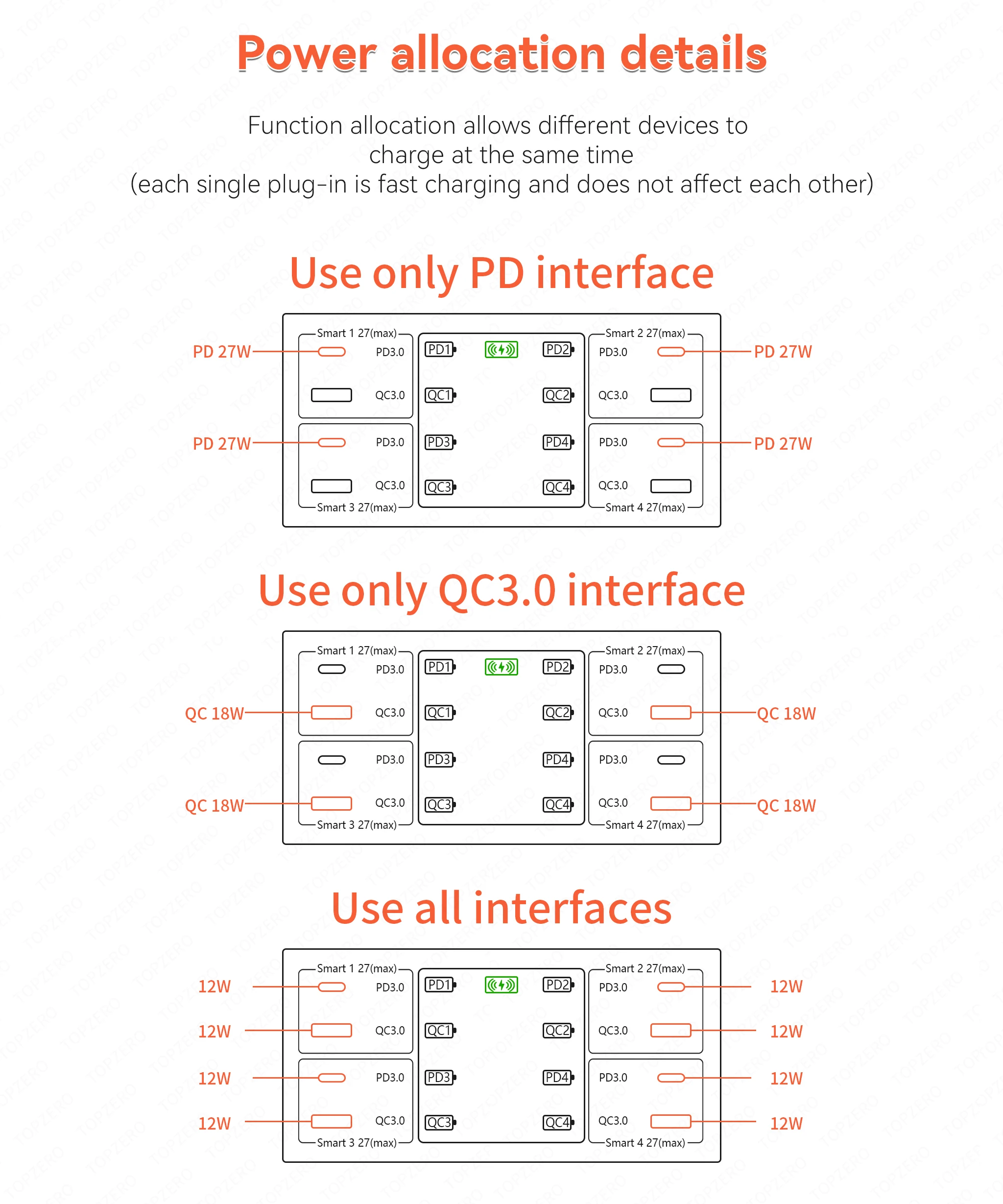

Output :

① USB-A1 : 5V3A 9V2A 12V1.5A 4.5V5A 5V4.5A ( 22.5W Max )

USB-C1 : 5V3A 9V3A 12V2.25A PPS 3.3V-5.9V3A 3.3V-11V3A ( 27W Max )

USB-A1 + USB-C1 : Smart 5V2.4A + 5V2.4A ( 24W Max )

② USB-A2 : 5V3A 9V2A 12V1.5A 4.5V5A 5V4.5A ( 22.5W Max )

USB-C2 : 5V3A 9V3A 12V2.25A PPS 3.3V-5.9V3A 3.3V-11V3A ( 27W Max )

USB-A2 + USB-C2 :Smart 5V2.4A + 5V2.4A ( 24W Max )

③ USB-A3 : 5V3A 9V2A 12V1.5A 4.5V5A 5V4.5A ( 22.5W Max )

USB-C3 : 5V3A 9V3A 12V2.25A PPS 3.3V-5.9V3A 3.3V-11V3A ( 27W Max )

USB-A3 + USB-C3 : Smart 5V2.4A + 5V2.4A ( 24W Max )

④ USB-A4 : 5V3A 9V2A 12V1.5A 4.5V5A 5V4.5A ( 22.5W Max )

USB-C4 : 5V3A 9V3A 12V2.25A PPS 3.3V-5.9V3A 3.3V-11V3A ( 27W Max )

USB-A4 + USB-C4 : Smart 5V2.4A + 5V2.4A ( 24W Max )

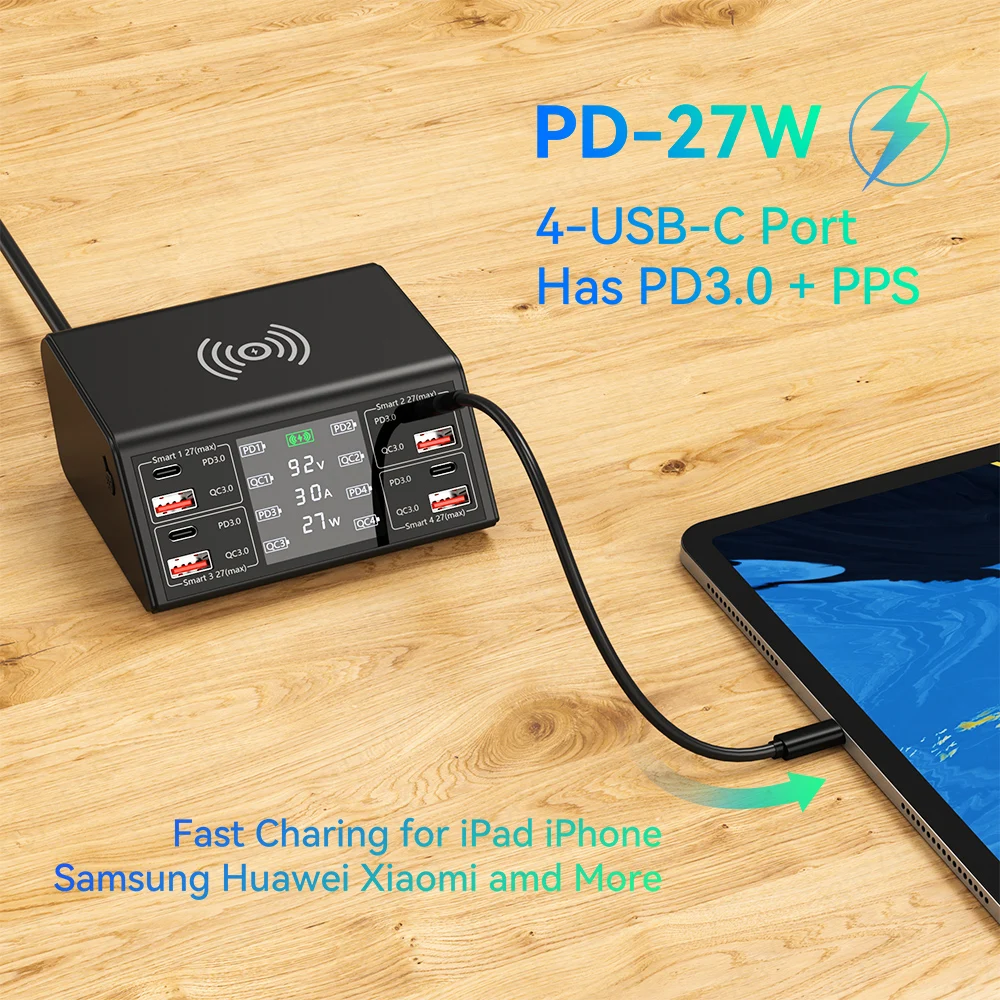

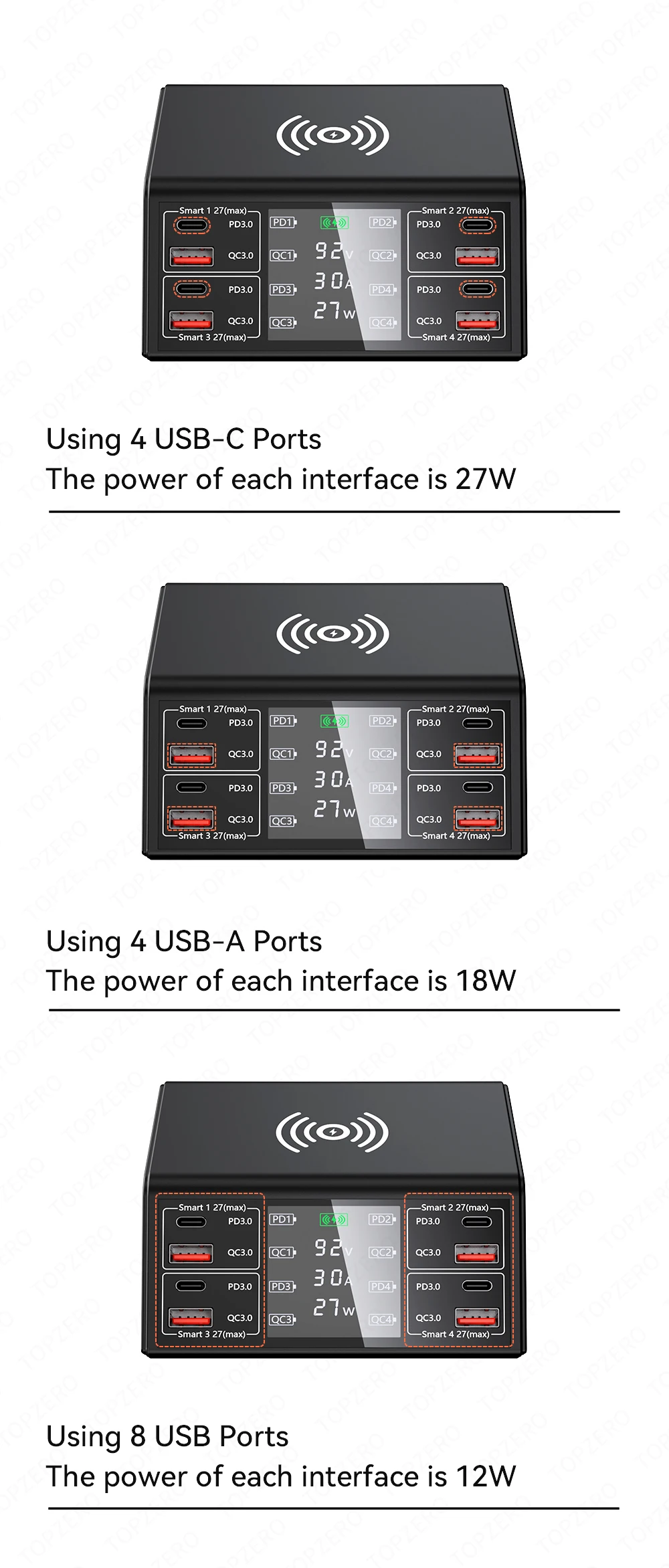

⑤ Using 4 USB-C Ports

C1 - 27W C2 - 27W C3 - 27W C4 - 27W

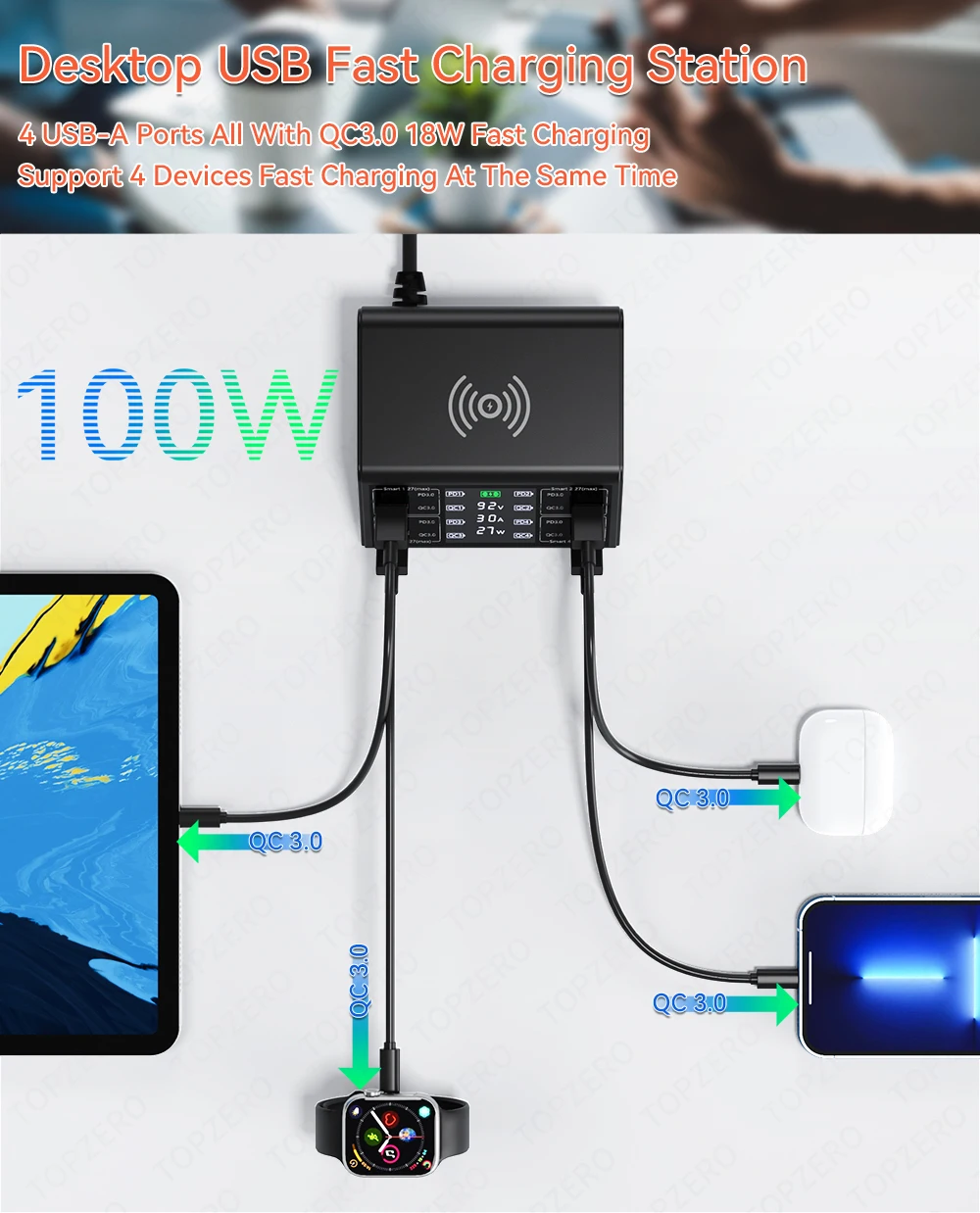

⑥ Using 4 USB-A Ports

A1-18W A2-18W A3-18W A4-18W

⑦ Using 8 USB Ports

A1+C1=Smart 5V2.4A + 5V2.4A ( 24W Max )

A2+C2=Smart 5V2.4A + 5V2.4A ( 24W Max )

A3+C3=Smart 5V2.4A + 5V2.4A ( 24W Max )

A4+C4=Smart 5V2.4A + 5V2.4A ( 24W Max )

Notice:

▶Please charge the equipment that meets the specified voltage and current in strict accordance with the product manual, otherwise it will easily cause the charger to short-circuit or even burn!
