Main parameters:

1.System

Operating System:Embedded LINUX

2.Video&Audio

IP camera outpute: 9 channel Bandwidth of Network Video:32Mbps Resolution:8 x 1080P/25fps; 8 x 960P/25fps

3.Display

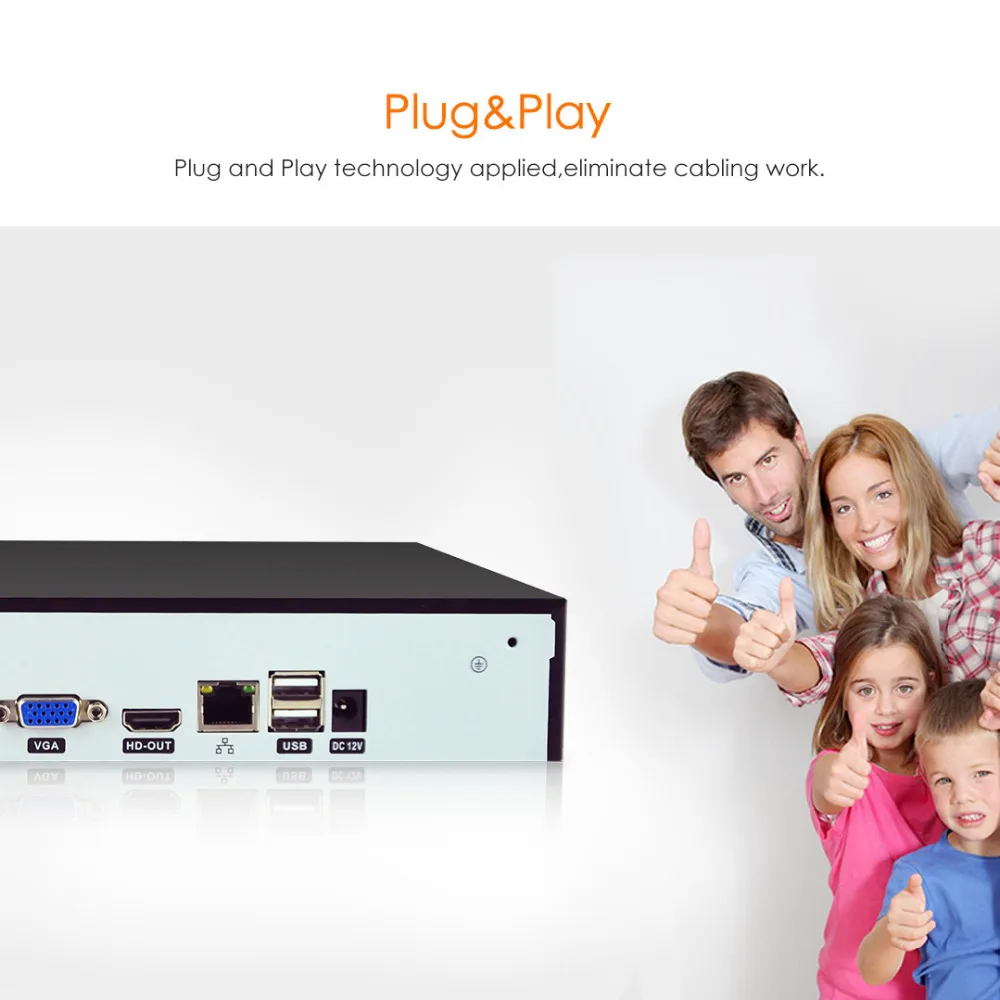

Interface: 1.HDMI, 1 VGA User interface: support 16-bit true color graphical menu interface and mouse operation Resolution: 1024 x 768;1280 x 720; 1280 x 1024;1440 x 900;1920 x 1080 Display Split: 1/4/8 OSD: Channel title, Time, Video loss, Camera lock, Recording

4.Recording

Video Compression:H.264 Audio Compression:G.711a Record Mode:Manual, Auto(Regular(Continuous), Alarm), Off Record Interval:1~120min (default: 60 min), Pre-record: 1~30sec

5.Alarm

Trigger Events: Recording, Alarm, Video Push, Email, Buzzer Video Detection: Video Blind, Video Loss Abnormal: HDD loss, Low HDD capacity, Net disconnection, IP conflict, HDD error

6.Playback & Backup

Sync Playback: 4 x 960P/25fps; 2 x 1080P/25fps Search Mode: Time/Date, Alarm, Exact search (accurate to second) Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom Backup Mode: USB Device / Network

7.Network

Ethernet: RJ-45 port (10/100M) Network Functions: HTTP, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS, FTP, RTSP, SMTP, 3G, Wifi Mobile Phone: CamViews (IPhone, IPad, Android) Max.User Access: 10 users

8.Storage

Internal HDD: 1 SATA ports, up to 4TB Auxiliary Interface USB Interface: 2 ports, USB2.0

9.General

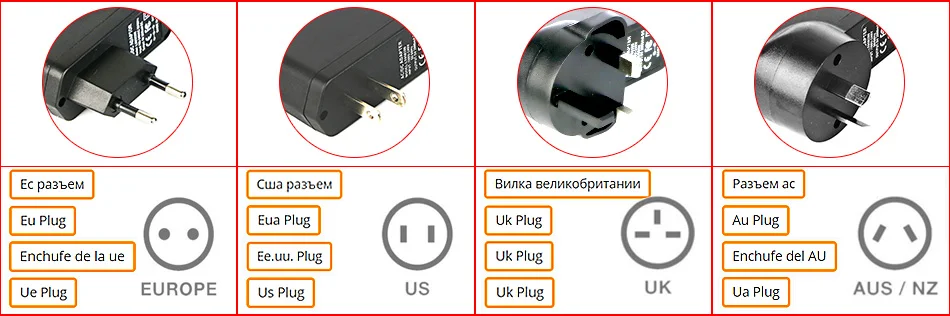

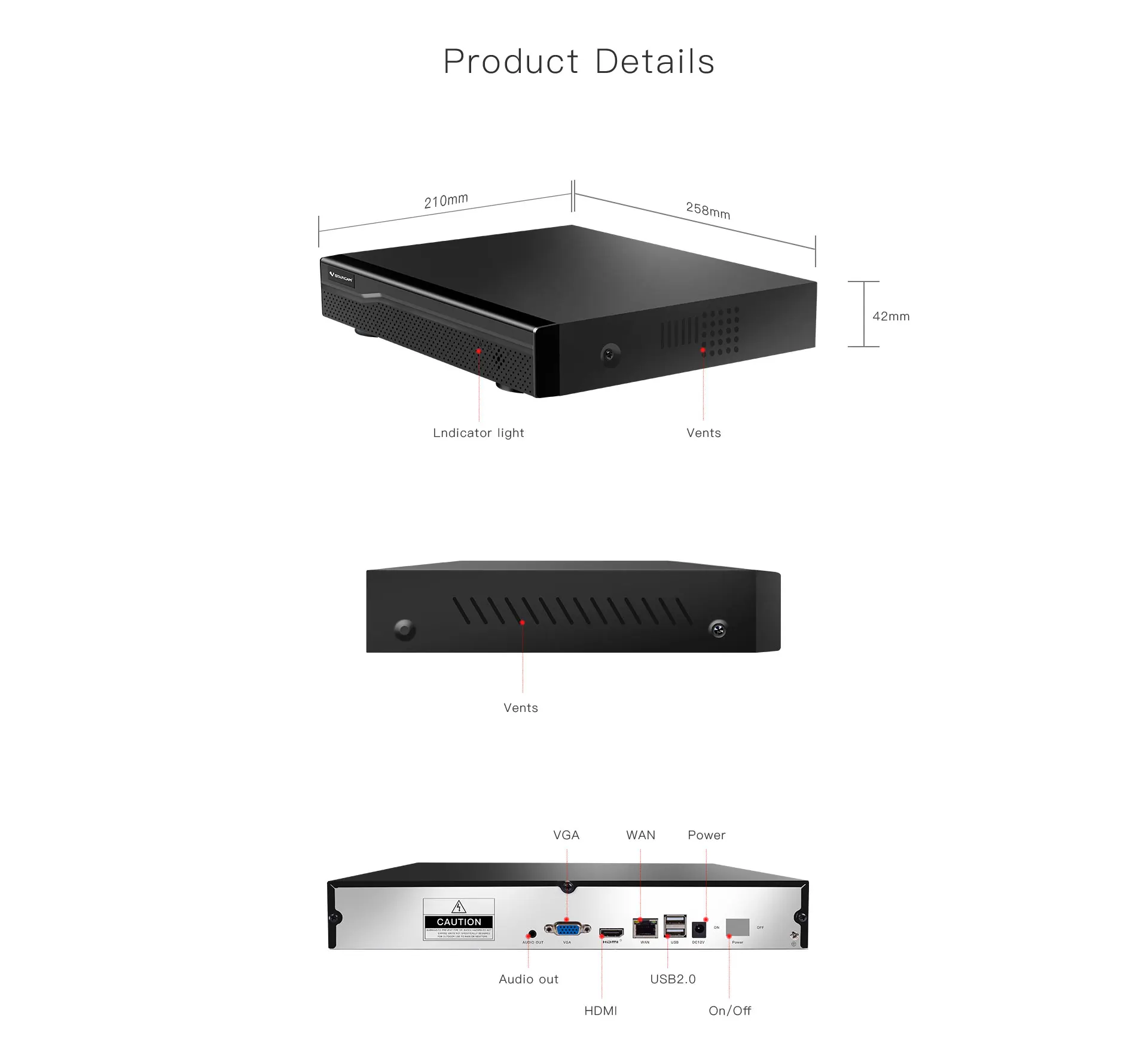

Power Supply: DC12V/2A Power Consumption: 10W(without HDD) Working Environment: -10 ~+55°C / 10~90%RH / 86~106kpa Dimension(W*D*H): 1U，255*244*42 (mm) Weight: 1.0-1.5kg(without HDD)
