Feature:

4K HDMI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation and powerful functions.

It can capture a single high-definition HDMI video signal;

The recorded video signal can reach 1080p/60Hz, HDMI input supports 4K/30Hz;

Support for MJPEG and for YUY2;

Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;

Some for win7 need to install the driver;

Compatible with for Windows 7, 8, 8.1, 10 or later, for Linux OS, for M-ac OS operating systems;

USB3.0, 300-350MB/s bandwidth, compatible with USB 2.0 (40MB/s bandwidth);

Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;

Can automatically detect the input audio format and convert it to 48KHz PCM audio;

2 collection rods can be used on a PC;

Support online firmware upgrade to better improve product compatibility;

The picture quality is clearer, the RGB color range is 0-255, and the delay is better;

Support all third-party player software compatible with UVC and UAC protocols.

Can collect 1 HDMI input signal.

Compatible with multiple USB3.0 chipsets, backward compatible with USB2.0.

Connected to PC or mobile phone through USB3.0 interface, through many free third-party playback and acquisition software to achieve preview, recording, acquisition, live broadcast and other functions, HDMI video acquisition meets UVC and UAC standards, easy to use.

Specifications:

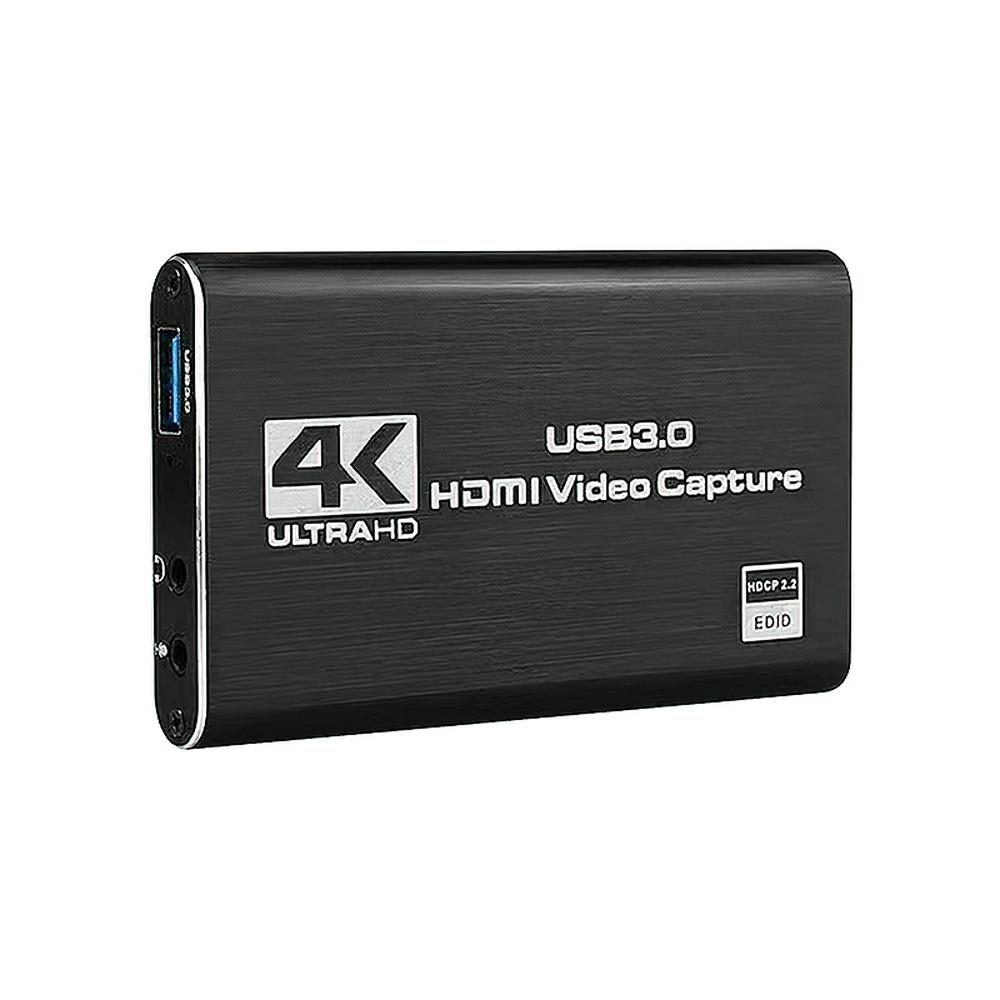

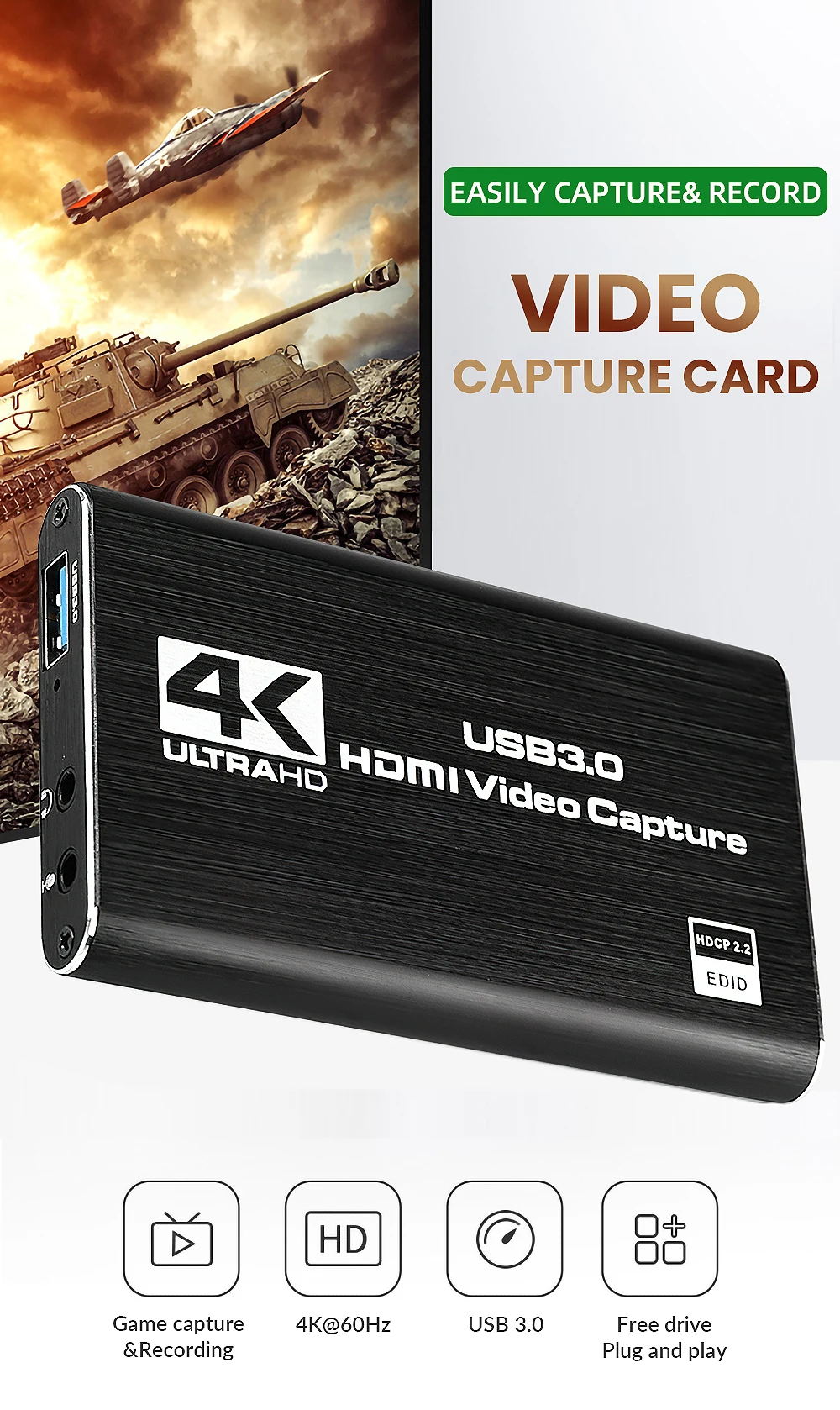

Item Type: USB3.0 HDMI 4K Video Capture

Material: ABS+Metal

Size: 7x13x2cm/2.7x5.1x0.7in

Color: Black

Power consumption: less than and equal to 2.5W

Working temperature: 0-70 degrees Celsius

Storage temperature: -20-120 degrees Celsius

Storage humidity: 5%-90%

Input interface: 1 HDMI interface

Output interface: USB3.0, 300-350MB/s throughput

HDMI input: 4K/30Hz, 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480

HDMI sound input: LPCM sound signal

HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K/30Hz, 12bit deep color

Video sampling rate: HDMI: 165MHz;

Audio and video capture: Complies with UVC (USB video class) and UAC (USB audio class) standards

Output color space: YUV, RGB

Supported operating systems: for Windows 7, 8, 8.1, 10 or later, for Linux OS, for M-ac OS

Quantity: 1 PC

Interface Description:

1.Signal indicator: When the device captures video normally, the indicator lights up.

2.Power indicator: When the device is connected to the USB port of the computer, this indicator lights.

3.HDMI input: This slot is where the HDMI output source such as camera, camcorder, game box, IPTV box, etc. is connected.

4.USB3.0 output: This slot is where you connect the USB3.0 input of a computer or laptop.

Note:

Transition: 1cm=10mm=0.39inch

Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:

1 x USB3.0 HDMI 4K Video Capture

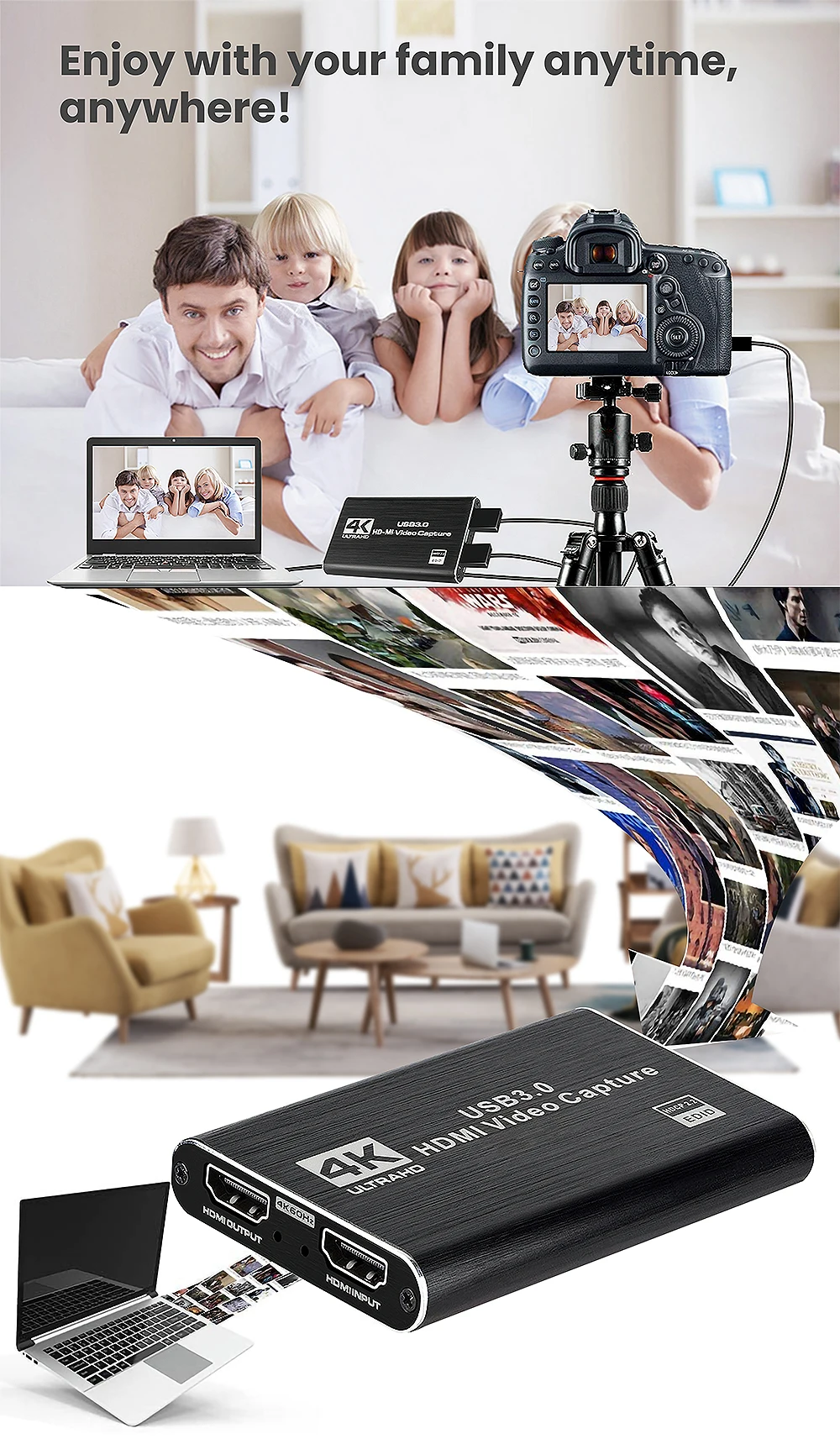

Enjoy with your family anytime,anywhere!

Support 4K HD input/loop out,1920*1080P video capture and recording

60-FRAME HIGH-DEFINITION PICTURE

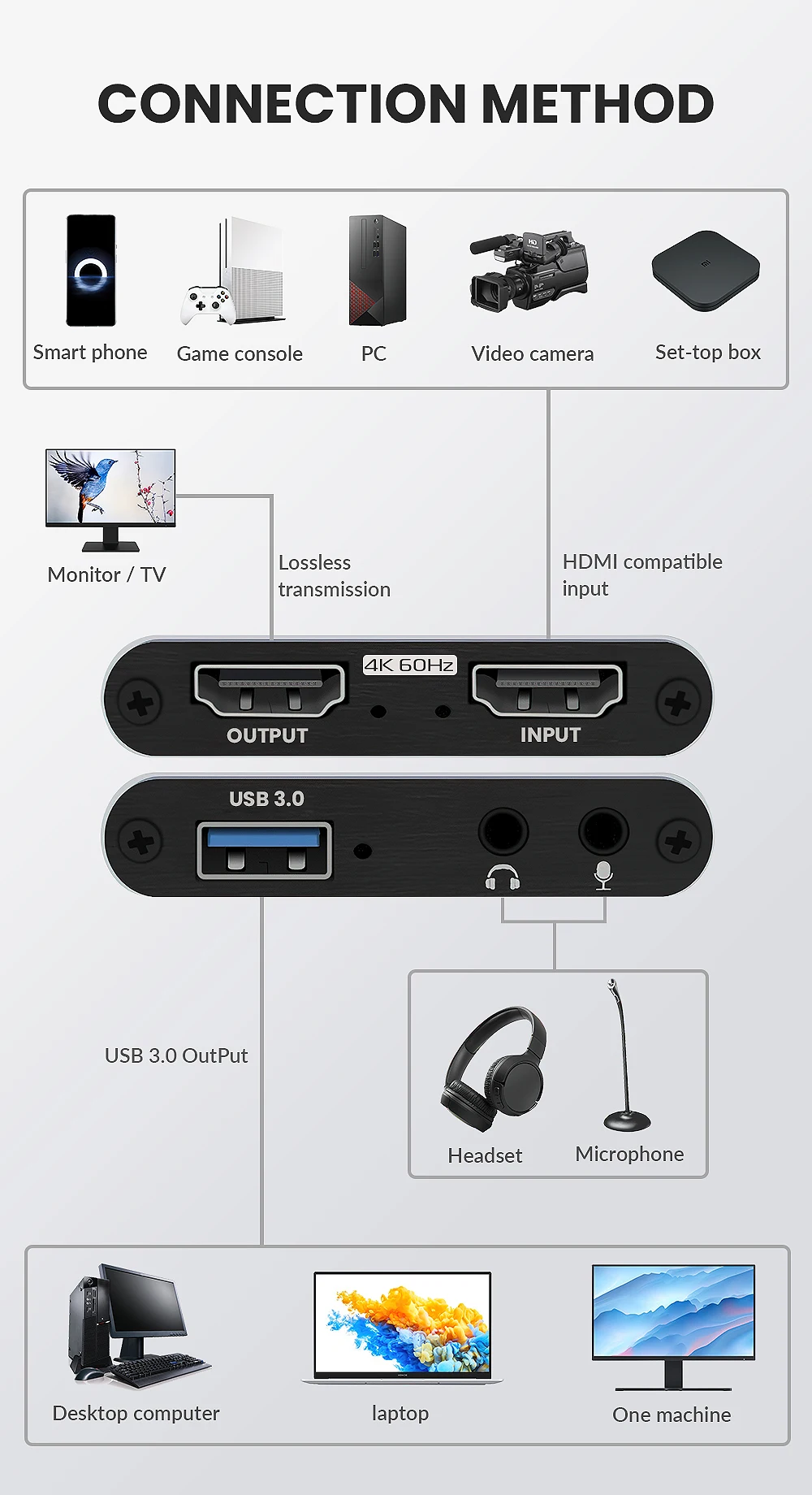

CONNECTION METHOD

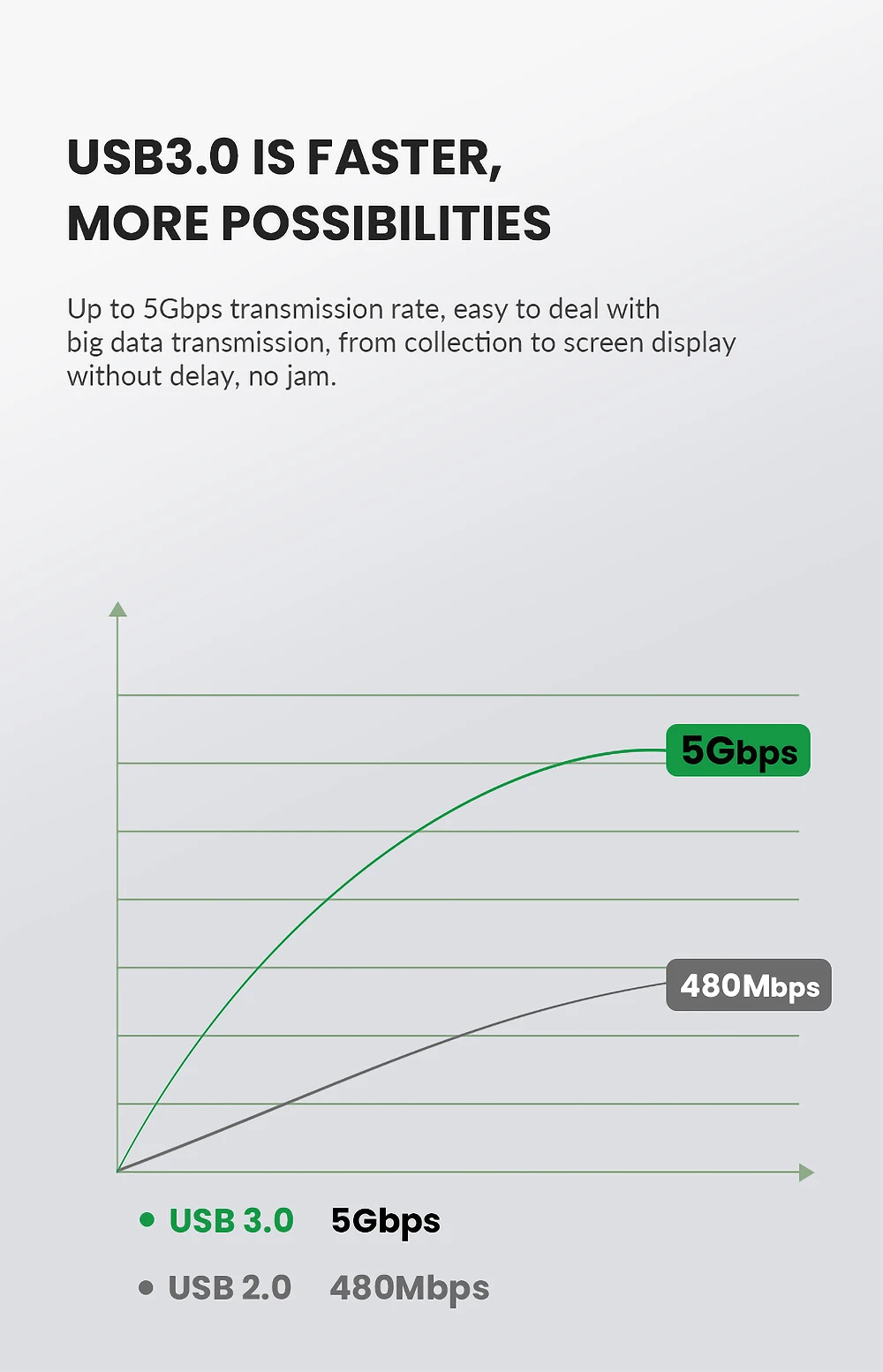

USB3.0 IS FASTER,MORE POSSIBILITIES

WONDERFUL SHARING OF HIGHLIGHTS

DRIVER-FREE & HIGH COMPATIBILITY

MULTI - SCENE APPLICATION

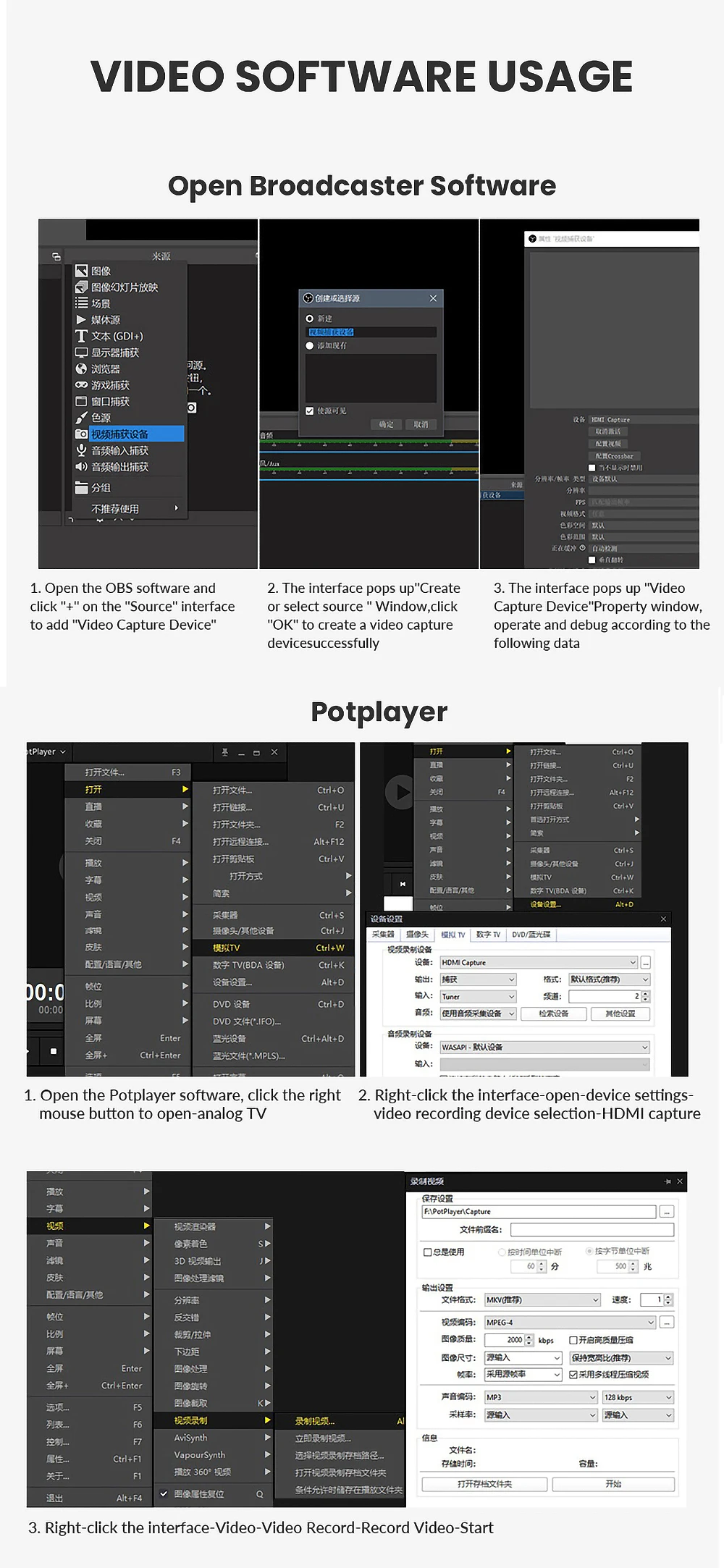

VIDEO SOFTWARE USAGE
