General Introduction

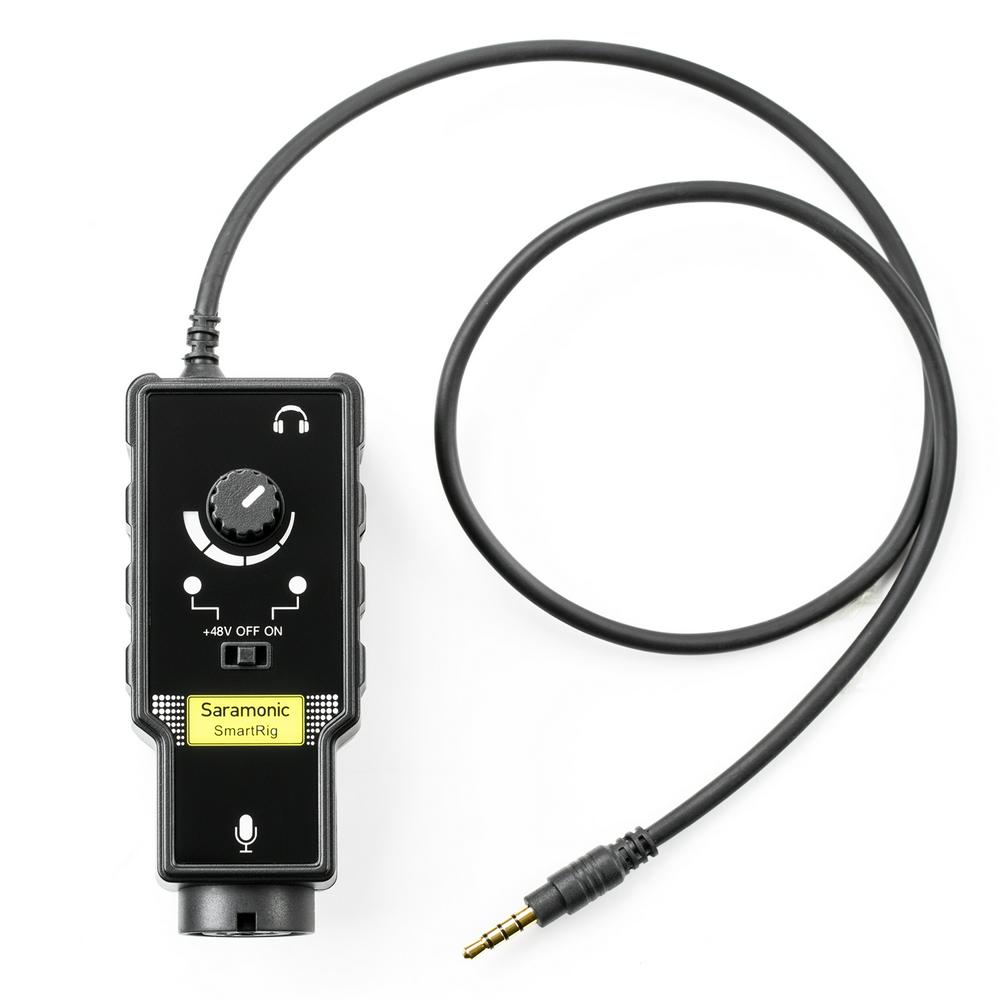

SmartRig ll
The SmartRig ll from Saramonic is an easy solution to connect professional microphones/guitars with yourPhone, ipad, ipod touch and Android devices (CTIAStandard)。

As a high-quality microphone preamp, SmartRig allows you to use professional stage microphones, high-end studio microphones or guitar to create music with your iOS or Android devices.

Simply plug the microphone into the XLR connector ofSmartRig Il and connect it to your device with the 3.5 mm output cable.

The provided gain control thumbwheel makes it easy to set precise levels. Processed sound can be monitored through a 3.5mm headphone.

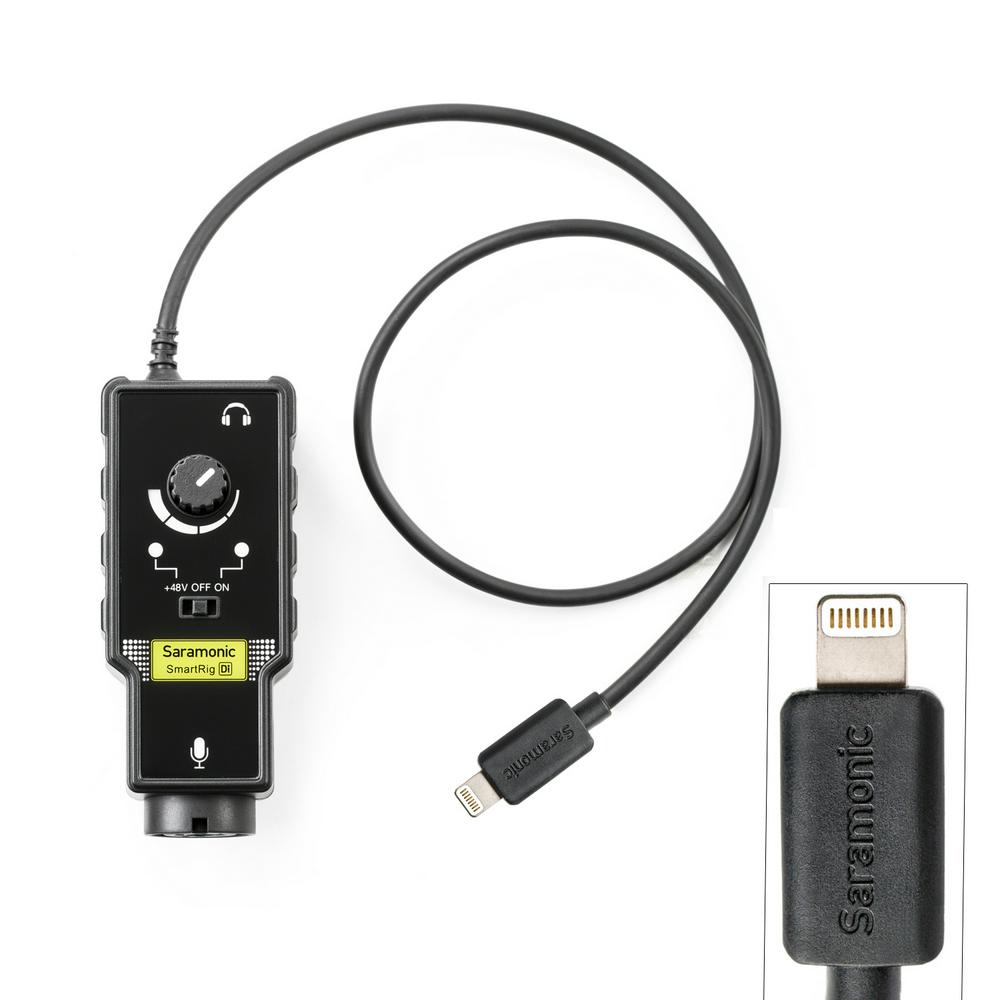

SmartRig Di
The Saramonic SmartRig Di with lightning interface is an easy solution to connect any professional microphones or guitars to record quality audio or create music with your iPhone, iiPad and iPod touch.

Simply plug the microphone into the XLR connector or plug the guitar into the 6.35 mm connector of the SmartRig Di, and connect it to your devices with the lightningoutput cable.

The provided gain control thumbwheel makes it easy to set precise levels . Processed sound can be monitored through a 3.5 mm headphone out.

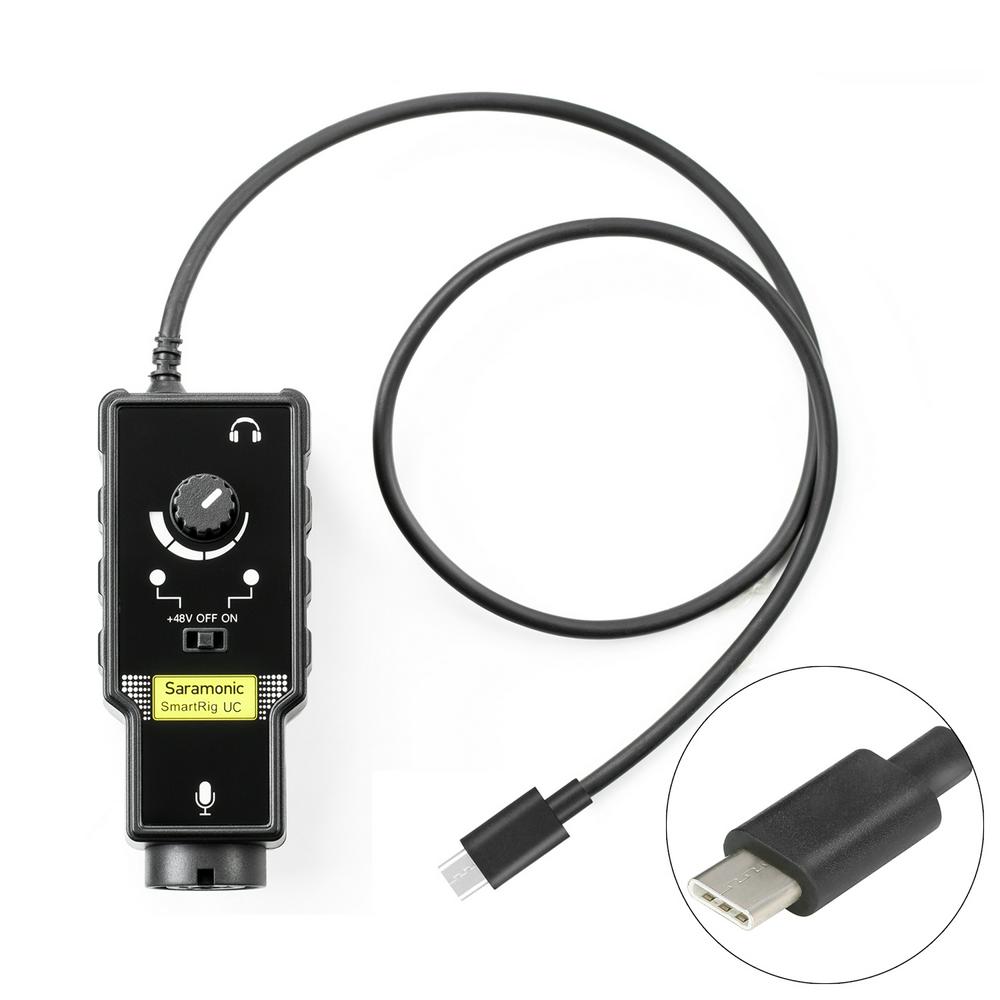

SmartRig UC
The Saramonic SmartRig UC with USB Type-C interfaces is an easy solution to connect any professional microphones or guitars to record quality audio or create music with your USB Type-c devices.

Simply plug the microphone into the XLR connector or plug the guitar into the 6.35 mm connector of the SmartRig UC, and connect it to your devices with the USB Type-C output cable.

The provided gain control thumbwheel makes it easy to set precise levels . Processed sound can be monitored through a 3.5 mm headphone out.

Highlights

• Combo 1/4(6.35mm)and XLR input
• Power/Phantom power provided by V battery
• +48V phantom power
• 3.5mm headphone output for monitoring(need APP
• 48V/OFF/ON switch
• Gain control

Compatibility

SmartRig II
Compatible with iPhone/iPod touch/iPad and Android devices
Any type of microphones: Dynamic, Ribbon, or Condenser.
Any music instruments with 6.35mm input connector.

SmartRig Di
Compatible with iPhone/iPod touch/iPad
Any type of microphones: Dynamic, Ribbon, or Condenser.
Any music instruments with 6.35mm input connector.

SmartRig UC
Compatible with USB Type-C devices (Except GoPro USB Type-C).
Any type of microphones: Dynamic, Ribbon, or Condenser.
Any music instruments with 6.35mm input connector.

Specificatios

SmartRig II
Frequency Response: 20 Hz to 20 Khz, +/- 1.5 dB
Noise: -98 dB full band, phantom power ON
Maximun output level: 2Vrms
Distortion: 0.026% THD
Phantom Power: 48V power supplies
Phantom max current: 13mA
Dimensions: L 88* W41* H42 mm
Weight: 75g (2.57oz.)

SmartRig UC
Frequency Response: 20 Hz to 20 Khz, +/- 1.5 dBu
Dimensions: L 88* W41* H42 mm
Weight: 75g (2.57oz.)
Gain: Max 23dBu
SNR: 80dBu @1kHz, -30dBu input
THD: less than 0.01%@1kHz, -30dBu input
Sample Rate: 44.1kHz or 48k Hz
Output: Lightning output connector

SmartRig Di
Frequency Response: 20 Hz to 20 Khz, +/- 1.5 dBu
Dimensions: L 88* W41* H42 mm
Weight: 75g (2.57oz.)
Gain: Max 23dBu
SNR: 80dBu @1kHz, -30dBu input
THD: less than 0.01%@1kHz, -30dBu input
Sample Rate: 44.1kHz or 48k Hz
Output: USB Type-C connector

Packing List

SmartRig II
SmartRig II *1
Velcro Strip*1
User Manual*1
Warranty Card*1

SmartRig Di
SmartRig Di*1
Velcro Strip*1
User Manual*1
Warranty Card*1

SmartRig UC
SmartRig UC*1
Velcro Strip*1
User Manual*1
Warranty Card*1
