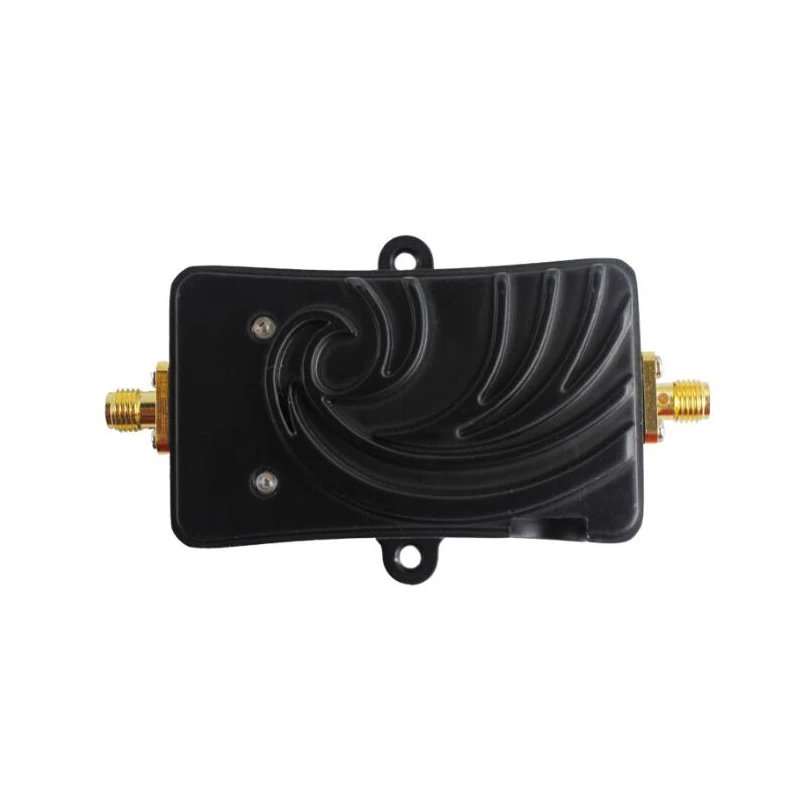

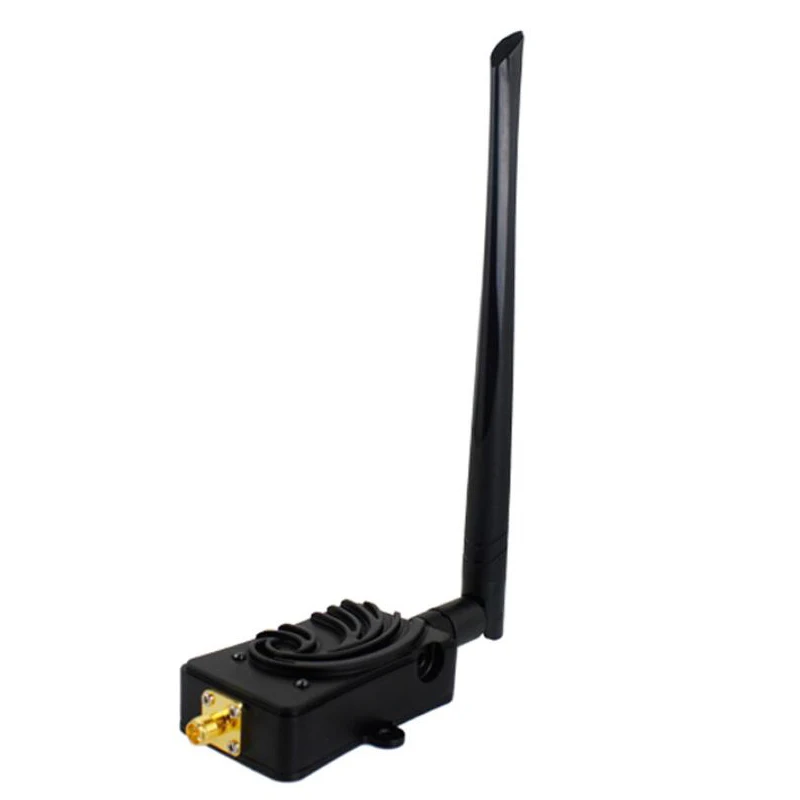

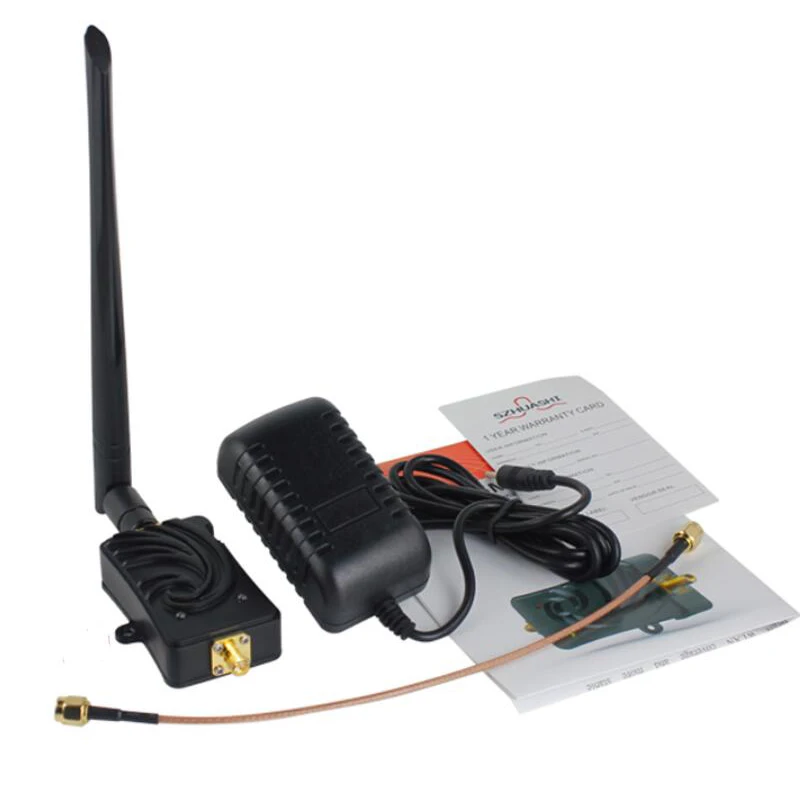

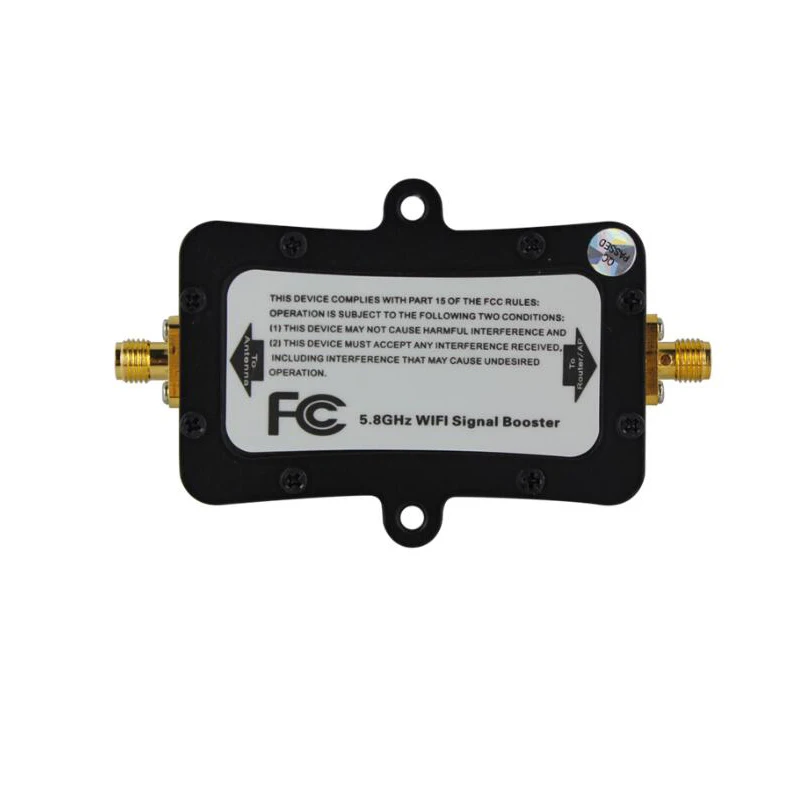

EDUP EP-AB011 4W 802.11a/n 6dBi Wireless Extender Wifi Power Amplifier 5G Signal Booster Repeater
Sku
UIKS0051
$38.31
| Qty | 1 | 2 | 5 | 10 | 20 |
|---|---|---|---|---|---|
| Price | $39.97 | $39.67 | $39.14 | $38.67 | $38.31 |
Qty
Sales Ends In
- Buyer Protection
- Full Refound if you don't receive your order
- Full or Partial Refund,If the item is not as described
Description
The 5.8 GHZ WLAN signal booster is designed for IEEE 802.11a/n Wireless LAN applications.
It adopts the direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) technology of WLAN communication.
The product is compatible with time division duplexing (TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/Wi-Fi devices and increase the WLAN signal strength, therefore a larger WLAN coverage and more stable transmission rate .
Features
1. 100X the power, improving the link quality and coverage of certifiedWLAN devices
2. 3.0dBultra-low noise
3.Wide 6v to 16v operating input range
4.working with certified IEEE 802.11a/n Wireless LAN devices
5.Simply plug and play,no software is required
6.Frequency Range: 5.725~5.85GHz
7.Operating Voltage: 6~16V
8.Receiving Gain: 15dB±1
9.Transmission Gain: 20dB±1
10.Input Trigger Power: Min: 0dBm Max: 10dBm
11.Maximum Output Power(P1dB): 37dBm(5W)
12.EVM: 3%@29dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
13.DC Supply Current: 700mA@Pout 29dBm 12V
14.Noise Figure: lesd than 30dB
15.TX/RX Switch Time Delay: less than1us
16.LED Indicator: Transmitter: green; Receiver: red
17.Operating Ambient Temperature: -40℃~+70℃
18.Operating Humidity: up to 95% rel. humidity
19.Dimension: 82mm×50mm×21mm
20.Weight: 0.25Kg net
| Brand | EDUP |
