Qty | 1 | 3 | 8 | 16 | 32 |
---|---|---|---|---|---|
Price | $18.67 | $18.26 | $17.66 | $17.13 | $16.76 |
In accordance with 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac
Support CSMA / Ca, CSMA / CD, TCP / IP, DHCP, ICMP protocols
Support wireless to wireless, wireless to wired
Support WPS one key relay
Support web management, Chinese configuration interface
Support 64 / 128 bit WEP, wpa-psk, wpa2-psk and other latest wireless security standards
Provide web management page reset and restore factory settings
Support user manual online system upgrade function
Specifications |
Chipset | MT7628A+MT7612E | |
Main frequency and processing speed | 580MHZ | |
Memory(Byte) | 64M-Byte DDR2 | |
FLASH(Byte) | 8M- Byte (SPI flash) | |
Standards and protocols supported | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP | |
Port | WAN/LAN | 1*LAN(Hundred trillion) |
Button | 1*Reset 1*WPS | |
wireless | Frequency range / deviation | 2.412GHz~2.4835GHz / 5.180GHz~5.825GHz |
parameter | transmission speed | 802.11b : 1/2/5.5/11Mbps(Max) 802.11g : 6/9/12/18/24/36/48/54Mbps(Max) 802.11n (HT20): 150Mbps(Max) 802.11n (HT40): 300Mbps(Max) 802.11a: 6/9/12/18/24/36/48/54 Mbps(Max) 802.11AC (VHT80): 900Mbps(Max) |
Transmitting power EVM | 2.4G: 802.11b:18dBm+/-1 dBm 802.11g:17dBm +/-1dBm EVM< -25 dBm 802.11n:17Bm +/-1dBm EVM< -28 dBm 5.8G: 802.11a:16dBm+/-1 dBm 802.11n:15dBm +/-1dBm EVM< -30 dBm 802.11ac:14Bm +/-1dBm EVM< -32 dBm | |
Spread spectrum technology | DSSS(Direct sequence spread) | |
Data modulation | DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM/256-QAM) | |
Sensitivity @ PER (error rate) | 11b 1Mbps: -95dBm@10%PER 11g 54Mbps: -75dBm@%10 PER 11n HT20 150Mbps: -72dBm@%10PER 11n HT40 300Mbps: -70dBm@%10 PER 11ac VHT80 866Mbps: -56dBm@%10 PER | |
power | ≤5W | |
power supply | AC220V | |

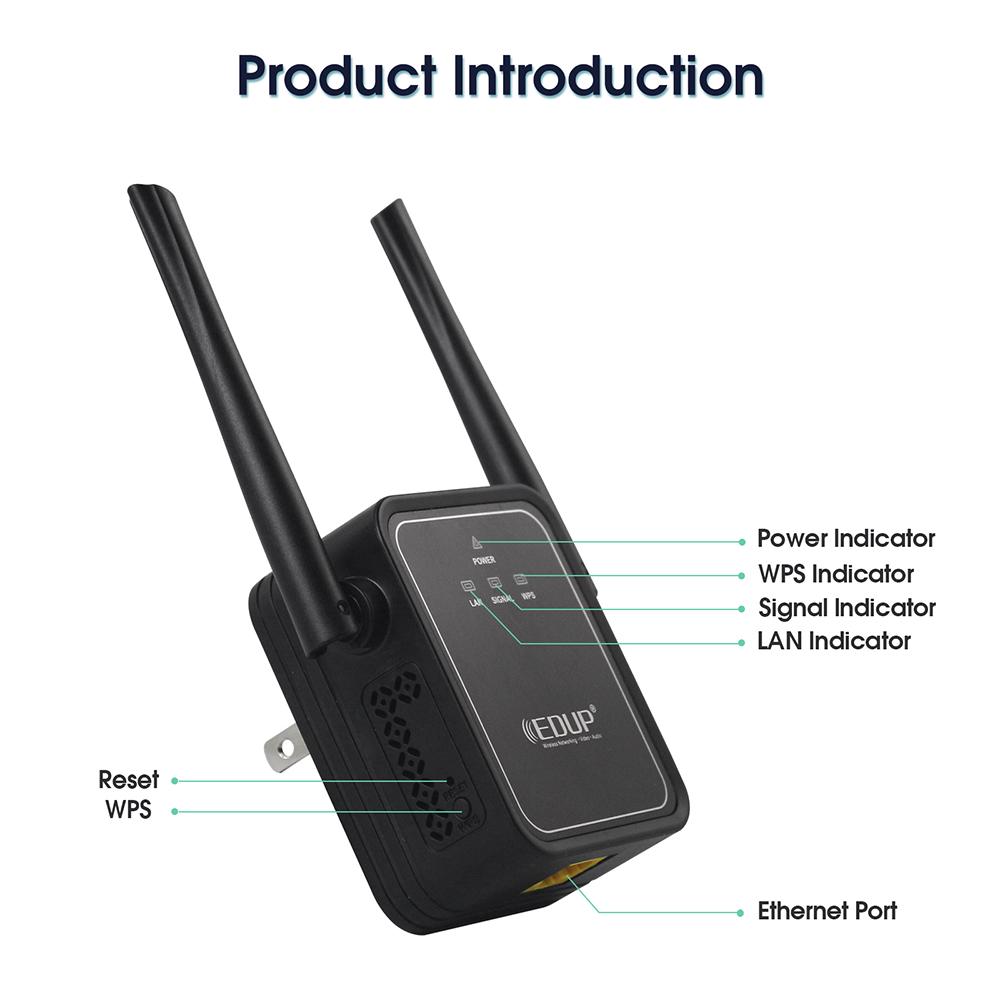

LED |
| PWR,LAN,Signal,WPS |
Indication | LAN | Support |
Boundary dimension (L×W×H)(mm) | 95x120x60mm |
Brand | EDUP |
