Description:

This manometer is widely used in measuring fan pressure, wind speed, oven pressure, and hydraulic system. This manometer can also be used in controlling the gas ratio in combustion and value control and monitoring the blood pressure and breath pressure with other medical devices.

Features:

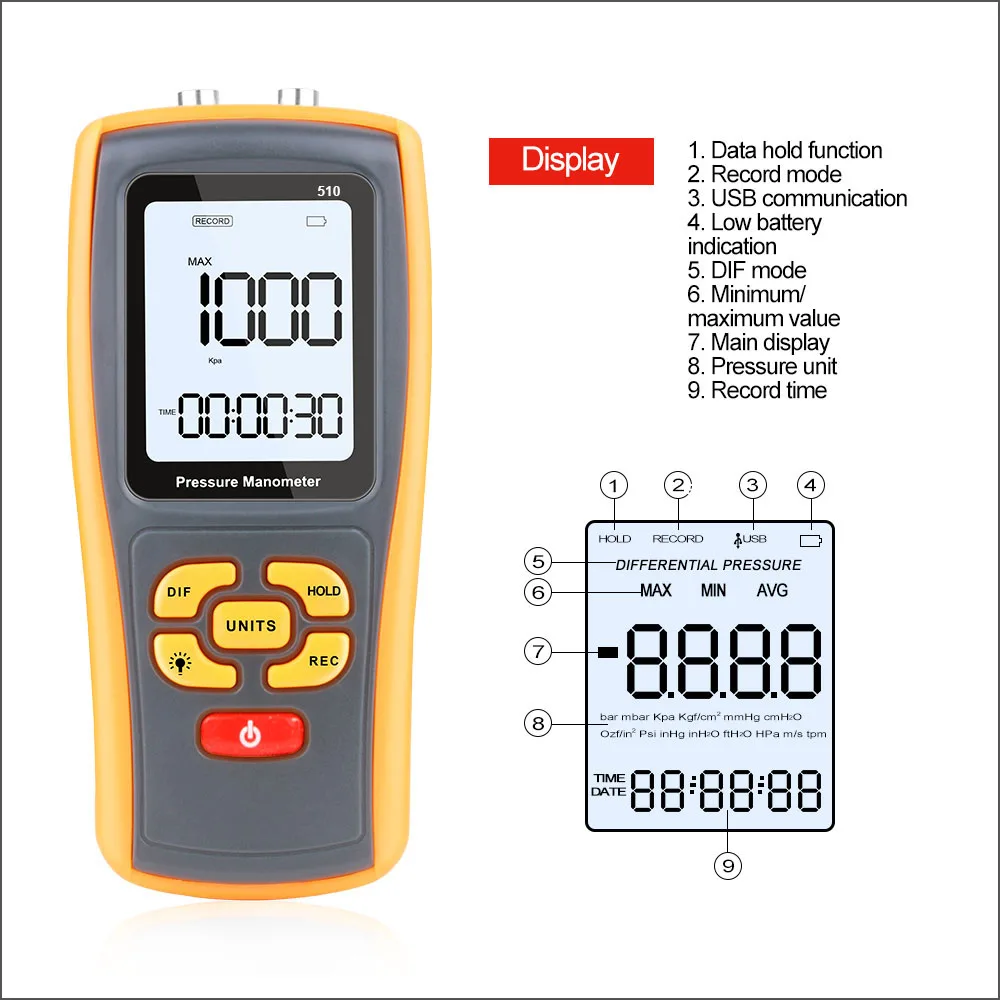

1. LCD backlight display for easy viewing at day or night.

2. USB port helps to export your data to your PC.

3. Low battery indication and auto power off.

4. Compact design, pocket size, convenient to carry.

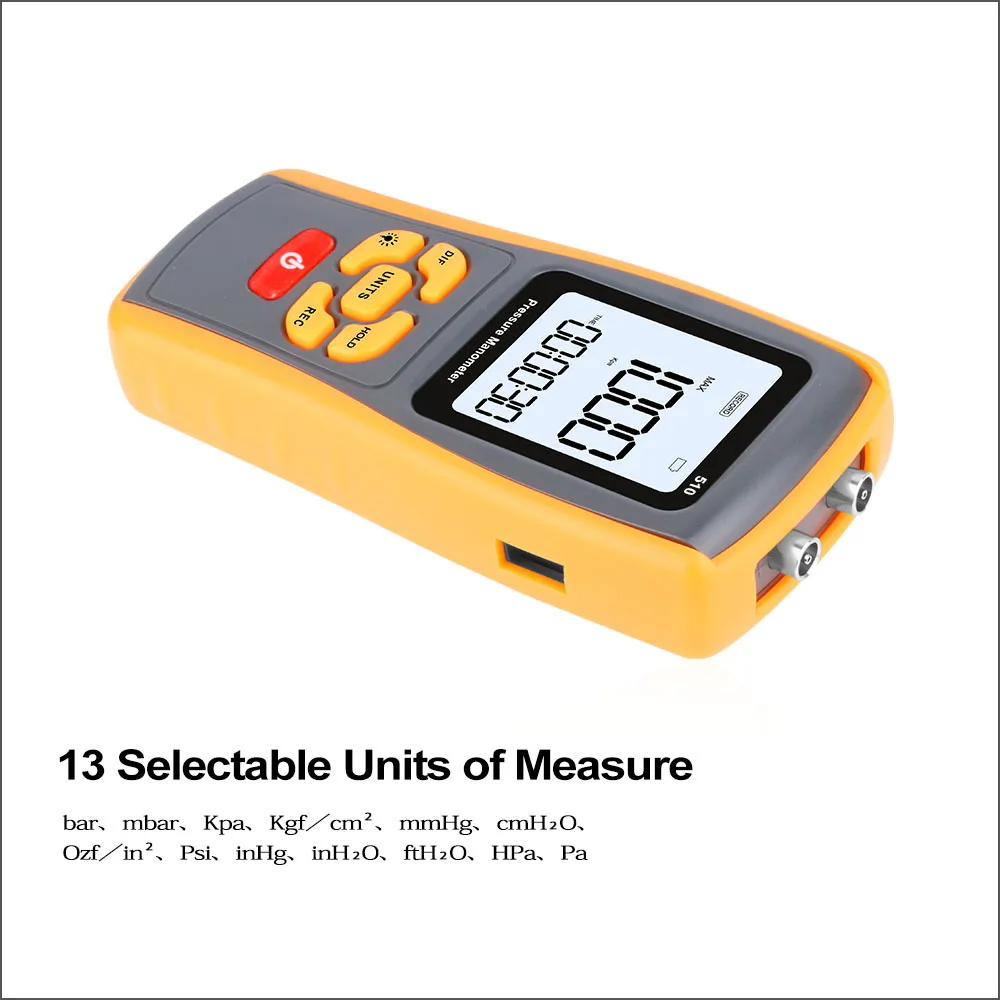

5. 11 different units to choose: bar, mbar, kPa, kgf/cm², mmHg, cmH2O, Ozf/in², psi, inHg, inH2O, ftH2O.

6. Support record Max, Min, Average values.

Specification:

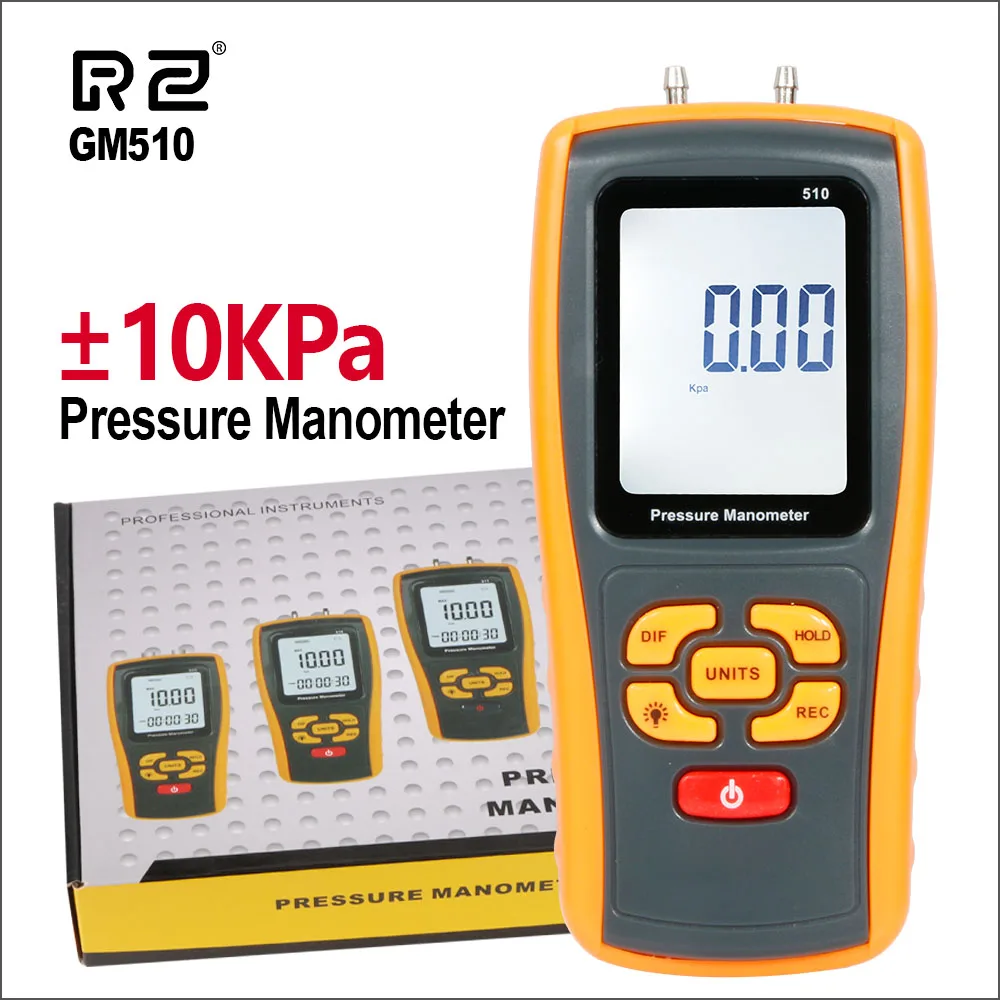

Model: GM510

Color: Grey

Measuring Range: ±10kPa

Accuracy: ±0.3%FSO(25°)

Repeatability: ±0.2% (Maximum±0.5%FSO)

Linearity/Hysteresis: ±0.29%FSO

Maximum Pressure: 50kPa

Response Time: 0.5s

Temperature Compensation Function: No

Positive Overload Alarm: Err.1

Negative Overload Alarm: Err.2

Operating Temperature: 0-50℃

Storage Temperature: -10~60℃

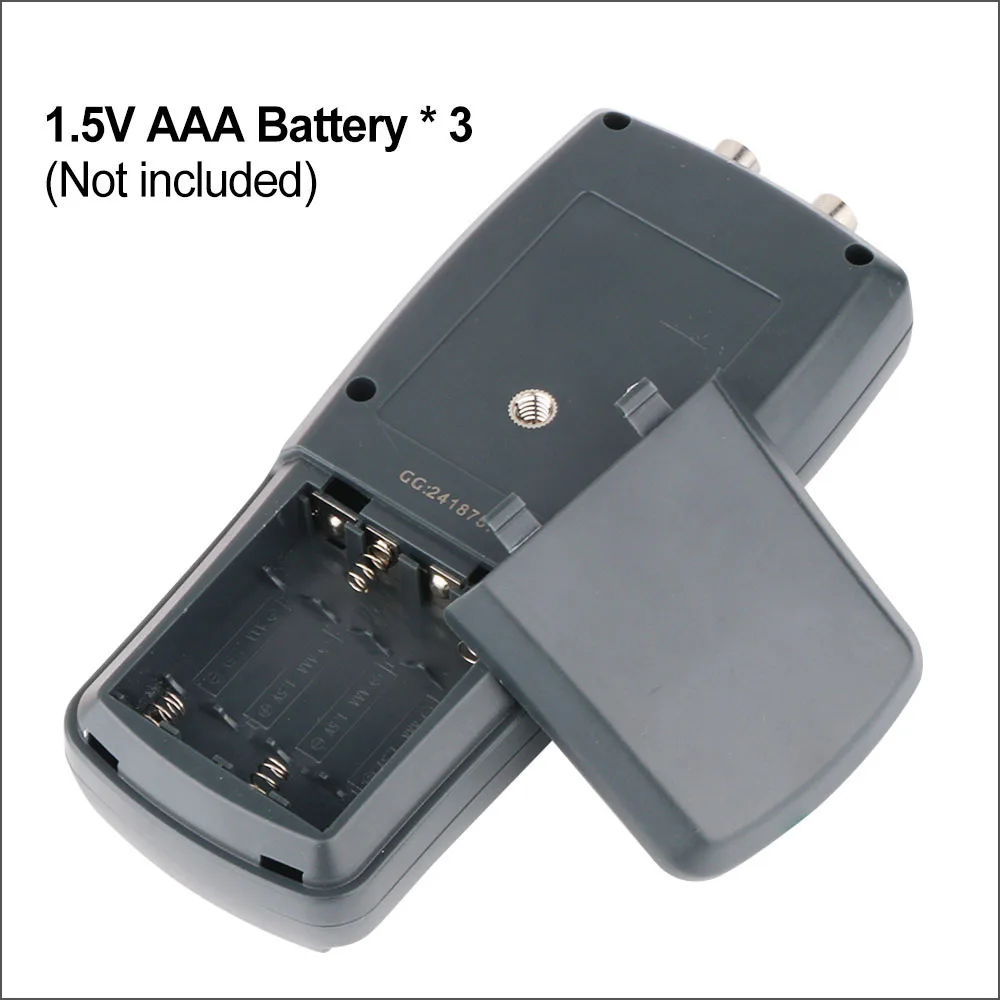

Battery: 4 * 1.5V AAA Batteries (Not Included)

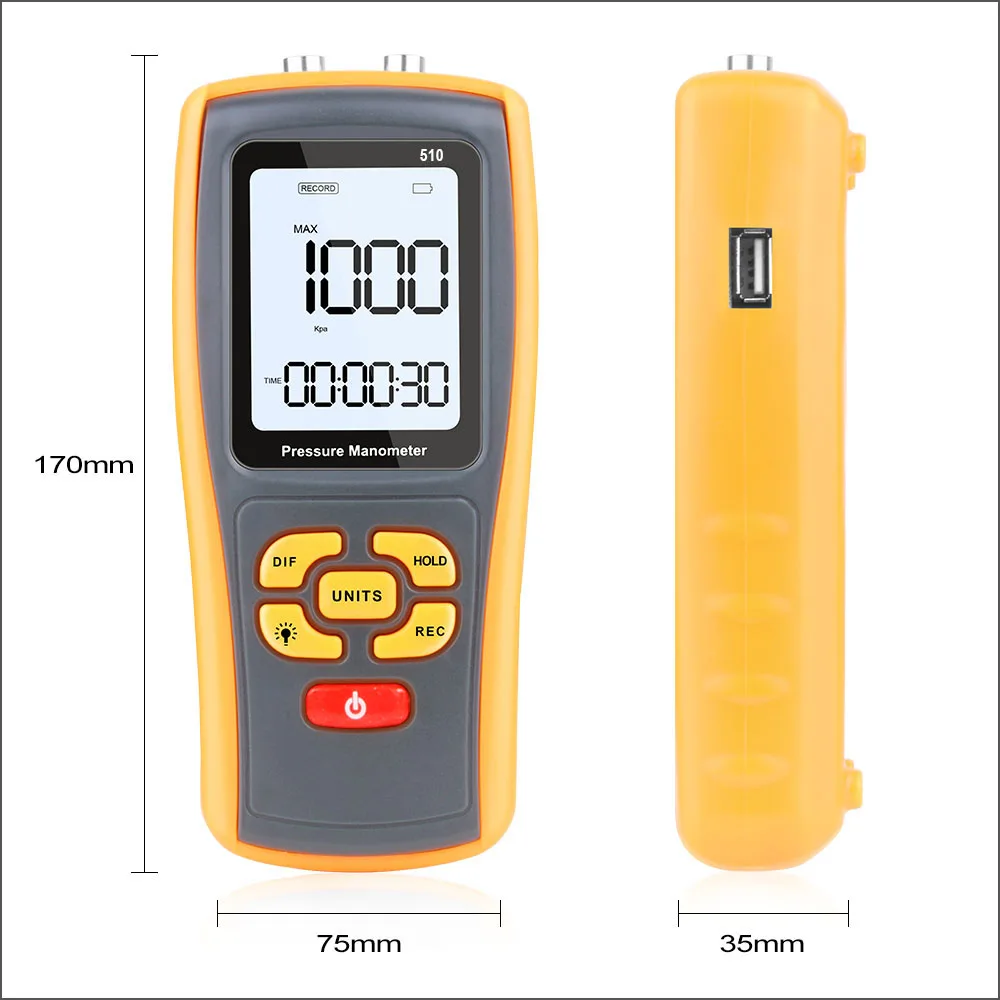

Size: Approx. 165*76*38mm / 6.5*3*1.5in

Weight: Approx. 400g / 14.1oz

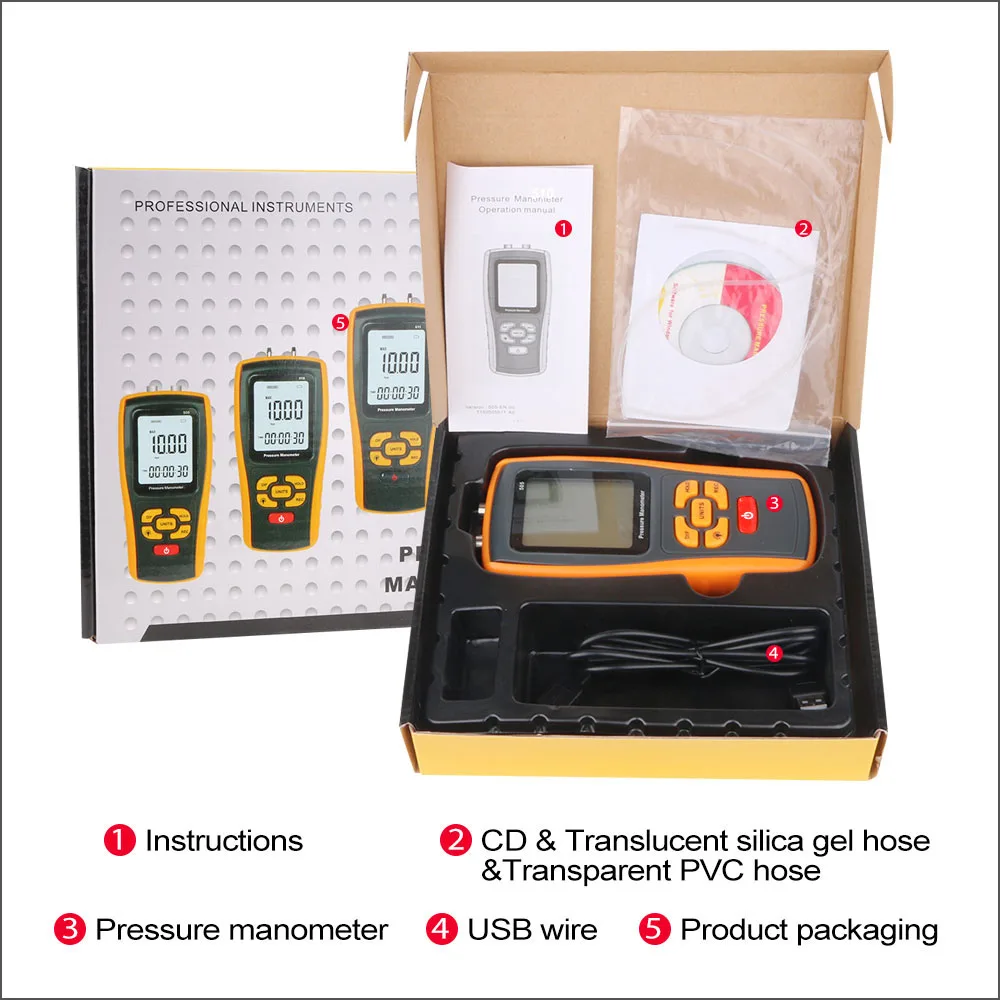

Package List:

1 * Digital Manometer

2 * Translucent Silica Gel Hose

2 * Transparent PVC Hose

1 * USB Cable

1 * CD Software
