BENETECH GM211 Fe/NFe Film Coating Thickness Gauge Meter Non-magnetic Surface Paint Coatings Thickness Meter
Sku
GAENT0026
$74.88
| Qty | 1 | 2 | 3 | 5 | 10 |
|---|---|---|---|---|---|
| Price | $78.12 | $77.57 | $76.53 | $75.63 | $74.88 |
Qty
Sales Ends In
- Buyer Protection
- Full Refound if you don't receive your order
- Full or Partial Refund,If the item is not as described
2in1 Fe/NFe Film Coating Thickness Gauge Meter 0~1500um Non-magnetic Surface Paint Coatings Thickness Measurement LCD GM211
Features:
This Coating Thickness gauge adapts Electromagnetic Induction principle and magnetic Induced EDD current. It can measure the thickness of non-
magnetic
metal coatings and
metal coatings
on metal surface.
Automobile surface coating machine can be identified into two categories:
1.Metallic
2.Resin Paint
What is the difference between Metallic and Non-metallic paintwork ?
Metallic paint blending because of which the metal powder, thus increasing the hardness of the paint, the paint hardens,improve durability, not easy to be scratched. With metallic paint, reduces the car up painting, paint the trouble and expense. So part of the metal paint more cars. The common paint used mainly in white, black, red and yellow car, if inthese types of "prime paint" Adding silver, are also metallic paint.
Metal paint: metallic paint by blending the metal powder which belong to the metal coating machine is not recognized;
Varnishes: Varnishes, because there is no metal belonging blending non-metallic coating can be measured.
Metal paint: metallic paint by blending the metal powder which belong to the metal coating machine is not recognized;
Varnishes: Varnishes, because there is no metal belonging blending non-metallic coating can be measured.
This unit is perfect for manufacturing company, metal machinery industry, chemical industry, and commodity inspection especially in automobile trading.

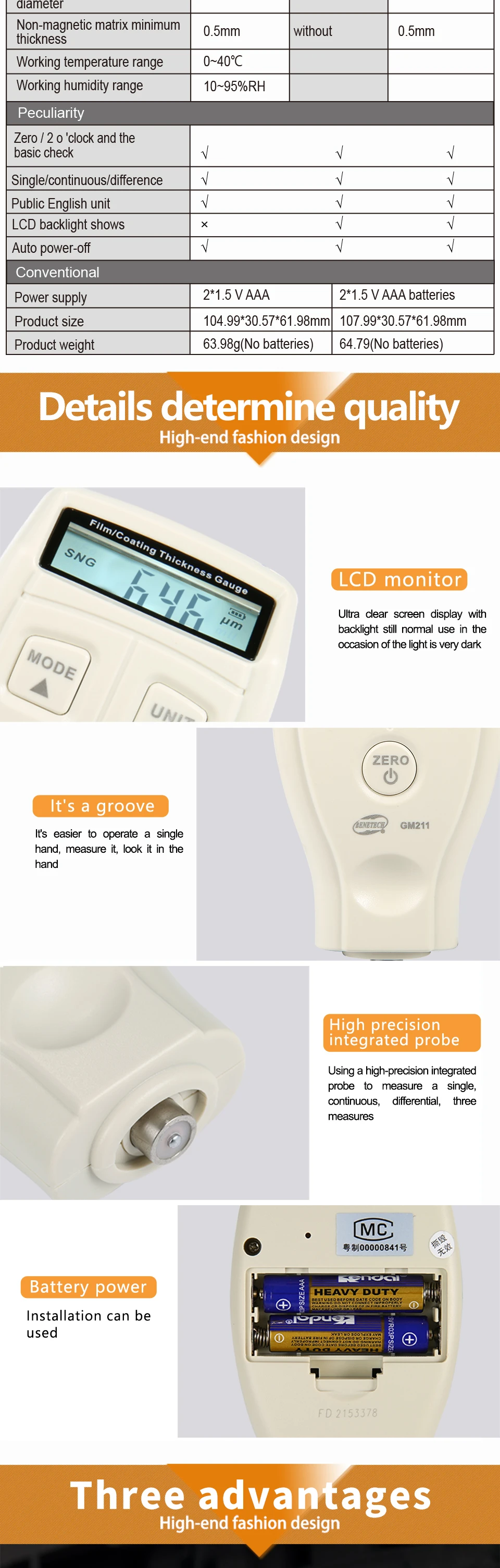

Auto power off mode designed to conserve battery life
Compact design and easy to carry
Zero, one-point and two-point calibrating
Digital LCD display
Comes with iron base and non-iron (aluminunm) base
Portable, user friendly and easy to carry even in pocket
Provides Single, Continuous & Difference measurement mode with metric/imperial conversion

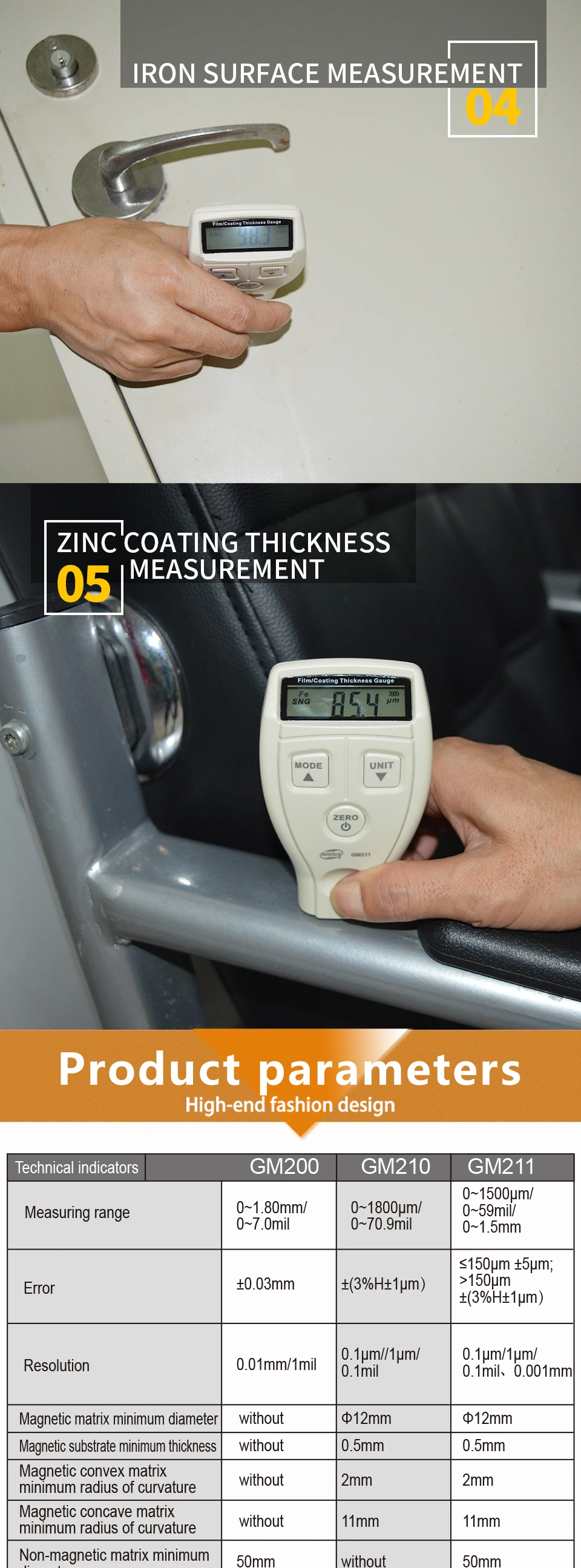

Technical Parameter:
1.Measuring range:0~1500μm/0~59mil/0-1.5mm
2.Resolution : 0.1μm(<100um)/1μm(>100um)/0.1mil/0.001mm
3.Measurement error:<=150um ±5um >150um ±(3%H+1μm)
4.Min.diameter of magnetic substrate: 12mm
5.Min.thickness of magnetic substrate: 0.5mm
6.Min.curvature radius of convex substrate:2mm
7.Min.curvature radius of concave substrate:11mm
8.Min.diameter of non-magnetic substrate: 50mm
9.Min.thickness of non-magnetic substrate: 0.5mm
10.Operating temperature range:0~40℃
11.Operating humidity range:10-95RH
12.Power supply: 2*1.5V AAA battery(battery not included )
13.Weight: 63.98g (without battery)
14.overall Dimension: 65*31*108mm
Package Includes:
1pc x Coating Thickness Gauge (main unit)
6pc x Standard pieces
1pc x Instruction Manual
