【product presentation】

Do you have 2 power amplifiers and 4 sets of speakers that need to be connected to each other?

Do you need 2 amplifiers and 4 sets of speakers to get stuck?

A powerful amplifier and audio switcher can solve these problems,

1:2 power amplifiers push-button select switch input,4 sets of stereo speakers push-button select switch output (4 sets of speakers can be opened or closed independently)

2: sets of stereo speakers can sound at the same time, you can also turn off one group of speakers or more groups of speakers individually, manually select the pushbutton switch

3: The maximum power of each channel is 300W

4: Signal input provides vacuum tube power amplifier signal no-load protection function

5: manual selection of input and output switching, straight plug straight use, switching signal stability, between channels will not produce another dry close or noise

6: Compact design of solid metal shell, easy installation, the product does not need external power

7: simple installation: input and output plug and play easy installation, you can enjoy different audio experience

Product Parameter

Compatible with all types of power amplifiers and speakers

Input/output accepts heavy-duty speaker wire or speaker pin wire through the terminal port

Connect the power amplifier to amplifier A and B

Connect the loudspeaker to position 1-2-3-4 respectively

Turn on your power amplifier stereo device and the product requires no external power supply

Input:2 sets of inputs (banana plug)

Output:4 sets of output (banana plug)

Power: up to 300W

Metal material, fine steel housing, compact size suitable for any system

Channel Power: Each channel supports up to 300W of power

Frequency response: 10Hz-50KHz

Net weight :0.92 kg

Product size: length 240mm X width 105mm X height 55mm

Kit list

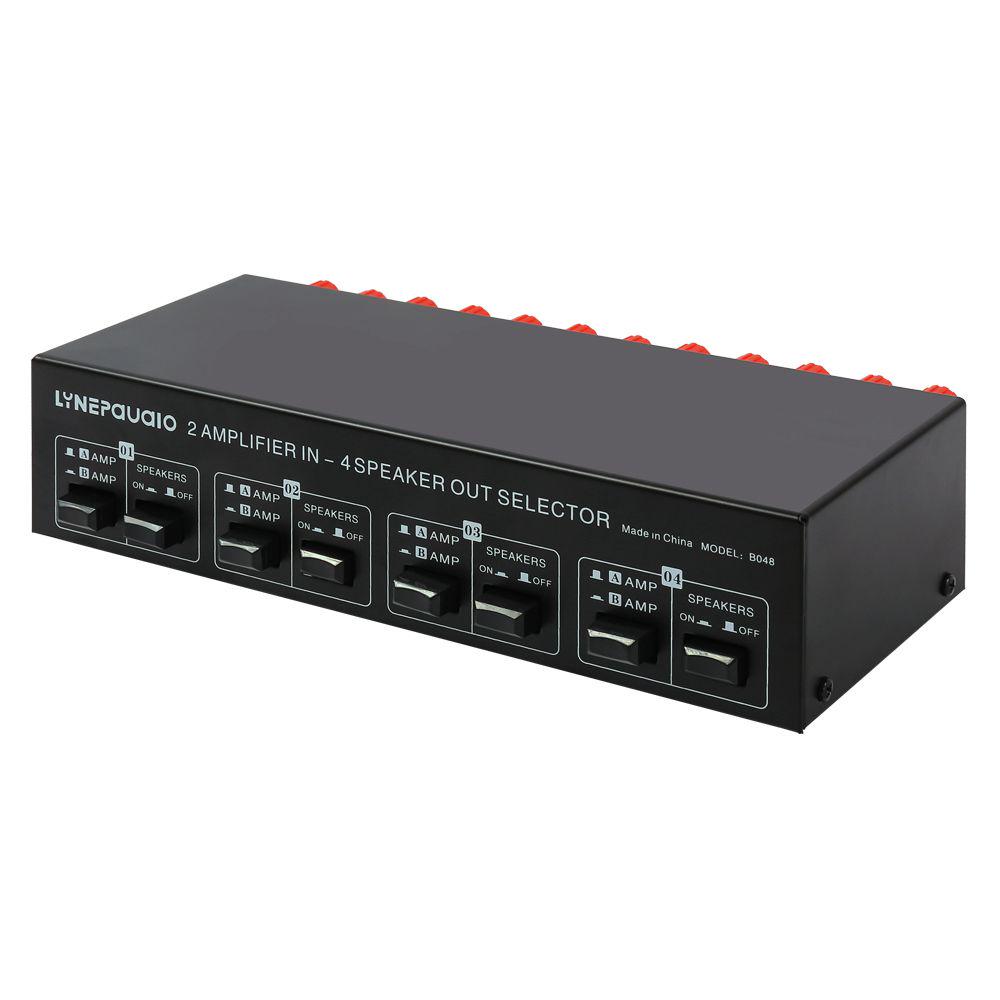

1 X 2 input 4 output power amplifier and sound switcher loudspeaker switch distributor
