Description

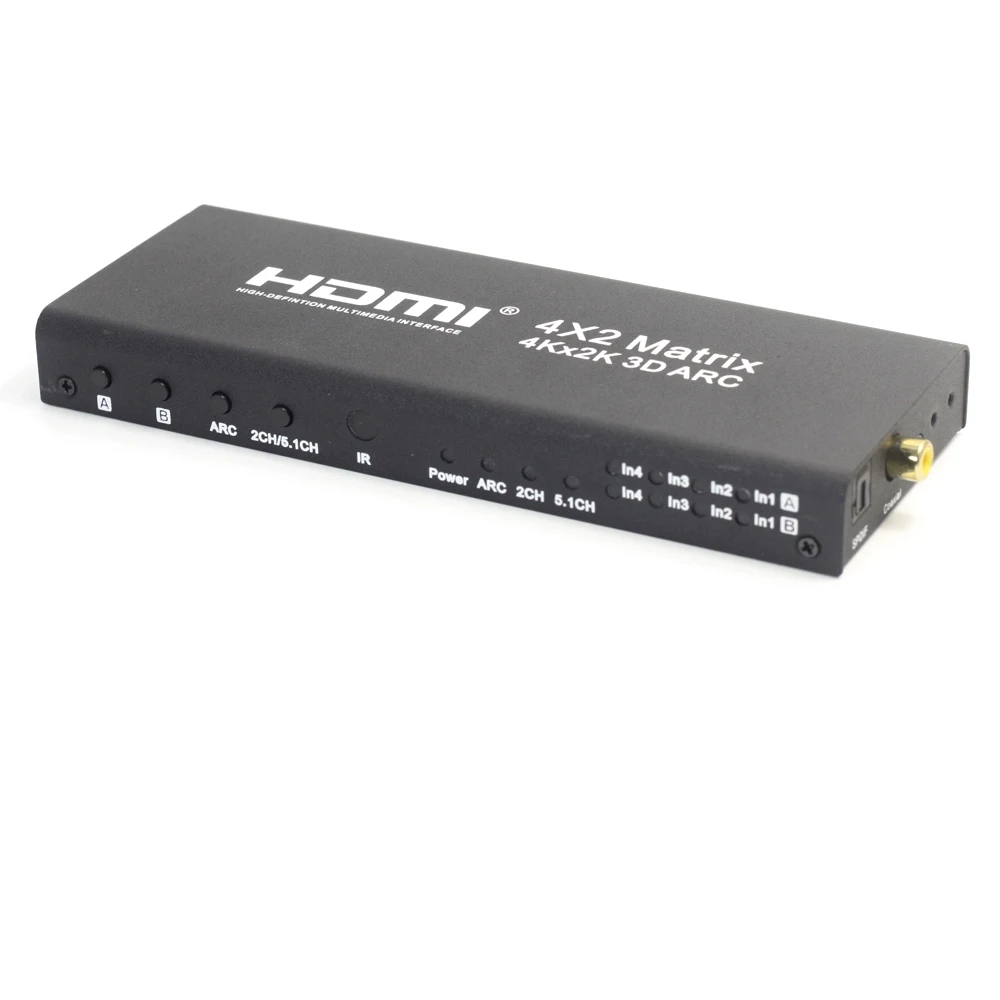

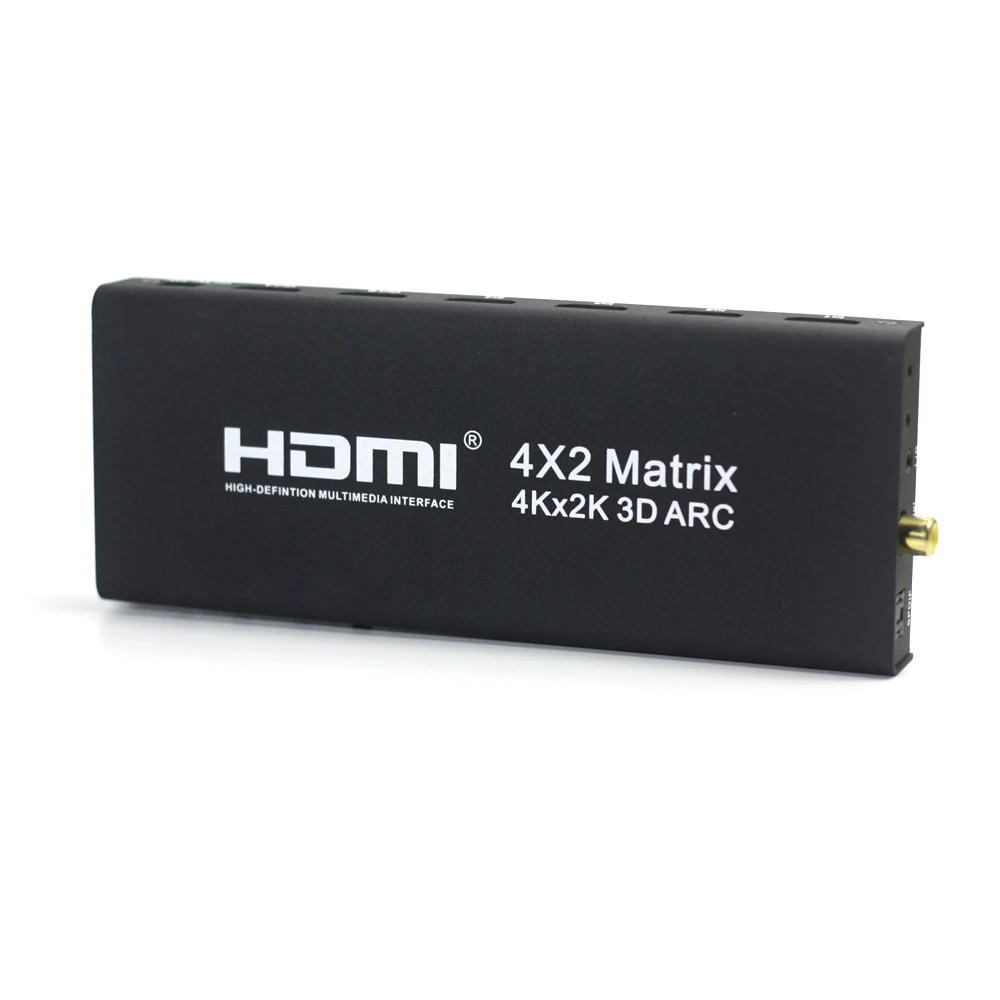

• This HDMI 4X2 matrix can change the source of four-way high-definition input signal into two HDMI output you can change the output interface of two different images, you can also display the same image, and can support fiber, coaxial, headphone output stereo (the Audio output only supports Output A). It can easily be four high-definition signals on two compatible high-definition signal or projector screens free to change or distribution.
• Support HDMI1.4b version
• Support for the MHL function
• Support arch function
• Support 3D video format
• Supports the highest resolution of 4096 * 2160 / 30Hz
• The TMDS watch is 320 Mhz when the maximum speed of 3.2G is compatible
• 8/10/12 bit dark support
• When the resolution is 1080P and below, it supports the use of standard AWG26 cable, the 15m input transmission distance, the 25m output transmission distance
• When the 4K resolution, it supports the use of standard AWG26 cable, the 12m input transmission distance, the 15m output transmission distance
• Supports 3.5mm stereo audio interface output and fiber output

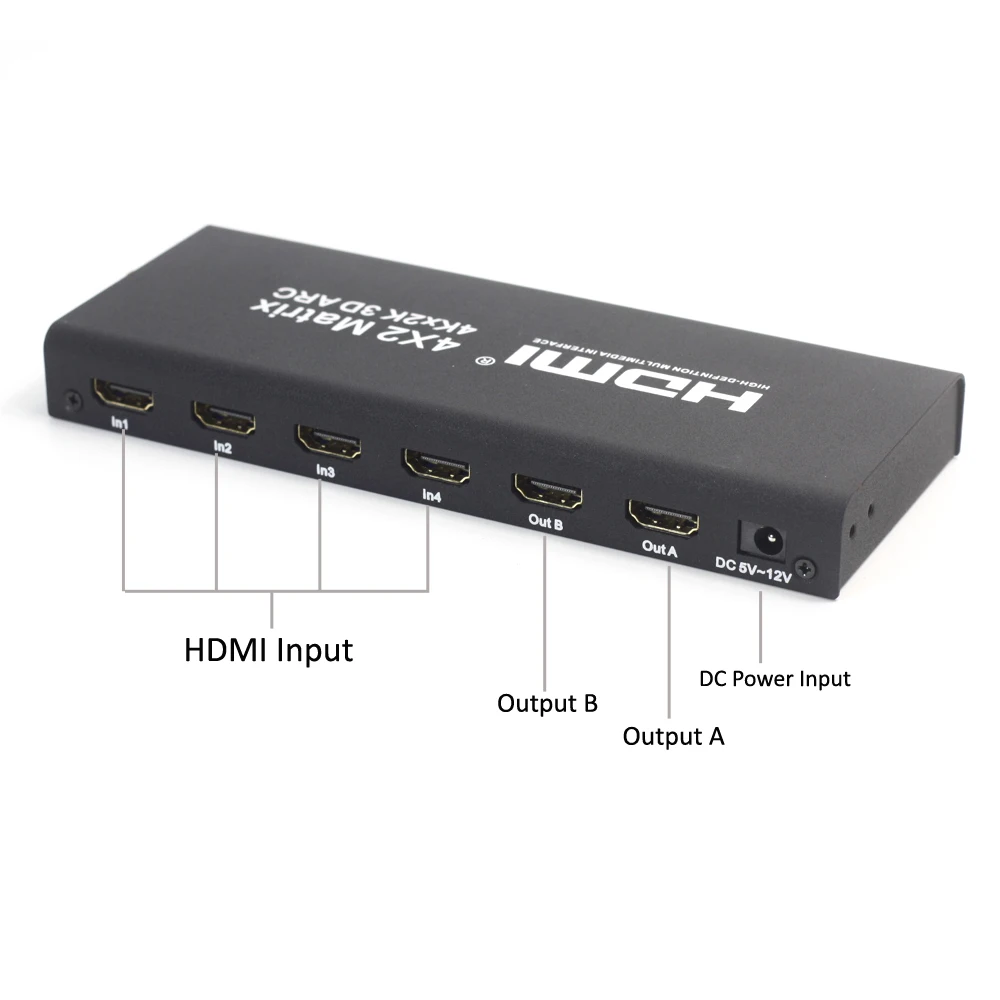

• Supports switching or assignment of 4 HDMI inputs to 2 HDMI outputs
• Supports Wide voltage input of 5 V-12 V

Specification

• Connector : HDMI
• Feature: HDMI1.4
• Model number: 4x2 HDMI Matrix
• Gender: Female-Female
• Connector A: HDMI
• Shield: Combination
• Type: HDMI Cables

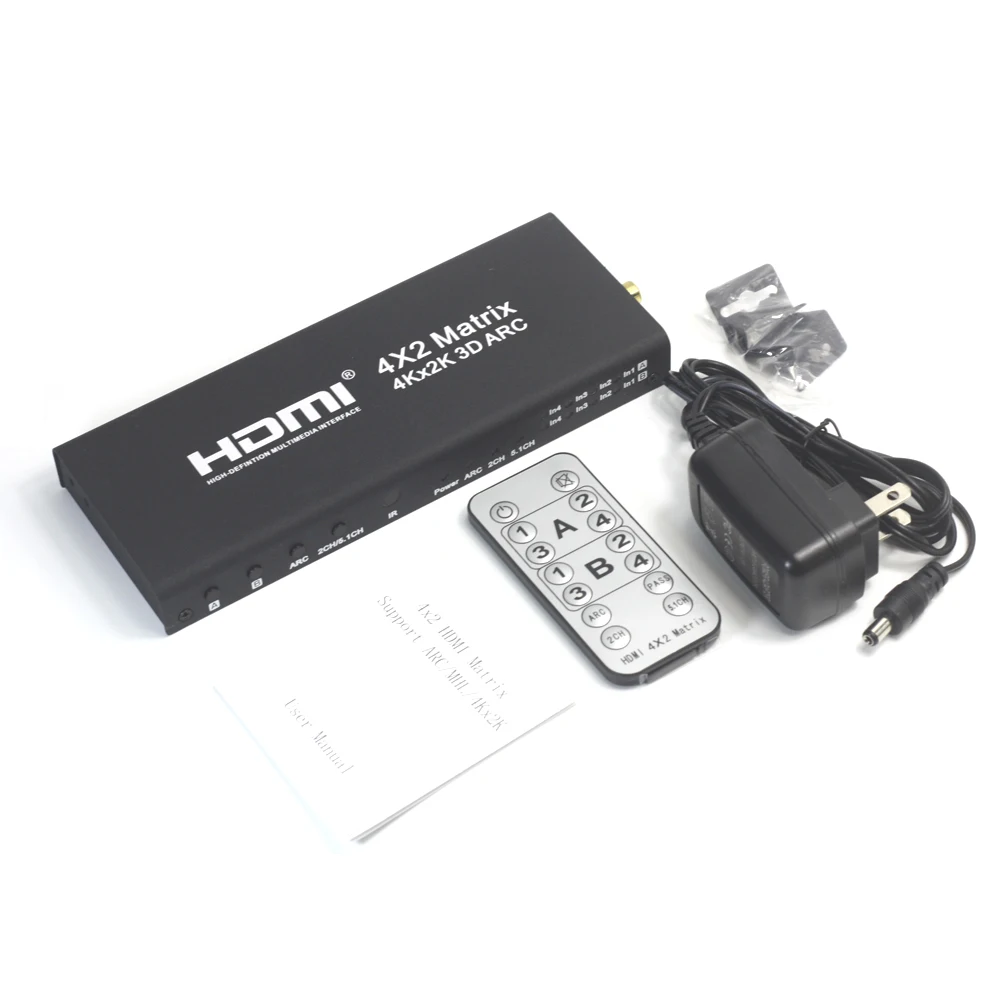

Package

• 1 * Adapter
