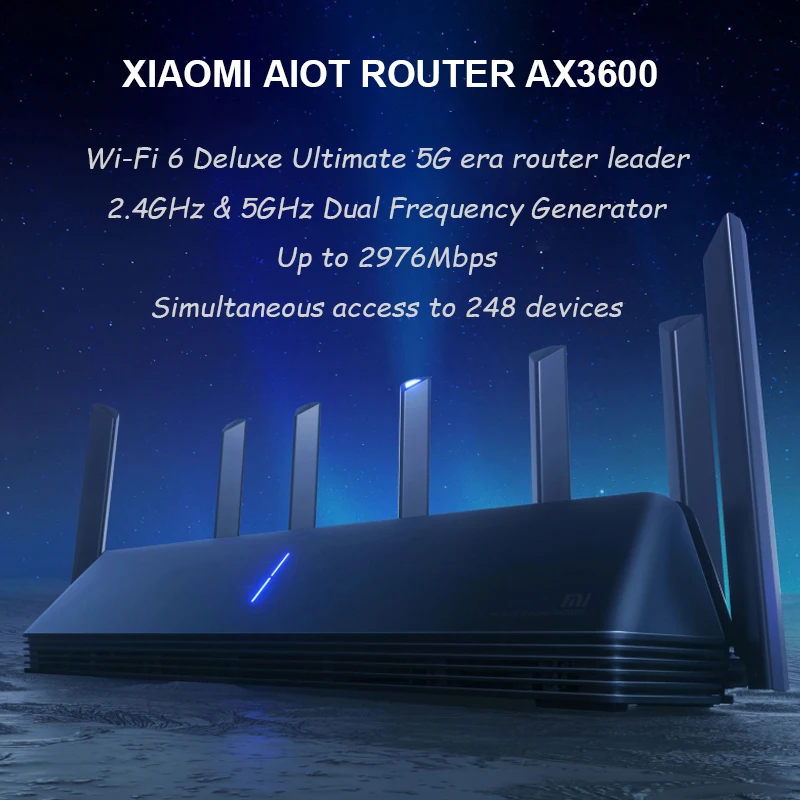

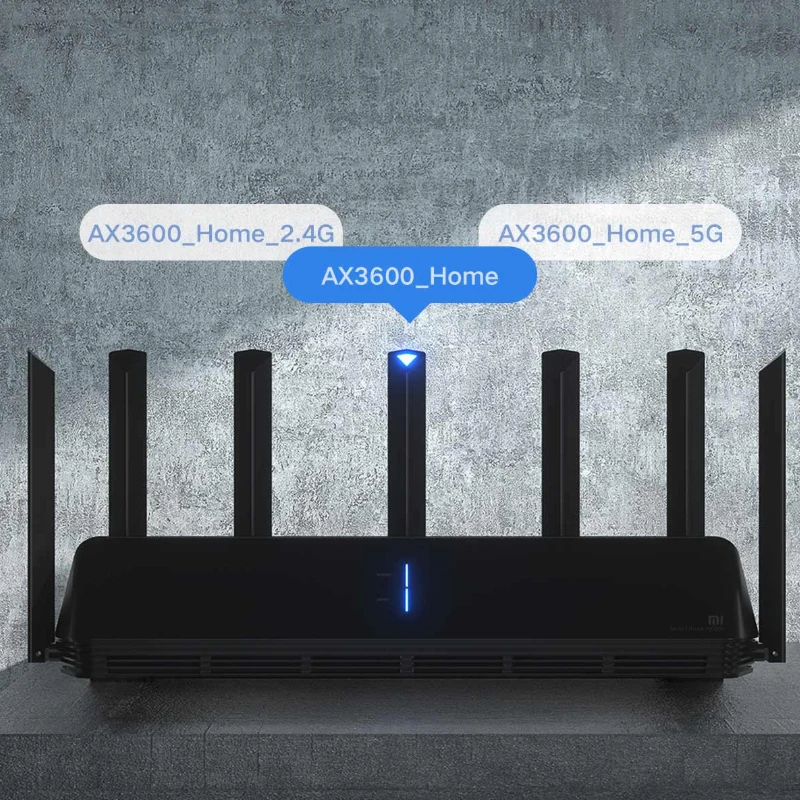

AX3600 Wireless WiFi 6 Home Gigabit 3000M Rate 5G Dual-band Optical Fiber High-speed Router for Xiaomi AIoT-Black
Sku
UGAL0010
$88.80
| Qty | 1 | 2 | 3 | 5 | 10 |
|---|---|---|---|---|---|
| Price | $90.38 | $89.74 | $88.53 | $87.48 | $86.62 |
Qty
Sales Ends In
- Buyer Protection
- Full Refound if you don't receive your order
- Full or Partial Refund,If the item is not as described
Technical Deteails
Brand: Xiaomi Mijia
CPU IPQ8071A 4Core A53 1GHz CPU
Network acceleration engine Dual core 1.7GHz NPU
ROM 256MB
Memory 512MB
2.4G Wi-Fi 2x2 (IEEE802.11ax, 574Mbps)
5G Wi-Fi 4x4 (IEEE802.11ax, 2402Mbps)

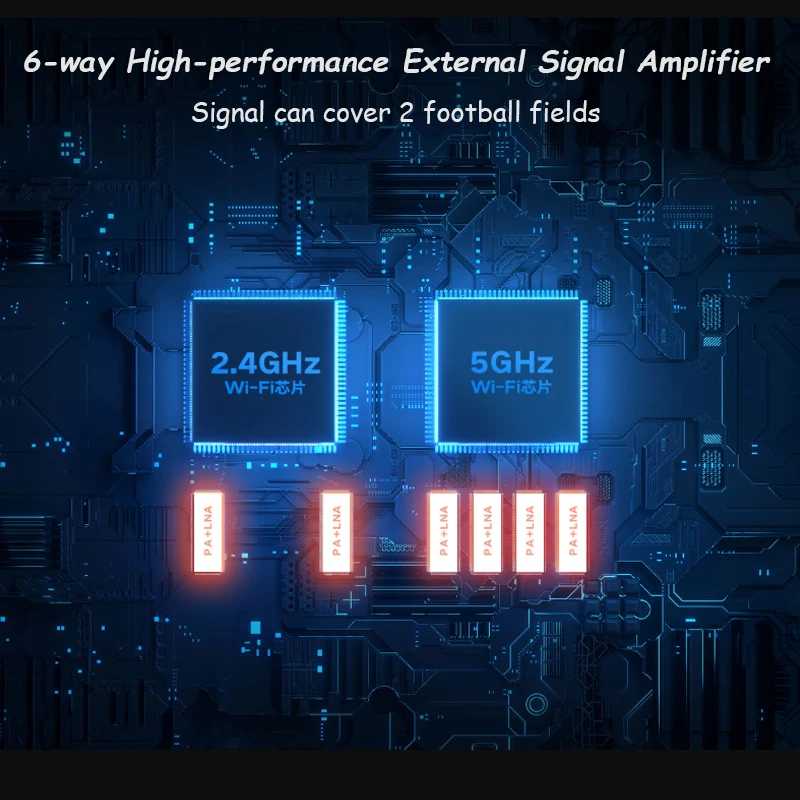

Antenna 6*External high gain antennas + 1*AloT Antenna
Heat dissipation Natural heat dissipation
Physical interface 1*10/100/1000 WAN (Auto MDI/ MDIX)
3*10/100/1000 LAN (Auto MDI/ MDIX)
LED Indicator light 1*SYSTEM indicators
1*INTERNET indicators
4*Network ports
1*AIoT light
Reset button 1*Reset button
Power input interface 1*Power input interface
Wireless standard IEEE 802.11a/b/g/n/ac/ax, IEEE802.3/3u/3ab
Certification standards GB/T9254-2008; GB4943.1-2011
Dual band 2.4GHz, 5GHz
Wireless channel 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 36,40,44,48,149,153,157,161,165
Modulation Mode 11b: DSSS: DBPSK(1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0~MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM.
Rate set: MCS0~MCS9 (4 streams supported)
11ax: MIMI-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM. Rate set: MCS0~MCS11(4 streams supported)
Operating system Intelligent router operating system MiWiFi ROM based on OpenWRT deep customization
Wireless security WPA-PSK / WPA2-PSK/ WPA3-SAE encryption, wireless access control (black and white list), hidden SSID, intelligent anti-scratch network
Management application Support Web, Android, iOS
Working environment
Working temperature: 0~40℃
Storage temperature: 10%~90%RH Non-condensing
Working humidity: -40~70℃
Storage humidity: 5%~90%RH Non-condensing
Package Included:
1 X Xiaomi AIoT router AX3600
1 X User manual
1 X Power line (12V/1.5A)
1 X Network cable
Note:The power supply of the product is only US-compliant, and other requires adapters!
| Brand | Xiaomi |
